30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) 62" BLOWER KIT MODEL NO. 30503 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

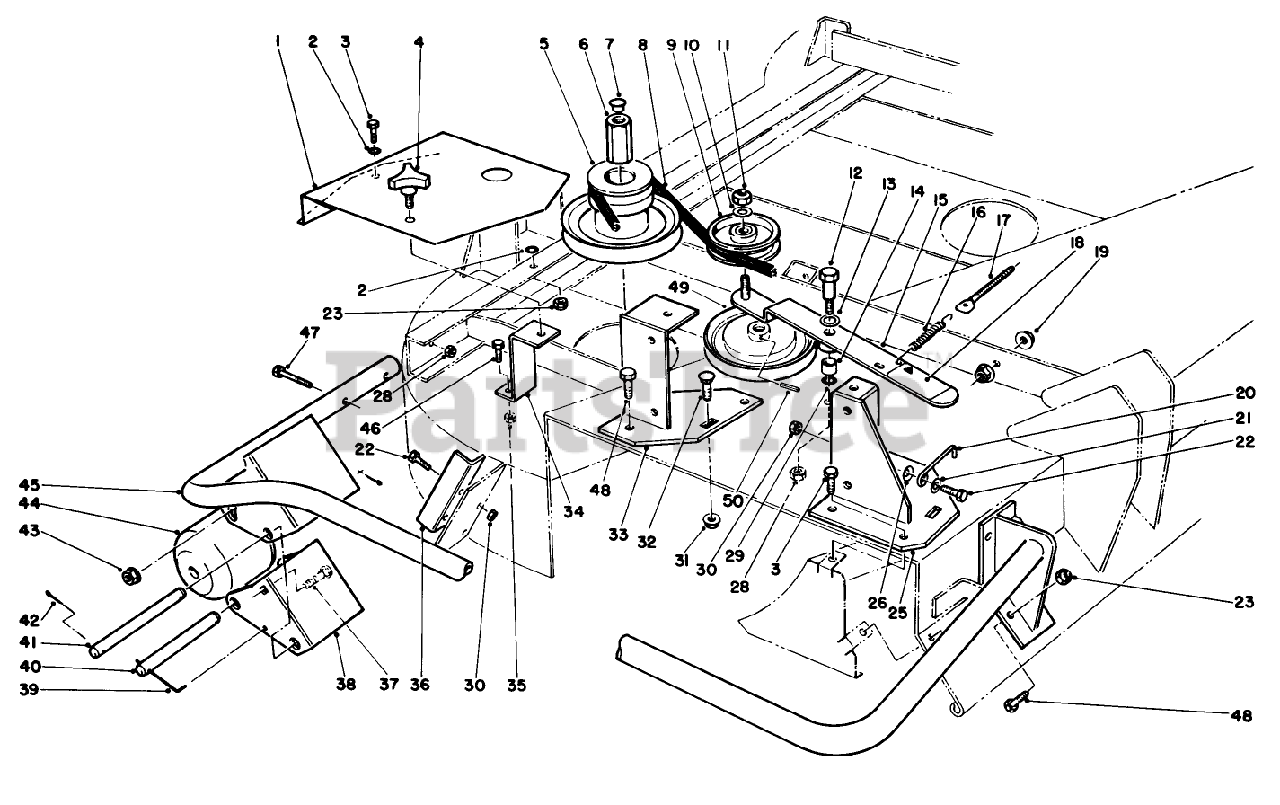

62" BLOWER KIT MODEL NO. 30503 (OPTIONAL) Parts Diagram

  • Title

1

Toro 77-5620

Cover-Deck, R.H.
(Superseded to 77-5620-01)

$81.99

$

Usually ships in 3-6 days

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 62-6520

KNOB

$7.99

$

In Stock, only 1 left!

0

5

Toro 77-5420

Pulley-Splined
(Superseded to 77-5420-03)

$239.99

$

Usually ships in 3-6 days

0

6

Toro 59-5190

NUT-PULLEY

$162.99

$

Usually ships in 3-6 days

0

7

Toro 59-5310

NUT-COVER

$1.49

$

Usually ships in 3-6 days

0

8

Toro 80-3590

V-BELT

$58.99

$

Usually ships in 3-6 days

0

9

Toro 56-4920

PULLEY-IDLER

$89.99

$

Usually ships in 3-6 days

0

10

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

11

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

12

Toro 80-3250

SCREW-PIVOT

$270.99

$

Usually ships in 3-6 days

0

13

Toro 257-10

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

14

Toro 256-206

BUSHING

$1.49

$

In Stock, only 2 left!

0

15

Toro 80-3310

Assembly-Arm (Incl. Ref. #14 & 18)

$153.99

$

Usually ships in 3-6 days

0

16

Toro 37-8880

SPRING-TRACTION

$17.99

$

Usually ships in 3-6 days

0

17

Toro 80-3560

ROD-THREADED

$115.99

$

Usually ships in 3-6 days

0

18

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 80-3570

HOOK

$28.99

$

Usually ships in 3-6 days

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

25

Toro 77-5520

BRACKET WA - RH

$181.99

$

Usually ships in 3-6 days

0

26

Toro 3290-451

WASHER-BELLEVILLE

$0.99

$

Usually ships in 3-6 days

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 257-9

WASHER-THRUST

$4.49

$

Usually ships in 3-6 days

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

31

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

33

Toro 77-5560

BRACKET-LH

$195.99

$

Usually ships in 3-6 days

0

34

Toro 77-5600

Support-Cover
(Superseded to 77-5600-01)

$

$

Not available

35

Toro 32146-18

Nut
(Superseded to 32153-1)

$3.99

$

In Stock, only 1 left!

0

36

Toro 80-3550

DEFLECTOR STOP B

$24.99

$

Usually ships in 3-6 days

0

37

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

38

Toro 80-3450

Bracket-Roller
(Superseded to 80-3450-03)

$74.99

$

Usually ships in 3-6 days

0

39

Toro 80-3230

PIN - SPECIAL

$92.99

$

Usually ships in 3-6 days

0

40

Toro 80-3440

SHAFT

$78.99

$

Usually ships in 3-6 days

0

41

Toro 80-3200

PIN

$51.99

$

Usually ships in 3-6 days

0

42

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

43

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

44

Toro 80-3580

ROLLER - 4" DIA

$

$

Not available

45

Toro 77-6940

Bumper
(Superseded to 77-6940-03)

$416.99

$

Usually ships in 3-6 days

0

46

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

47

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

48

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 56-4810

Pulley-Gear Box
(Superseded to 56-4810-03)

$270.99

$

Usually ships in 3-6 days

0

50

Toro 32121-8

PIN-ROLL, SLOTTED

$1.49

$

Usually ships in 3-6 days

0
