30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) 62" BLOWER KIT MODEL NO. 30503 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

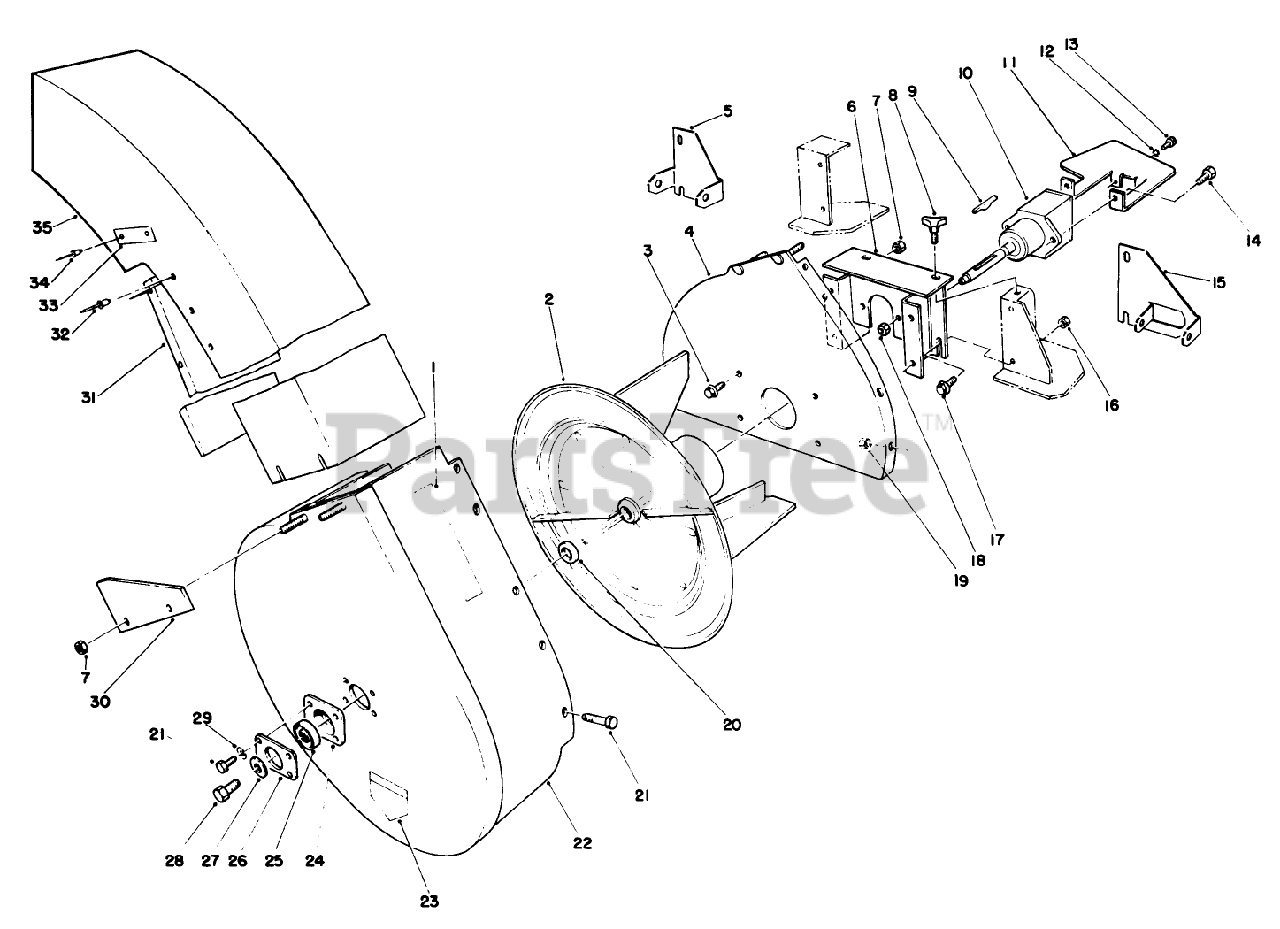

62" BLOWER KIT MODEL NO. 30503 (OPTIONAL) Parts Diagram

  • Title

1

Toro 82-5510

DECAL

$8.49

$

Usually ships in 3-6 days

0

2

Toro 56-4780

Impeller
(Superseded to 56-4780-03)

$1068.99

$

Usually ships in 3-6 days

0

3

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

4

Toro 77-5820

Plate-Mounting
(Superseded to 77-5820-03)

$350.99

$

Usually ships in 3-6 days

0

5

Toro 80-2820

Bracket-Pivot LH
(Superseded to 80-2820-03)

$61.99

$

Usually ships in 3-6 days

0

6

Toro 77-5440

Mount-Blower
(Superseded to 77-5440-03)

$

$

Not available

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 62-6520

KNOB

$8.49

$

In Stock, only 1 left!

0

9

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

10

Toro 53-4530

Asm-Gear Box
(Superseded to 53-4530-03)

$1965.99

$

Usually ships in 3-6 days

0

11

Toro 77-5630

Cover-Gear Box
(Superseded to 77-5630-03)

$

$

Not available

12

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 80-2810

Bracket-Pivot RH
(Superseded to 80-2810-03)

$67.99

$

Usually ships in 3-6 days

0

16

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

17

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

18

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 63-9710

SPACER-BEARING

$13.99

$

In Stock, only 1 left!

0

21

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 13-0269

Housing-Blower (Incl. Ref. #1 & 23)

$707.99

$

Usually ships in 3-6 days

0

23

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

24

Toro 37-6730

CUP-BEARING

$17.99

$

In Stock, only 2 left!

0

25

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

26

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 3 left!

0

27

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

28

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

29

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$21.99

$

Usually ships in 3-6 days

0

31

Deflector-Chute

$

$

Not available

32

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

33

Toro 80-4670

PLATE - WARNING
(Superseded to 107-2926)

$31.99

$

Usually ships in 3-6 days

0

34

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

35

Toro 80-3720

Chute Assembly (Incl. Ref. #32-34)

$500.99

$

Usually ships in 3-6 days

0

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

Note: Heavy duty spring no. 66-8390 used on discharge side of cutting unit with blower.

$47.99

$

Usually ships in 3-6 days

0

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

Note: Not illustrated

$47.99

$

Usually ships in 3-6 days

0
