30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) 52" BLOWER KIT MODEL NO. 30502 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

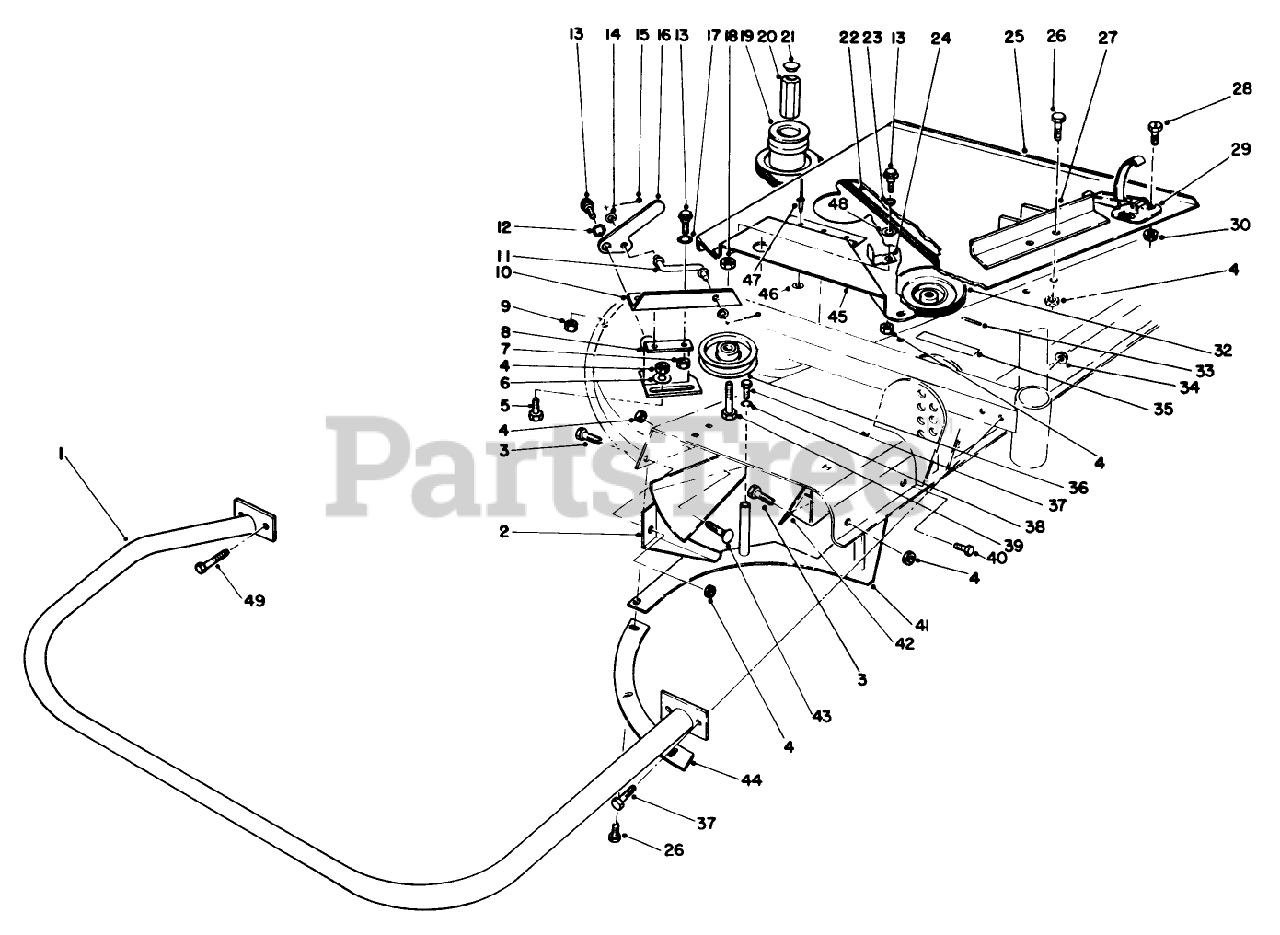

52" BLOWER KIT MODEL NO. 30502 (OPTIONAL) Parts Diagram

  • Title

1

Toro 70-8050

Bumper
(Superseded to 70-8050-03)

$325.99

$

Usually ships in 3-6 days

0

2

Toro 43-1060

Deflector Rear
(Superseded to 59-5350-01)

$275.99

$

Usually ships in 3-6 days

0

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3256-56

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 59-4920

Bracket-Idler
(Superseded to 59-4920-01)

$291.99

$

Usually ships in 3-6 days

0

9

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

10

Toro 59-4930

Slide-Idler
(Superseded to 59-4930-01)

$95.99

$

Usually ships in 3-6 days

0

11

Toro 59-4940

Idler Rod
(Superseded to 59-4940-01)

$176.99

$

Usually ships in 3-6 days

0

12

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

13

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

14

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 56-4900

Lever-Idler
(Superseded to 56-4900-01)

$35.99

$

Usually ships in 3-6 days

0

17

Toro 23-1120

WASHER

$21.99

$

Usually ships in 3-6 days

0

18

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

19

Toro 59-5170

Pulley (Splined)
(Superseded to 59-5170-03)

$603.99

$

Usually ships in 3-6 days

0

20

Toro 59-5190

NUT-PULLEY

$179.99

$

Usually ships in 3-6 days

0

21

Toro 59-5310

NUT-COVER

$1.99

$

Usually ships in 3-6 days

0

22

Toro 59-5270

V-BELT

$37.99

$

Usually ships in 3-6 days

0

23

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

24

Toro 59-5290

Latch
(Superseded to 59-5290-01)

$34.99

$

Usually ships in 3-6 days

0

25

Toro 77-0180

Cover Assembly RH (Incl. Ref. #4, 13, 23, 24, 28-30 & 45-48)

$455.99

$

Usually ships in 3-6 days

0

26

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 77-0160

Bracket-Spring
(Superseded to 77-0160-01)

$82.99

$

Usually ships in 3-6 days

0

28

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

29

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

30

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

31

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

32

Toro 56-4810

Pulley-Gear Box
(Superseded to 56-4810-03)

$283.99

$

Usually ships in 3-6 days

0

33

Toro 32121-8

PIN-ROLL, SLOTTED

$1.49

$

Usually ships in 3-6 days

0

34

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

35

Toro 43-1120

WARNING DECAL

$

$

Not available

36

Toro 56-4920

PULLEY-IDLER

$88.99

$

Usually ships in 3-6 days

0

37

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

38

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

39

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

40

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

41

Toro 44-7770

Rear Shelf
(Superseded to 44-7770-01)

$550.99

$

Usually ships in 3-6 days

0

42

Toro 67-7540

Deflector-Front
(Superseded to 92-6297-01)

$142.99

$

Usually ships in 3-6 days

0

43

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

44

Toro 44-7780

Shelf-RH
(Superseded to 44-7780-01)

$34.99

$

Usually ships in 3-6 days

0

45

Toro 77-0130

Cover-Pulley
(Superseded to 77-0130-01)

$212.99

$

Usually ships in 3-6 days

0

46

Toro 3256-13

WASHER
(Superseded to 3256-12)

$1.49

$

Usually ships in 3-6 days

0

47

Toro 3290-55

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

48

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

49

Toro 325-32

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0

Toro 32128-23

NUT-HF

Note: Not illustrated

$1.99

$

In Stock, Qty 14

0

Toro 32128-23

NUT-HF

Note: Required on older units for mounting Bumper No. 70-8050 to carrier frame.

$1.99

$

In Stock, Qty 14

0
