30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) ENGINE AIR HOUSING-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

Groundsmaster Rear-Engine Riding Mower

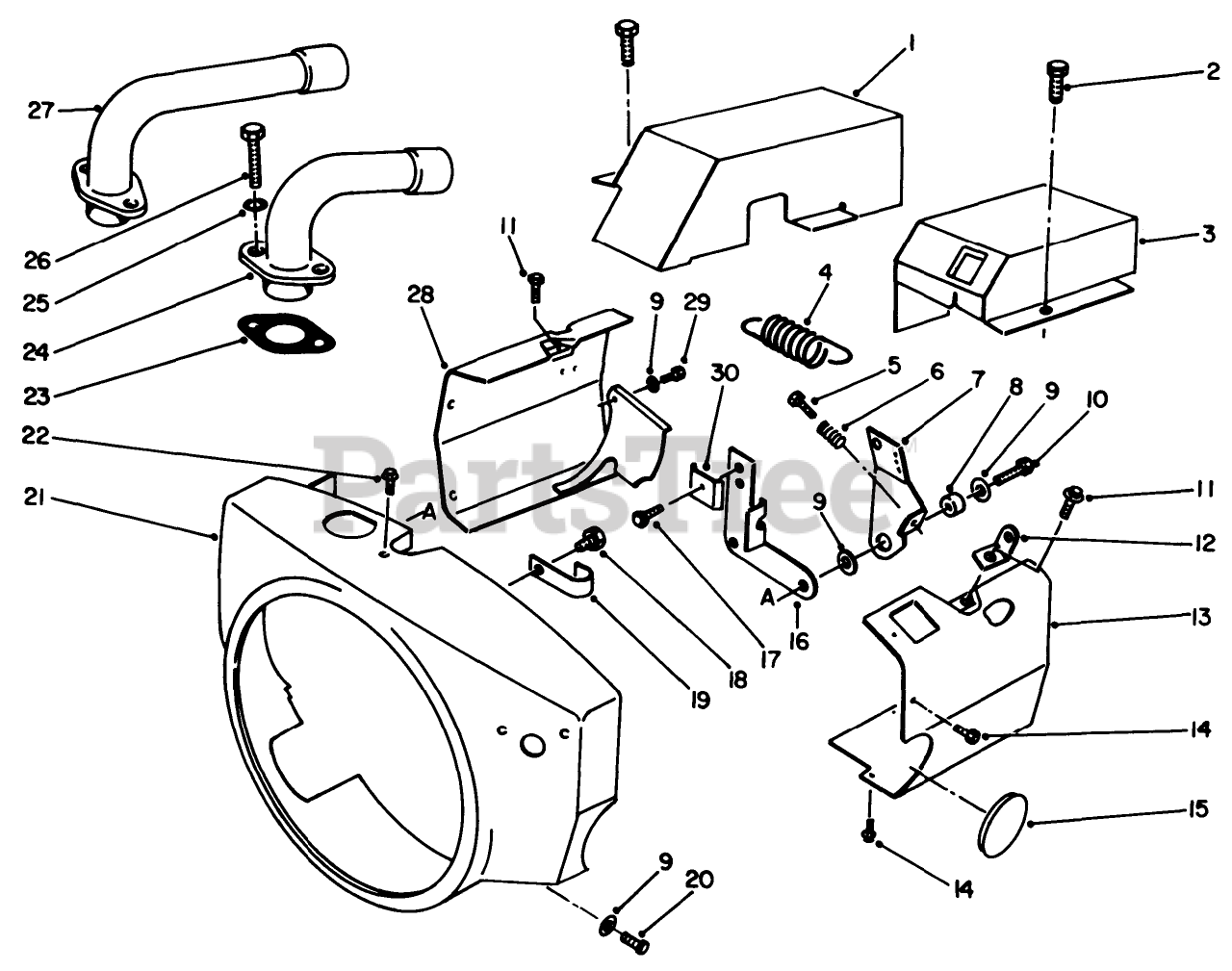

ENGINE AIR HOUSING-ENGINE, ONAN MODEL NO. P220G, TYPE NO. 1/10808C Parts Diagram

  • Title
1

Toro 72-3970

LH EXHAUST TUBE COVERR

$

$

Not available

2

Toro 59-1090

HX WSHR HD CAPSCREW

$

$

Not available

3

Toro 72-3980

RH EXHAUST TUBE COVERR

$

$

Not available

4

Toro 57-9100

SPRING

$

$

Not available

5

Toro 59-1030

SCREW-TAP

$

$

Not available

6

Toro 59-0430

SPRING

$

$

Not available

7

$

$

Not available

8

Toro 57-9120

BUSHING

$8.49

$

Usually ships in 3-6 days

0

9

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 59-1010

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

11

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 18

0

12

Toro 59-0630

Bracket-Lift
(Superseded to 71-6080)

$27.99

$

Usually ships in 3-6 days

0

13

Toro 71-5940

CYL AIR HOUSING ASSY

$256.99

$

Usually ships in 3-6 days

0

14

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

15

Toro 71-6150

AIR SEAL GROMMET

$

$

Not available

16

Toro 57-9150

BRACKET-GOVERNOR

$

$

Not available

17

Toro 72-3900

SCREW-TAPPING

$7.99

$

Usually ships in 3-6 days

0

18

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

19

Toro 71-6220

CLIP-WIRE

$

$

Not available

20

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

21

Toro 71-5930

Housing-Blower
(Superseded to NN10769)

$

$

Not available

22

Toro 59-0970

HEX HD CAPSCREW

$6.49

$

Usually ships in 3-6 days

0

23

Toro 57-9216

Gasket
(Superseded to 57-9210)

$17.99

$

In Stock, Qty 6

0

24

Toro 57-9230

EXHAUST TUBE

$

$

Not available

25

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 57-9240

EXHAUST TUBE

$

$

Not available

28

Toro 71-5910

Housing-L.H.
(Superseded to 92-0957)

$148.99

$

Usually ships in 3-6 days

0

29

Toro 59-0980

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

30

$

$

Not available
