30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) ELECTRICAL SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

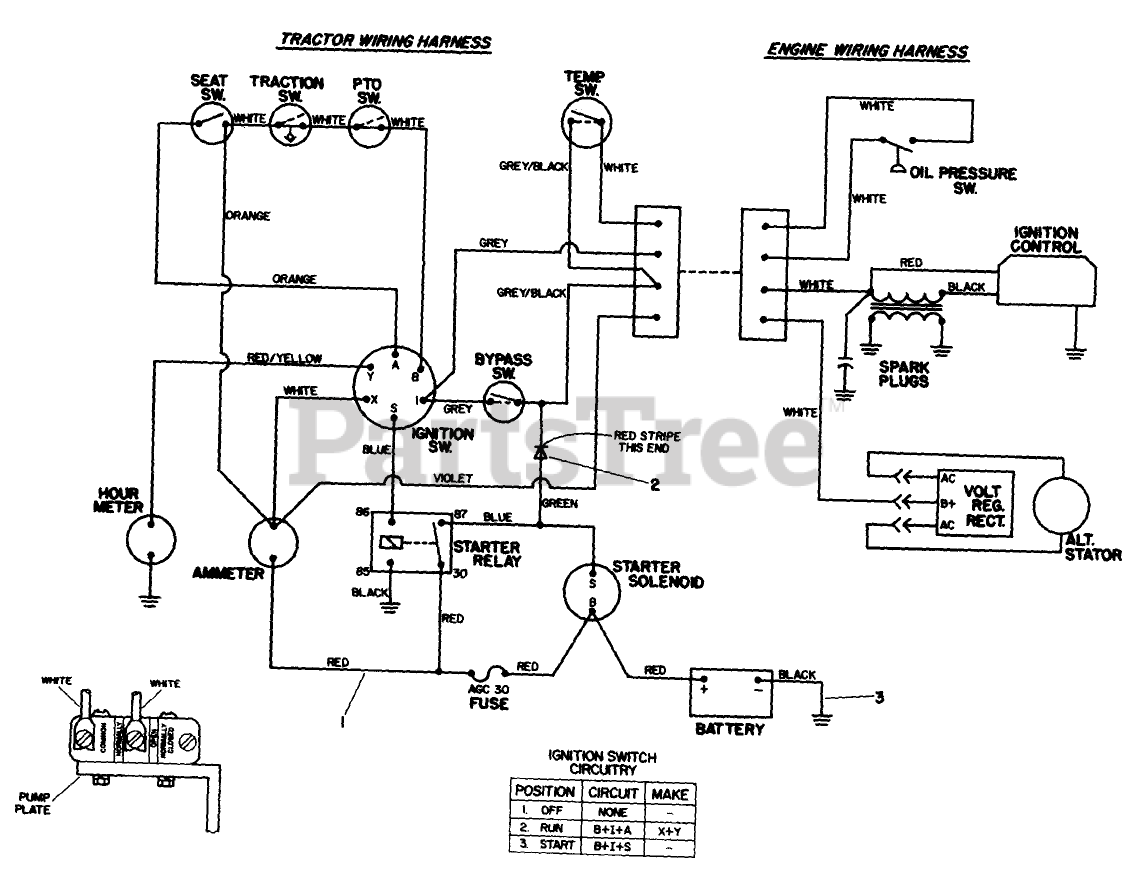

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 70-1540

Wire Harness (Incl. Ref. #2)

$

$

Not available

2

Toro 67-7130

DIODE

$50.99

$

Usually ships in 3-6 days

0

3

Toro 27-5090

BATTERY GROUND WIRE

$52.99

$

Usually ships in 3-6 days

0
