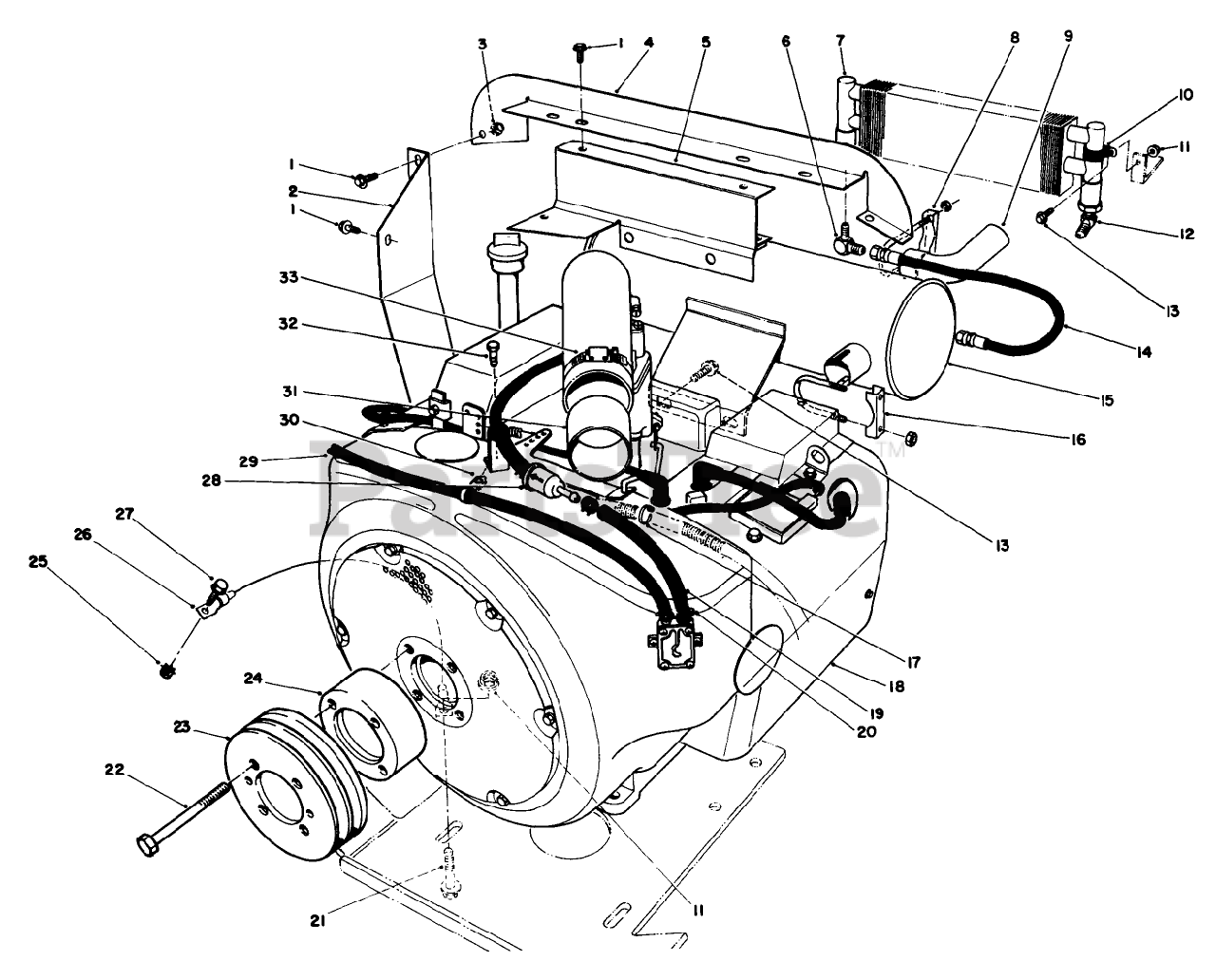

30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

2

Toro 44-8690

Shield-Heat
(Superseded to 44-8690-03)

$

$

Not available

3

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

4

Toro 44-8710

Shroud-Engine
(Superseded to 44-8710-03)

$

$

Not available

5

Toro 44-9010

Bracket-Shield Support
(Superseded to 44-9010-03)

$

$

Not available

6

Toro 353-428

90DEG JIC FITTING

$

$

Not available

7

Toro 22-7320

OIL COOLER

$

$

Not available

8

Toro 2112-9

CLAMP

$9.99

$

Usually ships in 3-6 days

0

9

Toro 72-7930

EXTENSION

$

$

Not available

10

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 353-714

ELBOW

$38.99

$

Usually ships in 3-6 days

0

13

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

14

Toro 44-9020

OIL HOSE ASM

$

$

Not available

15

Toro 72-7920

MUFFLER

$817.99

$

Usually ships in 3-6 days

0

Toro 46-2390

SPARK ARRESTOR MUFFLER

$

$

Not available

16

Toro 2412-37

MUFFLER CLAMP

$5.99

$

Usually ships in 3-6 days

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 70-2590

Engine (Onan Model No. P220G-I/10808C
(Superseded to 95-2828)

$

$

Not available

19

Toro 59-0710

Hose
(Superseded to 82-1100)

$

$

Not available

20

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

21

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

22

Toro 3235-23

SCREW

$8.49

$

Usually ships in 3-6 days

0

23

Toro 43-5340

Pulley-Engine
(Superseded to 43-5340-03)

$443.99

$

Usually ships in 3-6 days

0

24

Toro 71-0700

PULLEY SPACER

$249.99

$

Usually ships in 3-6 days

0

25

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

26

Toro 10-7160

WIRE ASM

$68.99

$

Usually ships in 3-6 days

0

27

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

28

Toro 71-5960

FILTER-FUEL

$32.99

$

In Stock, Qty 6

0

29

Toro 71-3370

HOSE
(Superseded to 110-3258)

$27.99

$

Usually ships in 3-6 days

0

30

Toro 2412-71

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

31

Toro 44-9450

AIR CLEANER ADAPTER

$

$

Not available

32

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

33

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0
