30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) DELUXE SEAT KIT MODEL NO. 30772 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

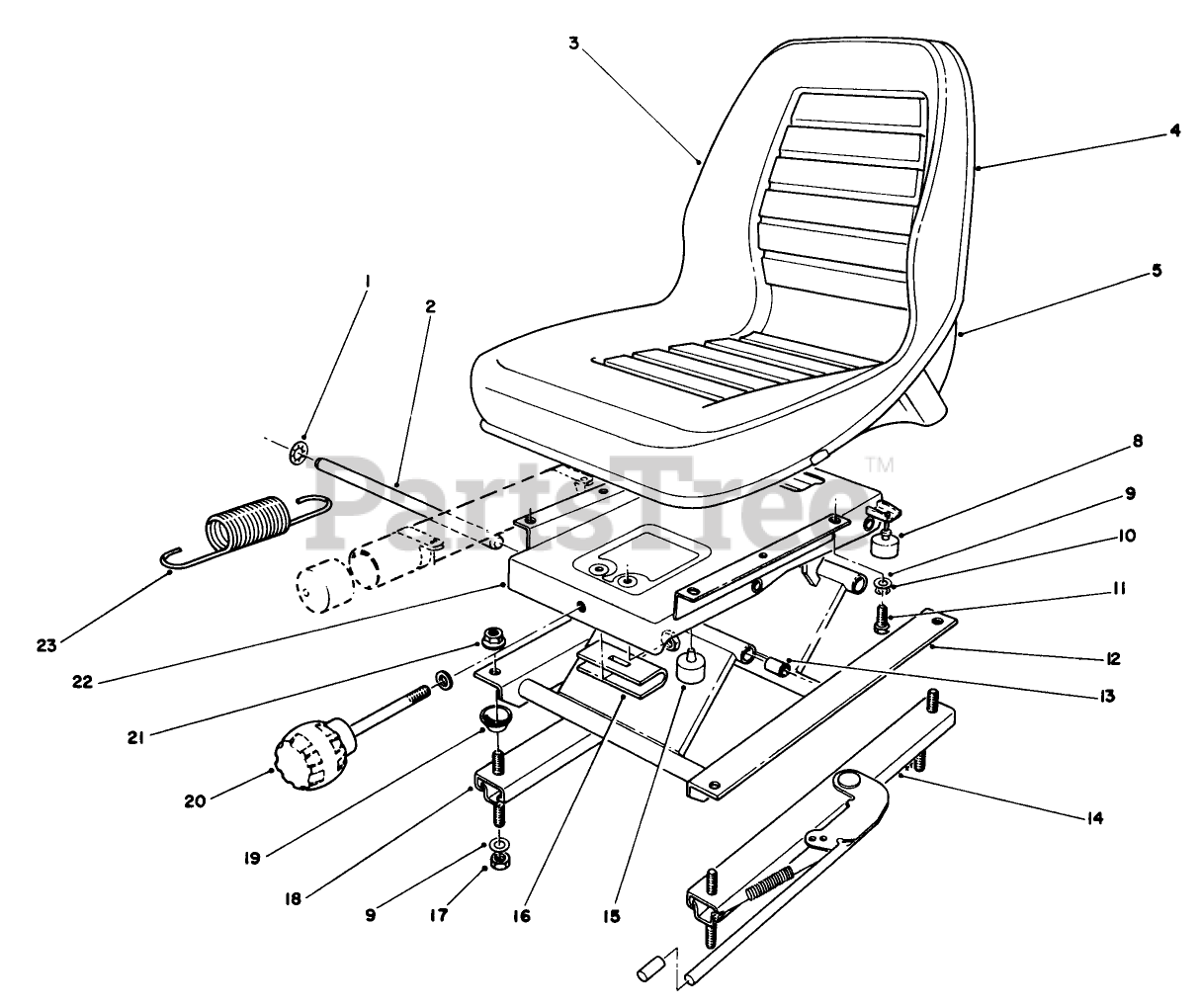

DELUXE SEAT KIT MODEL NO. 30772 Parts Diagram

  • Title

1

Toro 66-8560

NUT-PUSH

$7.49

$

Usually ships in 3-6 days

0

2

Toro 76-1910

SHAFT-PIVOT

$

$

Not available

3

Toro 67-9550

Cushion-Seat
(Superseded to 92-6533)

$356.99

$

Usually ships in 3-6 days

0

4

Toro 66-5400

Assembly-Seat (Incl. Ref. #3 & 5)
(Superseded to 104-4620)

$

$

Not available

5

Toro 67-9560

Base
(Superseded to 92-6534)

$

$

Not available

8

Toro 76-2940

BUMPER

$11.99

$

Usually ships in 3-6 days

0

9

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 66-8610

FRAME-LOWER

$

$

Not available

13

Toro 76-1920

SLEEVE-BEARING

$

$

Not available

14

Toro 66-8510

ADJUSTER W / HANDLE
(Superseded to 108-6702)

$271.99

$

Usually ships in 3-6 days

0

15

Toro 66-8520

BUMPER-DOWNSTOP

$42.99

$

Usually ships in 3-6 days

0

16

Toro 66-8540

SPRING HANGER

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

18

Toro 66-8530

ADJUSTER
(Superseded to 108-6703)

$208.99

$

Usually ships in 3-6 days

0

19

Toro 66-9290

SPACER-SUSPENSION

$4.99

$

Usually ships in 3-6 days

0

20

Toro 76-1930

KNOB-ADJUSTER, TENSION
(Superseded to 106-1031)

$88.99

$

Usually ships in 3-6 days

0

21

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

22

Toro 66-8600

FRAME-UPPER

$

$

Not available

23

Toro 76-1940

SPRING-EXTENSION

$

$

Not available
