30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) CYLINDER BLOCK ASSY. ONAN NO. P220G, TYPE I/10808C Parts Diagram

Groundsmaster Rear-Engine Riding Mower

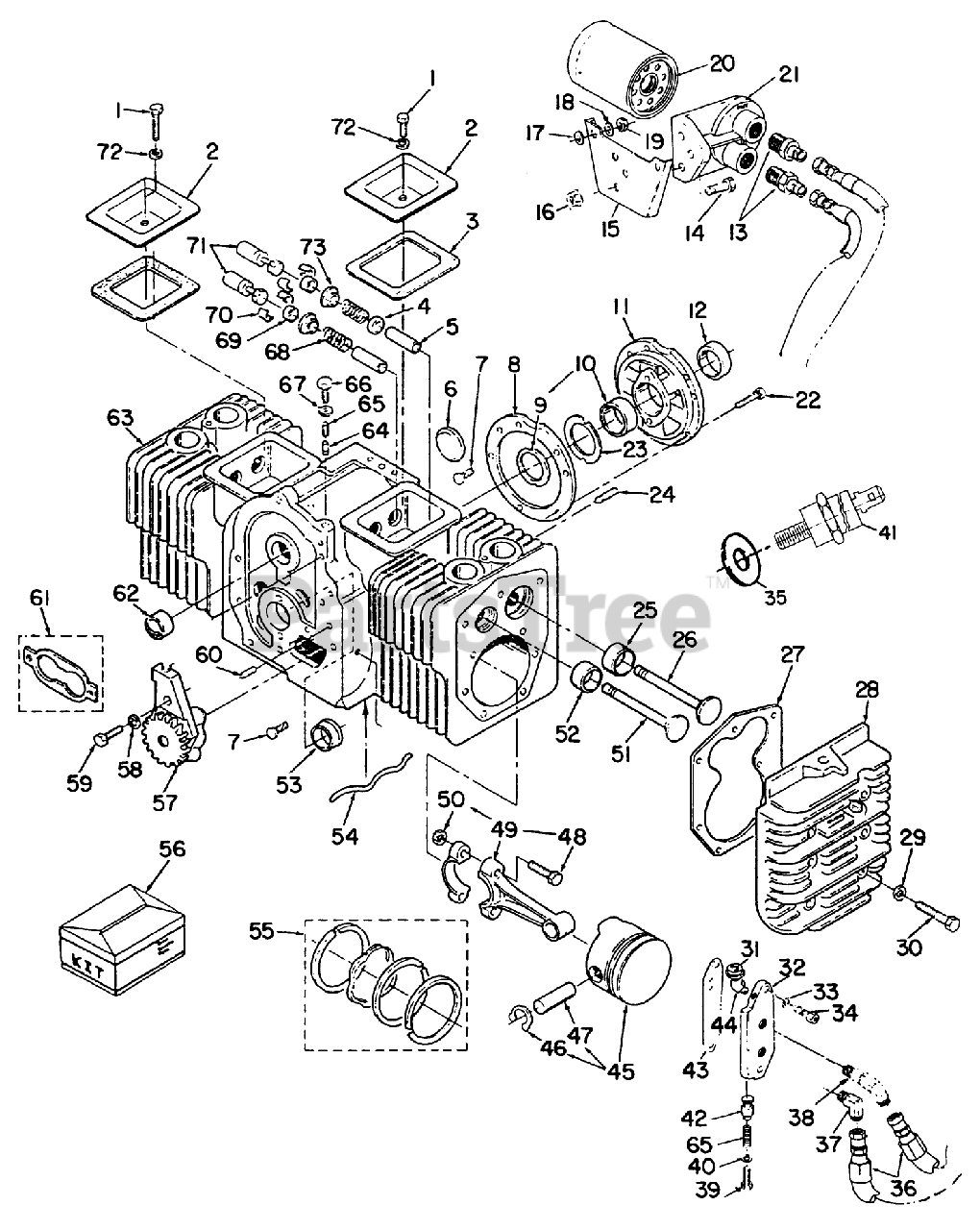

CYLINDER BLOCK ASSY. ONAN NO. P220G, TYPE I/10808C Parts Diagram

  • Title

1

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 71-5850

Cover-Valve
(Superseded to NN10821)

$

$

Not available

3

Toro 57-8280

GASKET

$11.99

$

In Stock, only 1 left!

0

4

Toro 71-6180

VALVE STEM SEAL

$18.99

$

Usually ships in 3-6 days

0

5

Toro 71-6250

EXHAUST VALVE GUIDE

$

$

Not available

5

Toro 71-6260

INTAKE VALVE GUIDE

$

$

Not available

6

Toro 57-9690

PLUG

$8.49

$

Usually ships in 3-6 days

0

7

Toro 59-0730

PIN-DRIVE

$

$

Not available

8

Toro 57-8010

GASKET

$28.99

$

In Stock, only 2 left!

0

9

Toro 57-8160

WASHER

$

$

Not available

10

Toro 57-8050

Bearing-Std. Crankshaft (Incl. Ref. #9)

$236.99

$

Usually ships in 3-6 days

0

10

Toro 59-0020

Bearing-Crankshaft .002" undersize (Incl. Ref. #9)

$

$

Not available

10

Toro 57-8060

Bearing-Crankshaft .010" undersize (Incl. Ref. #9)

$

$

Not available

10

Toro 59-0030

Bearing-Crankshaft .020" undersize (Incl. Ref. #9)

$

$

Not available

10

Toro 59-0040

Bearing-Crankshaft .030" undersize (Incl. Ref. #9)

$

$

Not available

11

Toro 57-8040

Plate-Bearing
(Superseded to 82-0020)

$

$

Not available

12

Toro 57-9590

SEAL

$41.99

$

In Stock, only 2 left!

0

13

Toro 59-0660

MALE CONNECTOR

$

$

Not available

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 59-0300

BRACKET

$103.99

$

Usually ships in 3-6 days

0

16

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

17

Toro 59-0840

WASHER

$

$

Not available

18

Toro 59-0860

WASHER

$

$

Not available

19

Toro 3217-4

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

20

Toro 57-8530

FILTER-OIL
(Superseded to 108-3817)

$10.99

$

In Stock, only 3 left!

0

21

Toro 57-8540

BASE ASM

$

$

Not available

22

Toro 71-6240

CAPSCREW

$

$

Not available

23

Toro 57-8170

SHIM

$8.49

$

Usually ships in 3-6 days

0

24

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

25

Toro 59-0050

STD INSERT

$

$

Not available

25

Toro 59-0060

Insert-Valve Seat .002" oversize
(Superseded to 59-0080)

$

$

Not available

25

Toro 59-0070

Plug-Breather Hole

$

$

Not available

25

Toro 59-0080

INSERT .010

$

$

Not available

25

Toro 59-0090

Insert-Valve Seat .025" oversize

$

$

Not available

26

Toro 71-5770

INTAKE VALVE

$

$

Not available

27

Toro 57-8830

GASKET KIT

$

$

Not available

28

Toro 71-5820

Head-Cylinder R.H.
(Superseded to 59-0180)

$

$

Not available

29

Toro 57-9770

WASHER

$

$

Not available

30

Toro 71-6270

CAPSCREW

$

$

Not available

31

Toro 57-9490

SWITCH

$

$

Not available

32

Toro 57-8510

Adapter,Oil Filter

$

$

Not available

33

Toro 57-9750

WASHER

$

$

Not available

34

Toro 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

35

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 57-9220

Hose-Oil
(Superseded to 71-5980)

$14.99

$

In Stock, only 3 left!

0

37

Toro 59-0670

MALE CONNECTOR

$

$

Not available

38

Toro 59-0680

MALE CONNECTOR

$87.99

$

Usually ships in 3-6 days

0

39

Toro 3211-27

SCREW-HH

$

$

Not available

40

Toro 57-9760

WASHER

$

$

Not available

41

Toro 72-3960

HI-TEMP CUT-OFF SWITCH

$

$

Not available

42

Toro 57-8470

PLUNGER

$

$

Not available

43

Toro 57-8520

Gasket
(Superseded to 82-0520)

$

$

Not available

44

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

45

Toro 57-8350

Piston-Std. (Incl. Ref. #46 & 47)
(Superseded to 82-1800)

$

$

Not available

45

Toro 59-0190

Piston-.005" oversize (Incl. Ref. #46 & 47)

$

$

Not available

45

Toro 57-8360

Piston-.010" oversize (Incl. Ref. #46 & 47)
(Superseded to 92-0902)

$

$

Not available

45

Toro 57-8370

Piston-.020" oversize (Incl. Ref. #46 & 47)
(Superseded to 92-0903)

$

$

Not available

45

Toro 59-0200

Piston-.030" oversize (Incl. Ref. #46 & 47)
(Superseded to 92-0904)

$

$

Not available

45

Toro 59-0210

Piston-.040" oversize (Incl. Ref. #46 & 47)

$

$

Not available

46

Toro 57-9720

Piston Pin

$

$

Not available

47

Toro 71-6310

PISTON PIN

$

$

Not available

48

Toro 57-8410

BOLT

$

$

Not available

49

Toro 57-8420

Rod-Connecting Std. (Incl. Ref. #48 & 50)

$

$

Not available

49

Toro 57-8430

Rod-Conn. .010 undersize (Incl. Ref. #48 & 50)

$

$

Not available

49

Toro 57-8440

Rod-Conn. .020 undersize (Incl. Ref. #48 & 50)

$282.99

$

Usually ships in 3-6 days

0

49

Toro 59-0250

Rod-Conn. .030 undersize (Incl. Ref. #48 & 50)

$

$

Not available

50

Toro 57-9790

NUT

$

$

Not available

51

Toro 71-5780

EXHAUST VALVE

$

$

Not available

52

Toro 59-0100

STD INSERT

$

$

Not available

53

Toro 57-8020

KIT-BEARING, SLEEVE
(Superseded to 57-8030)

$

$

Not available

53

Toro 57-9360

BEARING-CRANKSHAFT

$

$

Not available

53

Toro 57-8030

BEARING KIT (.010)

$

$

Not available

53

Toro 57-9800

BEARING-CRANKSHAFT

$

$

Not available

53

Toro 59-0010

BEARING-CRANKSHAFT

$

$

Not available

54

Toro 59-0290

OIL TUBE

$

$

Not available

55

Toro 57-8380

RING SET

$

$

Not available

55

Toro 59-0220

Piston Ring Set .005" Oversize

$

$

Not available

55

Toro 57-8390

RING SET

$129.99

$

Usually ships in 3-6 days

0

55

Toro 57-8400

Piston Ring Set .020" Oversize

$

$

Not available

55

Toro 59-0230

RING SET .030 OS

$

$

Not available

55

Toro 59-0240

Ring Set-Piston .040" oversize

$

$

Not available

56

Toro 71-6290

ENGINE GASKET KIT

$

$

Not available

57

Toro 57-8480

PUMP

$

$

Not available

58

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

59

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

60

Toro 59-0750

PIN-GEAR COVER

$7.99

$

Usually ships in 3-6 days

0

61

Toro 57-8460

GASKET KIT

$

$

Not available

62

Toro 57-8000

SLEEVE-BEARING

$153.99

$

Usually ships in 3-6 days

0

63

Toro 71-5760

Block-Short
(Superseded to 114-2876)

$12052.99

$

Usually ships in 3-6 days

0

64

Toro 57-8470

PLUNGER

$

$

Not available

65

Toro 57-8500

Spring, Bypass
(Superseded to 59-0280)

$

$

Not available

66

Toro 59-0910

SCREW-HH

$

$

Not available

67

Toro 57-9760

WASHER

$

$

Not available

68

Toro 71-5790

VALVE SPRING

$

$

Not available

69

Toro 71-5830

VALVE CAP

$

$

Not available

70

Toro 71-5840

Lock-Valve Spring
(Superseded to NN10082)

$

$

Not available

71

Toro 57-8450

TAPPET

$

$

Not available

71

Toro 59-0260

TAPPET .002 OS

$

$

Not available

71

Toro 59-0270

.005" Oversize
(Superseded to 59-0260)

$

$

Not available

72

Toro 57-9740

WASHER

$

$

Not available

73

Toro 71-5800

VALVE SPRING RETAINER

$

$

Not available

Toro 71-6300

Kit-Valve Grinding
(Superseded to 57-9370)

$

$

Not available
