30798 (220) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) 62" WEIGHT TRANSFER MODEL NO. 30703 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

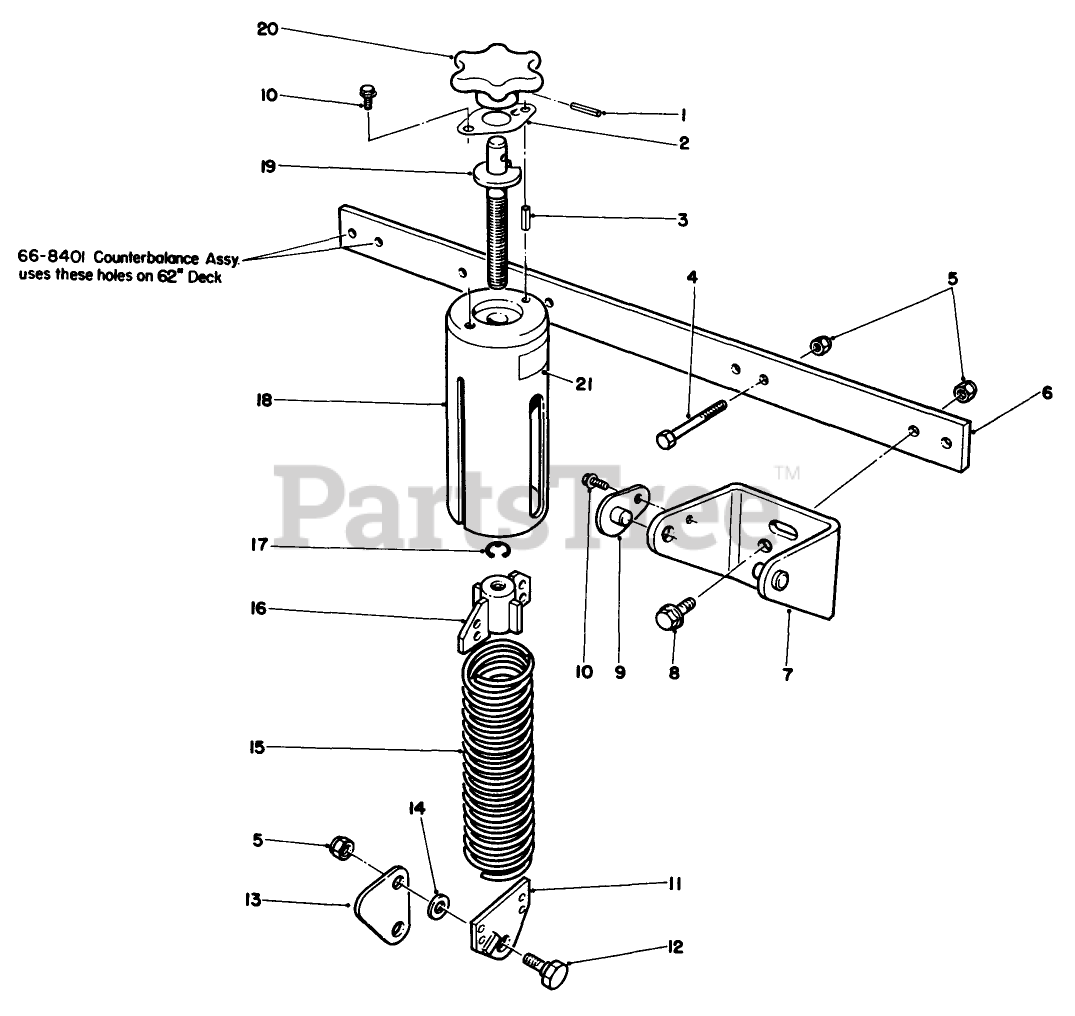

62" WEIGHT TRANSFER MODEL NO. 30703 Parts Diagram

  • Title

1

Toro 32121-12

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

2

Toro 66-8330

DETENT SPRING

$

$

Not available

3

Toro 32121-13

ROLL PIN

$

$

Not available

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

6

Toro 66-8210

Adapter
(Superseded to 66-8210-01)

$125.99

$

Usually ships in 3-6 days

0

7

Toro 66-8220

MOUNTING BRACKET WA R

$

$

Not available

8

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

9

Toro 66-8250

LOCK PIN WA

$

$

Not available

10

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

11

Toro 66-8420

End Spring
(Superseded to 66-8420-03)

$70.99

$

Usually ships in 3-6 days

0

12

Toro 46-3380

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

13

Toro 66-8440

Link
(Superseded to 66-8440-01)

$10.99

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 66-8390

Spring-Extension
(Superseded to 66-8390-03)

$47.99

$

Usually ships in 3-6 days

0

Toro 66-8410

Spring-Extension
(Superseded to 66-8410-03)

$104.99

$

Usually ships in 3-6 days

0

16

Toro 66-8340

SPRING END WA (NO FINISH)

$

$

Not available

17

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 8

0

18

Toro 66-8300

COVER ASSEMBLY

$

$

Not available

19

Toro 66-8270

SHAFT WA

$

$

Not available

20

Toro 59-4380

KNOB (MACHINED) R

$

$

Not available

21

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0

Toro 66-8400

Counterbalance Assembly (Trim Side)(Incl. Ref. #1-3, 10, 11 & 15-21)

$1089.99

$

Usually ships in 3-6 days

0

Toro 66-8401

Counterbalance Assembly (Discharge Side)(Incl. Ref. #1-3, 10, 11 & 15-21)

$

$

Not available
