30777 - Toro Cruise Control Kit (SN: 010000001 - 019999999) (1981) CRUISE CONTROL ASSEMBLY Parts Diagram

Cruise Control Kit

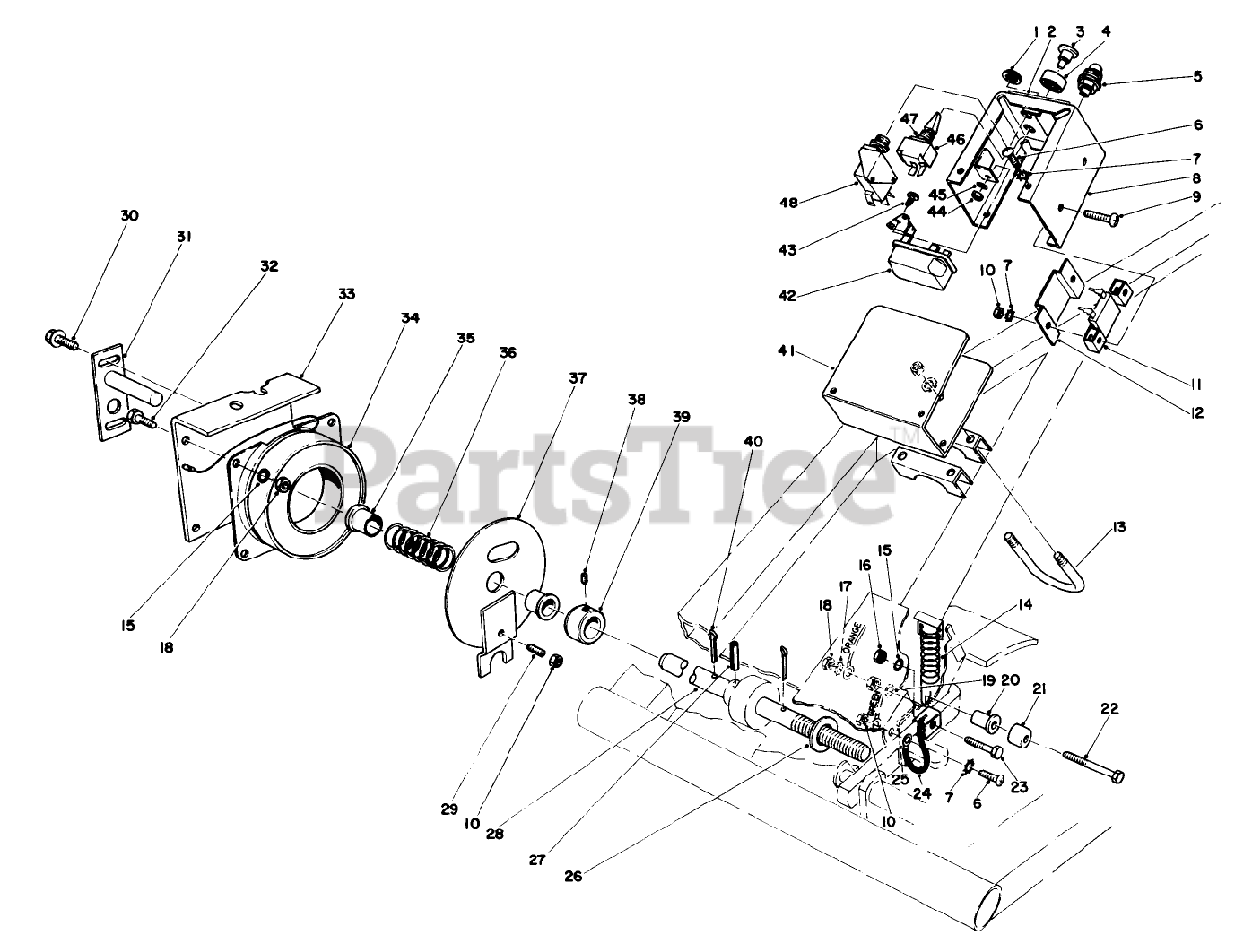

CRUISE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 218-497

NUT-BULB

$

$

Not available

2

Toro 43-6210

SPEED CONTROL DECAL

$

$

Not available

3

Toro 43-6280

BUTTON-PUSH

$

$

Not available

4

Toro 43-6420

BEZEL

$77.99

$

Usually ships in 3-6 days

0

5

Toro 40-6410

Light-Warning

$

$

Not available

6

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

7

Toro 3255-5

WASHER-LOCK/EXT

$

$

Not available

8

Toro 43-6340

Box Cover

$

$

Not available

9

Toro 32122-44

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

11

Toro 43-6400

Resistor

$

$

Not available

12

Toro 43-6120

RESISTOR GUARD

$

$

Not available

13

Toro 2412-76

MUFFLER CLAMP

$

$

Not available

14

Toro 43-6190

Extension Spring Assembly

$

$

Not available

15

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

17

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

18

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32117-1

NUT-INSERT

$

$

Not available

21

Toro 43-6270

CONTACT SPACER

$

$

Not available

22

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3214

Bolt

$

$

Currently unavailable

24

Toro 43-6260

Grounding Clip Assy (w/wire)

$

$

Not available

25

Toro 3272-48

PIN-COTTER

$10.99

$

Usually ships in 3-6 days

0

26

Toro 43-8440

SPACER

$34.99

$

Usually ships in 3-6 days

0

27

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

28

Toro 43-6130

TRACTION PEDAL SHAFT

$

$

Not available

29

Toro 3245-31

SCREW-HSH

$16.99

$

Usually ships in 3-6 days

0

30

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

31

Toro 43-6170

Shaft

$

$

Not available

32

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 43-6310

BRACKET R

$

$

Not available

34

Toro 42-1720

CORE-FIELD, COIL

$467.99

$

Usually ships in 3-6 days

0

35

Toro 256-273

BUSHING-FLANGE

$5.99

$

Usually ships in 3-6 days

0

36

Toro 43-6200

SPRING-COMPRESSION

$24.99

$

Usually ships in 3-6 days

0

37

Toro 43-6110

Clutch Plate
(Superseded to 43-6110-03)

$

$

Not available

38

Socket Hd. Set Screw

$

$

Not available

39

Toro 43-6320

Collar (Incl. Ref. #38)

$29.99

$

Usually ships in 3-6 days

0

40

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

41

Toro 43-6330

BOX WA B

$

$

Not available

42

Toro 43-7980

Relay Switch

$

$

Not available

43

Toro 3249-2

6 32 3/8 RD HD MS

$

$

Not available

44

Toro 3217-29

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

46

Toro 28-4110

Light Switch (Incl. Ref. #1 & 47)

$49.99

$

Usually ships in 3-6 days

0

47

Toro 218-498

NUT-LOCK

$0.99

$

In Stock, only 2 left!

0

48

Toro 43-6290

Switch

$

$

Not available
