30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) POWER TAKE OFF ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

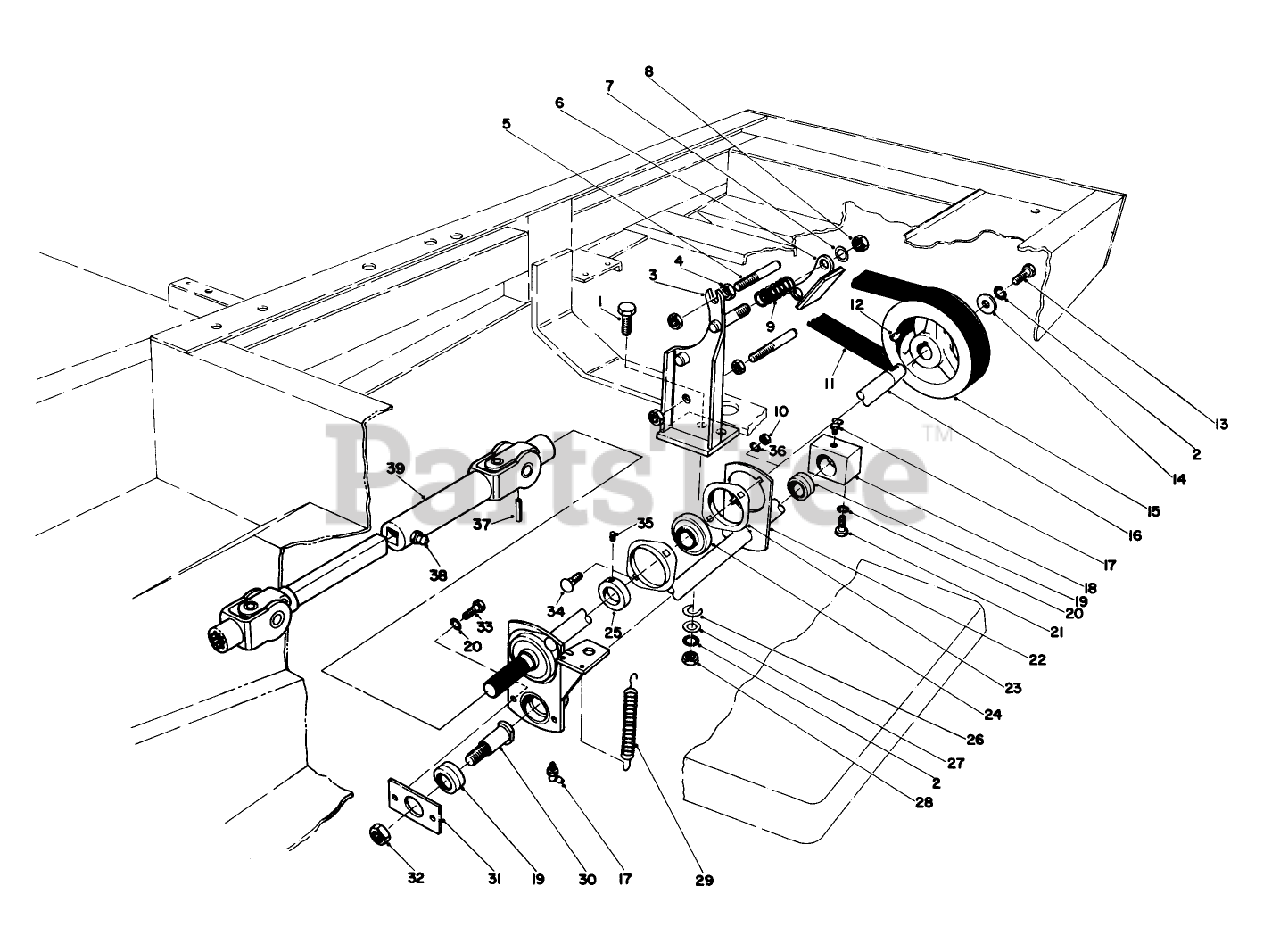

POWER TAKE OFF ASSEMBLY Parts Diagram

  • Title

1

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 27-8410

PTO BRAKE BRKT WA BO

$245.99

$

Usually ships in 3-6 days

0

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 27-8450

PTO BELT GUIDE

$

$

Not available

6

Toro 33-0890

PTO BRAKE SHOE/LINING

$

$

Not available

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 27-9220

COMP SPRING O

$29.99

$

Usually ships in 3-6 days

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

11

Toro 41-9150

V-BELT, TORQUE TEAM

$43.99

$

In Stock, only 1 left!

0

12

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

13

Toro 323-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

14

Toro 29-4730

WASHER-FLAT

$17.99

$

Usually ships in 3-6 days

0

15

Toro 27-4530

PULLEY-PTO, MACH.

$

$

Not available

16

Toro 27-4980

PTO SHAFT

$

$

Not available

17

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

18

Toro 28-9050

BEARING HUB PP

$

$

Not available

19

Toro 251-268

BEARING

$99.99

$

Usually ships in 3-6 days

0

20

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 37-0010

Engagement Arm
(Superseded to 44-9350)

$

$

Not available

23

Toro 251-255

FLANGE

$18.99

$

Usually ships in 3-6 days

0

24

Toro 251-253

Bearing w/collar (Incl. Ref. #25 & 35)

$24.99

$

Usually ships in 3-6 days

0

25

Toro 251-77

COLLAR-LOCK, BEARING

$12.99

$

Usually ships in 3-6 days

0

26

Toro 28-5640

SPECIAL WASHER

$

$

Not available

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

28

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

29

Toro 28-8950

TENSION PTO SPRING R

$

$

Not available

30

Toro 27-6970

BEARING STUD

$

$

Not available

31

Toro 27-6650

BRG RETAINER

$

$

Not available

32

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

33

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

35

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

36

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

38

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

39

Toro 27-4520

UNIVERSAL JOINT

$

$

Not available
