30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) HOOD ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

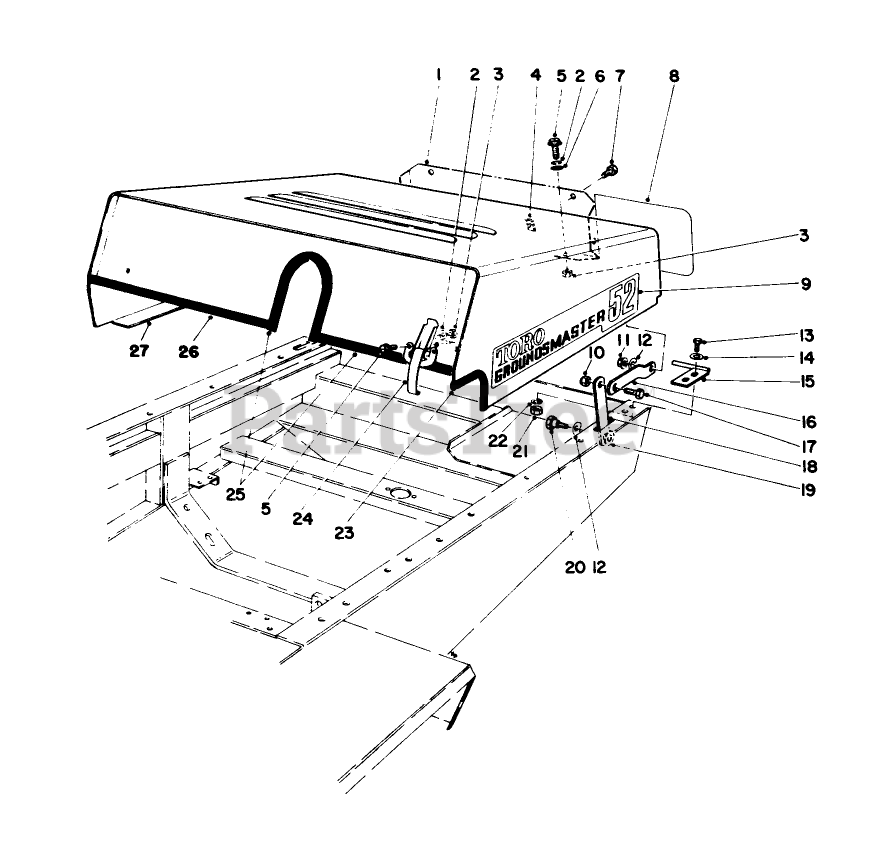

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 36-0680

HOOD SCREEN B

$

$

Not available

2

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

3

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

4

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

5

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

8

Toro 36-0630

HOOD DECAL

$

$

Not available

9

Toro 384190

Decal-Groundsmaster 52

$

$

Currently unavailable

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

11

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

13

Toro 3214

Bolt

$

$

Currently unavailable

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 274830

Pin-Pivot L.H.

$

$

Currently unavailable

Toro 274800

Link-Hood

Note: Not illustrated

$

$

Currently unavailable

16

Toro 27-6800

Link Hood
(Superseded to 27-6800-01)

$

$

Not available

17

Toro 3211-27

SCREW-HH

$

$

Not available

18

Toro 27-6810

Tie Hood
(Superseded to 27-6810-01)

$18.99

$

Usually ships in 3-6 days

0

19

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

21

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 36-1970

HOOD TRIM

$

$

Not available

24

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

25

Toro 384070

Hood Trim

$

$

Currently unavailable

26

Toro 384080

Hood Trim

$

$

Currently unavailable

27

Toro 38-3220

Hood
(Superseded to 11-6409)

$

$

Not available
