30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

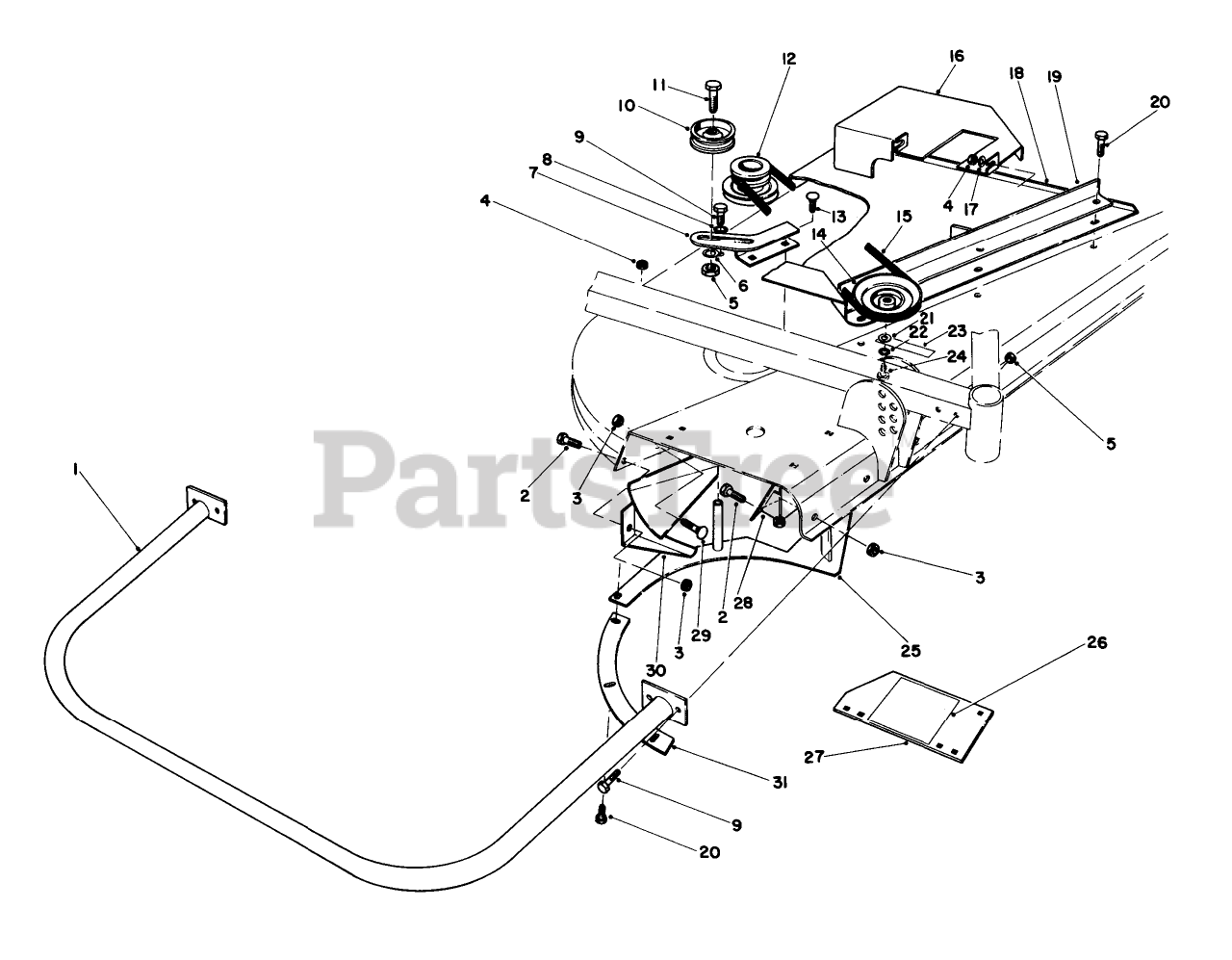

GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

  • Title
1

Toro 44-7570

Bumper

$

$

Not available

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

4

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

5

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 43-0970

IDLER BRKT R

$

$

Not available

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

9

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 43-1040

IDLER PULLEY R

$

$

Not available

11

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 43-0770

PULLEY WA RO

$

$

Not available

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

14

Toro 44-5350

PULLEY WA BO

$

$

Not available

15

Toro 43-1030

V-BELT

$52.99

$

Usually ships in 3-6 days

0

16

Toro 43-1200

Cover Blower Drive

$

$

Not available

17

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 43-1160

Cover-Right

$

$

Not available

19

Toro 43-1130

Spring Bracket

$

$

Not available

20

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-2958

Washer

$

$

Not available

22

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

23

Toro 43-1120

WARNING DECAL

$

$

Not available

24

Toro 3235-18

1/4-20 X 5/8 CAPSCREW

$9.49

$

Usually ships in 3-6 days

0

25

Toro 44-7770

Rear Shelf
(Superseded to 44-7770-01)

$498.99

$

Usually ships in 3-6 days

0

26

Toro 40-5730

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 1 left!

0

27

Toro 44-5750

Cover Plate (Incl. Ref. #26)

$

$

Not available

28

Toro 46-2350

Front Deflector
(Superseded to 92-6297-01)

$138.99

$

Usually ships in 3-6 days

0

29

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

30

Toro 43-1060

Deflector Rear
(Superseded to 59-5350-01)

$254.99

$

Usually ships in 3-6 days

0

31

Toro 44-7780

Shelf-RH
(Superseded to 44-7780-01)

$32.99

$

Usually ships in 3-6 days

0

Toro 44-5480

BLADE-HIGH SAIL

Note: Not illustrated

$22.99

$

Usually ships in 3-6 days

0
