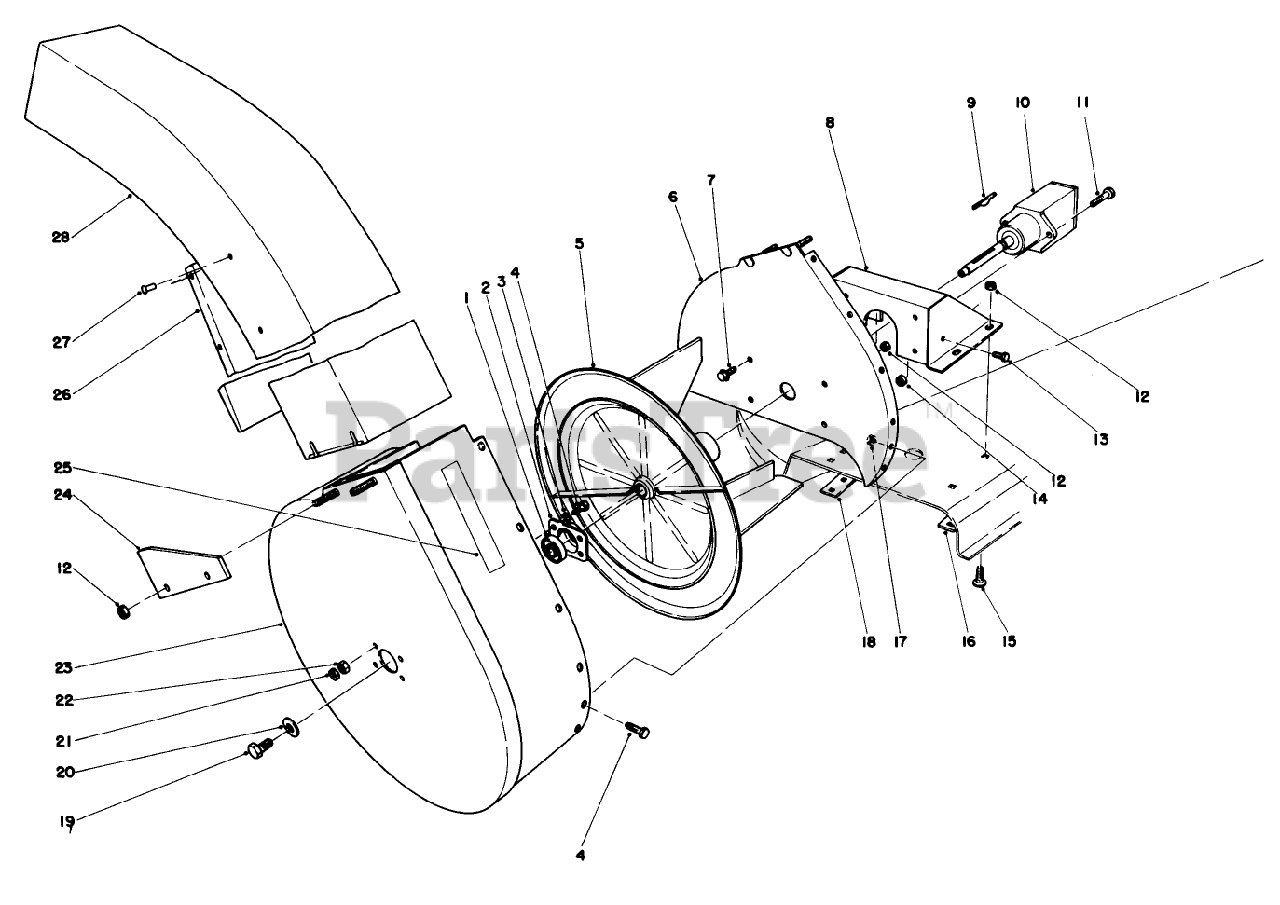

30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

GRASS COLLECTION SYSTEM MODEL NO. 30557 (FOR CUTTING UNIT MODEL 30555) Parts Diagram

  • Title
1

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

2

Toro 37-6730

CUP-BEARING

$19.99

$

In Stock, only 2 left!

0

3

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 43-0870

IMPELLER W A BO

$

$

Not available

6

Toro 44-5250

MTG PLATE WA B

$

$

Not available

7

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

8

Toro 44-1050

GEAR BOX BRKT WA B

$

$

Not available

9

$9.49

$

In Stock, only 1 left!

0

10

Toro 43-0810

GEAR BOX ASM

$

$

Not available

11

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

14

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 44-5450

Plate-Bracket R.H.

$

$

Not available

17

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 6

0

18

Toro 44-5460

Plate-Bracket
(Superseded to 44-5460-03)

$18.99

$

Usually ships in 3-6 days

0

19

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

20

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

21

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

22

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

23

Toro 11-2839

Housing-Blower (Incl. Ref. #24)

$

$

Not available

24

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$21.99

$

Usually ships in 3-6 days

0

25

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

26

Deflector-Chute

$

$

Not available

27

$0.99

$

Usually ships in 3-6 days

0

28

Toro 44-5300

Chute Assembly (Incl. Ref. #26 & 27)
(Superseded to 94-2672)

$623.99

$

Usually ships in 3-6 days

0

Toro 46-8650

BLOWER TEMPLATE

Note: Not illustrated

$

$

Not available
