30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) GAS TANK AND AIR CLEANER ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

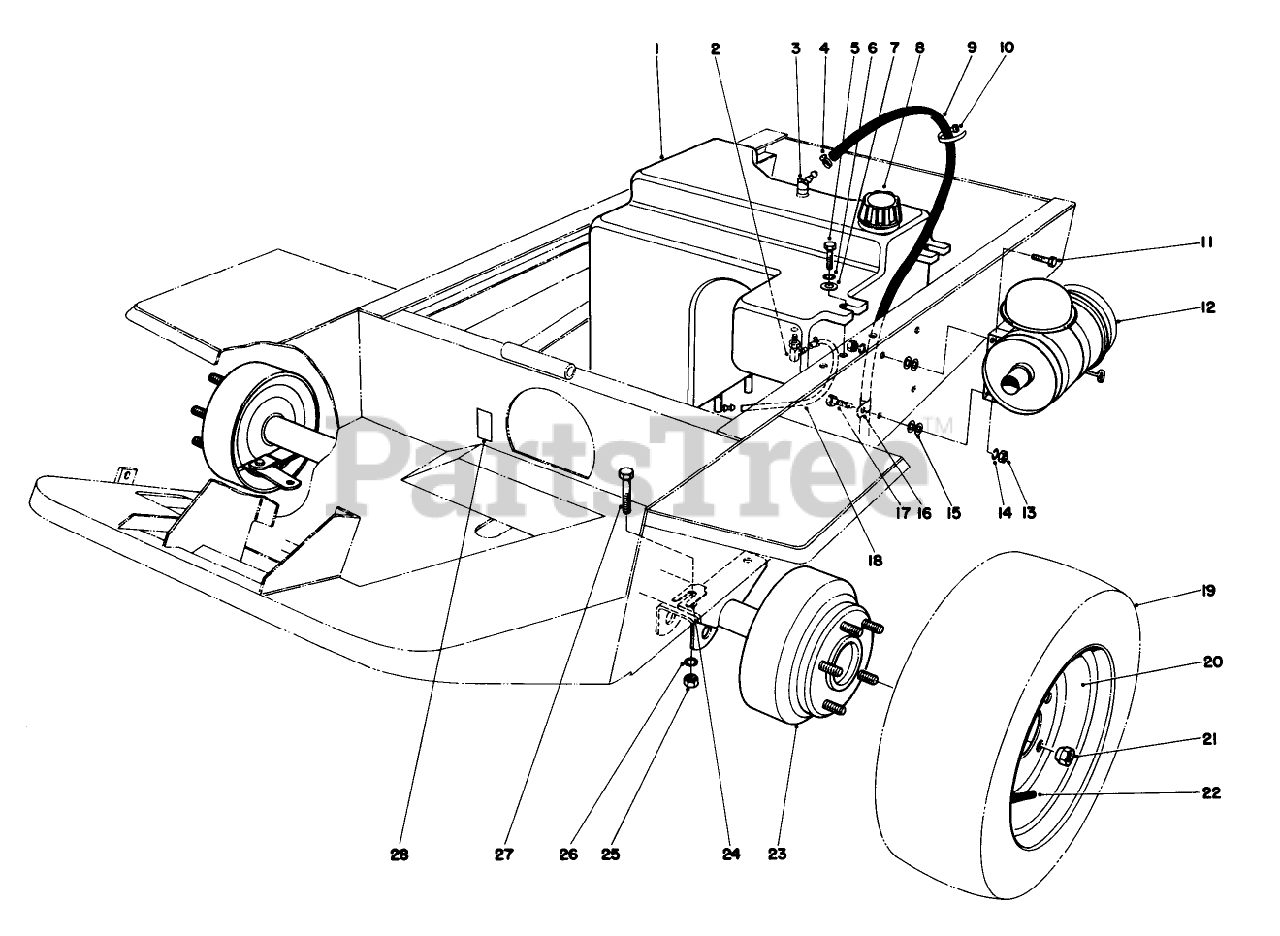

GAS TANK AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title
1

Toro 37-9900

Gas Tank (Incl. Ref. #2 & 3)

$

$

Not available

2

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available

3

Toro 353-705

ELBOW

$

$

Not available

4

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

5

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

6

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

7

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

8

Toro 55-3574

GAS CAP ASSEMBLY

$15.99

$

In Stock, only 2 left!

0

9

Toro 37-9920

GAS TANK VENT HOSE
(Superseded to 109-0308)

$11.99

$

Usually ships in 3-6 days

0

10

Toro 3290-336

Strap
(Superseded to 3290-379)

$0.99

$

In Stock, only 3 left!

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 11-4659

AIR CLEANER KIT
(Superseded to 46-6890)

$

$

Not available

13

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 2412-41

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

17

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 27-5370

HOSE-FUEL
(Superseded to 110-4101)

$20.99

$

Usually ships in 3-6 days

0

19

Toro 231-103

20 X 8.00 - 10 TIRE

$

$

Not available

20

Toro 217-107

WHEEL ASM

$

$

Not available

21

Toro 242-35

NUT-WHEEL

$9.99

$

Usually ships in 3-6 days

0

22

Toro 232-35

VALVE STEM AND CAP ASM
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

23

$

$

Not available

24

Toro 42-6080

SHIM-AXLE

$38.99

$

Usually ships in 3-6 days

0

25

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

26

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 324-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

28

Toro 53-4430

DECAL-OIL

$10.99

$

Usually ships in 3-6 days

0

Toro 232-43

TUBE

Note: Not illustrated

$

$

Not available

Toro 46-8590

Air Cleaner Guard

Note: Optional equipment

$

$

Not available

Toro 46-8590

Air Cleaner Guard

Note: Not illustrated

$

$

Not available
