30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL NO. 326437-0630-01 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

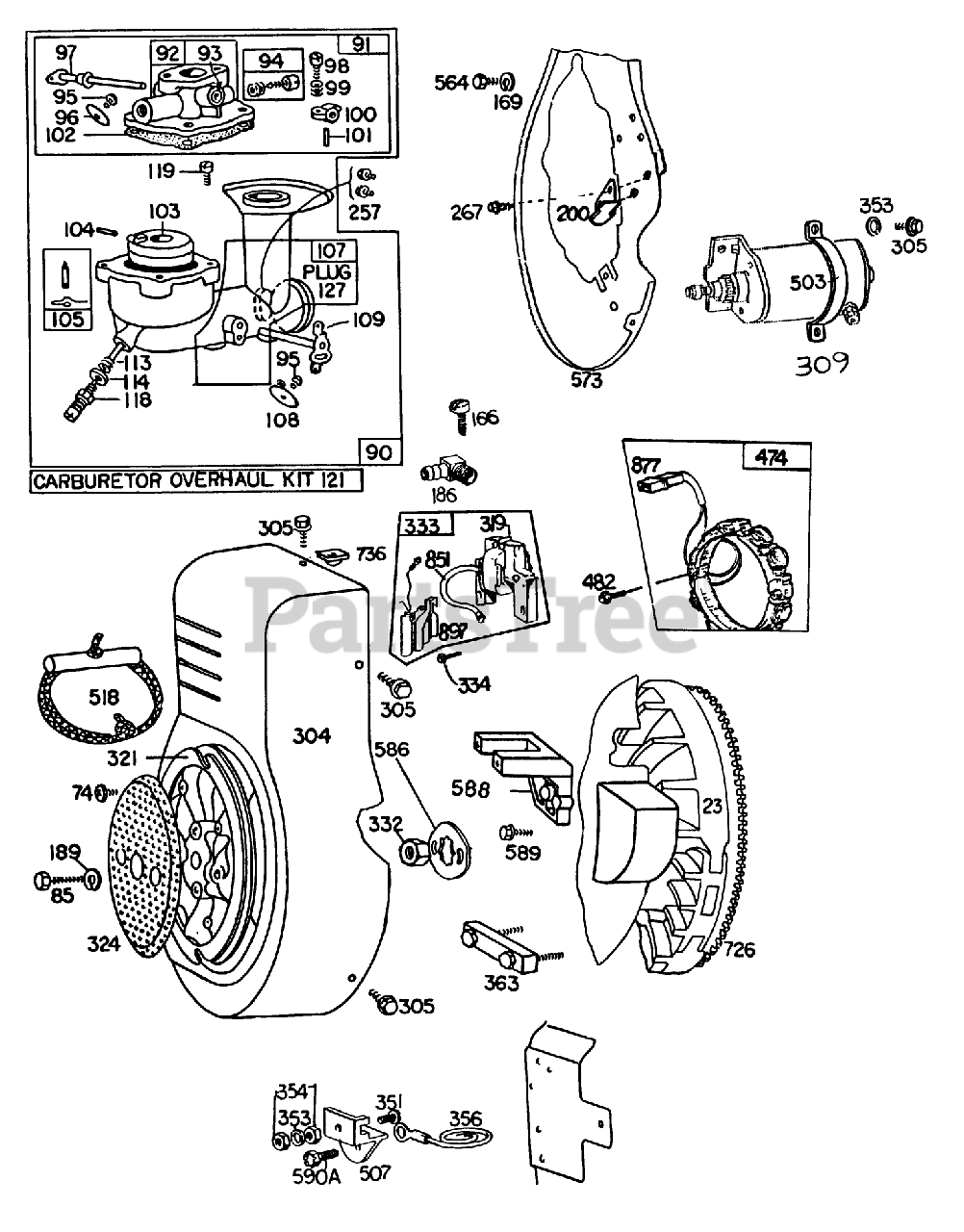

ENGINE BRIGGS & STRATTON MODEL NO. 326437-0630-01 Parts Diagram

  • Title

23

Briggs & Stratton 395251

Flywheel and Ring Gear Assy.-Magneto

$508.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93808

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 91386

Screw-Cylinder Head
(Superseded to 691076)

$3.99

$

Usually ships in 2-12 days

0

90

Briggs & Stratton 393431

Carburetor Assy.

$371.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 391067

Body Assy.-Upper Carburetor

$89.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 390998

Body-Upper Carburetor

$

$

Not available

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 221939

Valve-Throttle
(Superseded to 691727)

$6.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298535

Shaft Assy.-Throttle
(Superseded to 691944)

$39.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 61967

Stop-Throttle
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 270268

Gasket-Carburetor Body
(Superseded to 692215)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$5.49

$

Usually ships in 2-12 days

0

103

Briggs & Stratton 298514

Float-Carburetor
(Superseded to 692265)

$11.99

$

In Stock, Qty 8

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Valve-Fuel Inlet

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$7.99

$

In Stock, only 1 left!

0

107

Briggs & Stratton 393138

Body Assy.-Lower Carburetor

$

$

Not available

108

Briggs & Stratton 390936

Valve-Choke
(Superseded to 690621)

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391583

Shaft & Lever, Choke
(Superseded to 691353)

$29.99

$

Usually ships in 2-12 days

0

113

Briggs & Stratton 394730

Nozle-Carburetor
(Superseded to 691966)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$21.99

$

In Stock, only 3 left!

0

114

Briggs & Stratton 68667

Gasket-Nozzle
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Value-Needle
(Superseded to 99525S)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$

$

Not available

121

Briggs & Stratton 394989

Carburetor Overhaul Kit

$

$

Not available

Briggs & Stratton 394683

Fuel Pump Seat Kit (Incl. Orange seat Viton, seat, needle & spring)

Note: Not illustrated

$12.99

$

In Stock, Qty 6

0

127

Briggs & Stratton 221747

Plug-Welch
(Superseded to 690627)

Note: Included in Carburetor Overhaul Kit-See Ref. Num 121.

$

$

Not available

166

Briggs & Stratton 93110

Screw-Machine, Fill. Hd. 1/4-28 x 1/2"
(Superseded to 690293)

$4.49

$

Usually ships in 2-12 days

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector-Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

189

Briggs & Stratton 90366

Lockwasher
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 222581

Deflector-Air
(Superseded to 690432)

$5.49

$

Usually ships in 2-12 days

0

257

Briggs & Stratton 93543

Screw-Sem
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 93612

Screw
(Superseded to 690305)

$4.49

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 391229

Housing-Blower

$199.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

309

Motor-Starting (see page 51)

$

$

Not available

319

Briggs & Stratton 395326

Armature Assembly
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

321

Briggs & Stratton 211555

1980-81 5HP CHAIN D
(Superseded to 691151)

$179.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 222283

Screen-Rotating
(Superseded to 690404)

$31.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 230674

Nut-Hex
(Superseded to 691059)

$4.49

$

In Stock, only 1 left!

0

333

Briggs & Stratton 395492

Armature Group
(Superseded to 398811)

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

351

Briggs & Stratton 93064

Screw
(Superseded to 690292)

$3.99

$

In Stock, only 3 left!

0

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 299500

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 222331

Strap-Starter
(Superseded to 690406)

$17.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 280380

Insulator
(Superseded to 690584)

$4.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope-Starter
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

564

Briggs & Stratton 92980

Screw-Cap, Hex. Hd.
(Superseded to 690290)

$3.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 391220

Plate-Back

$73.99

$

Usually ships in 2-12 days

0

586

Briggs & Stratton 22906

Lock-Flywheel Nut
(Superseded to 690265)

$4.99

$

Usually ships in 2-12 days

0

588

Briggs & Stratton 211976

Bracket-Armature Mfg.
(Superseded to 690375)

$31.99

$

Usually ships in 2-12 days

0

589

Briggs & Stratton 93473

Screw-Armature Bracket to Cylinder Mounting
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 14

0

590A

Briggs & Stratton 93226

Screw-Hex Head
(Superseded to 690295)

$6.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 391362

Gear-Flywheel Ring (Includes Mtg. Parts)

$

$

Not available

736

Briggs & Stratton 93542

Nut-Clip
(Superseded to 690302)

$5.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available
