30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) AIR CLEANER ASSEMBLY 11-4659 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

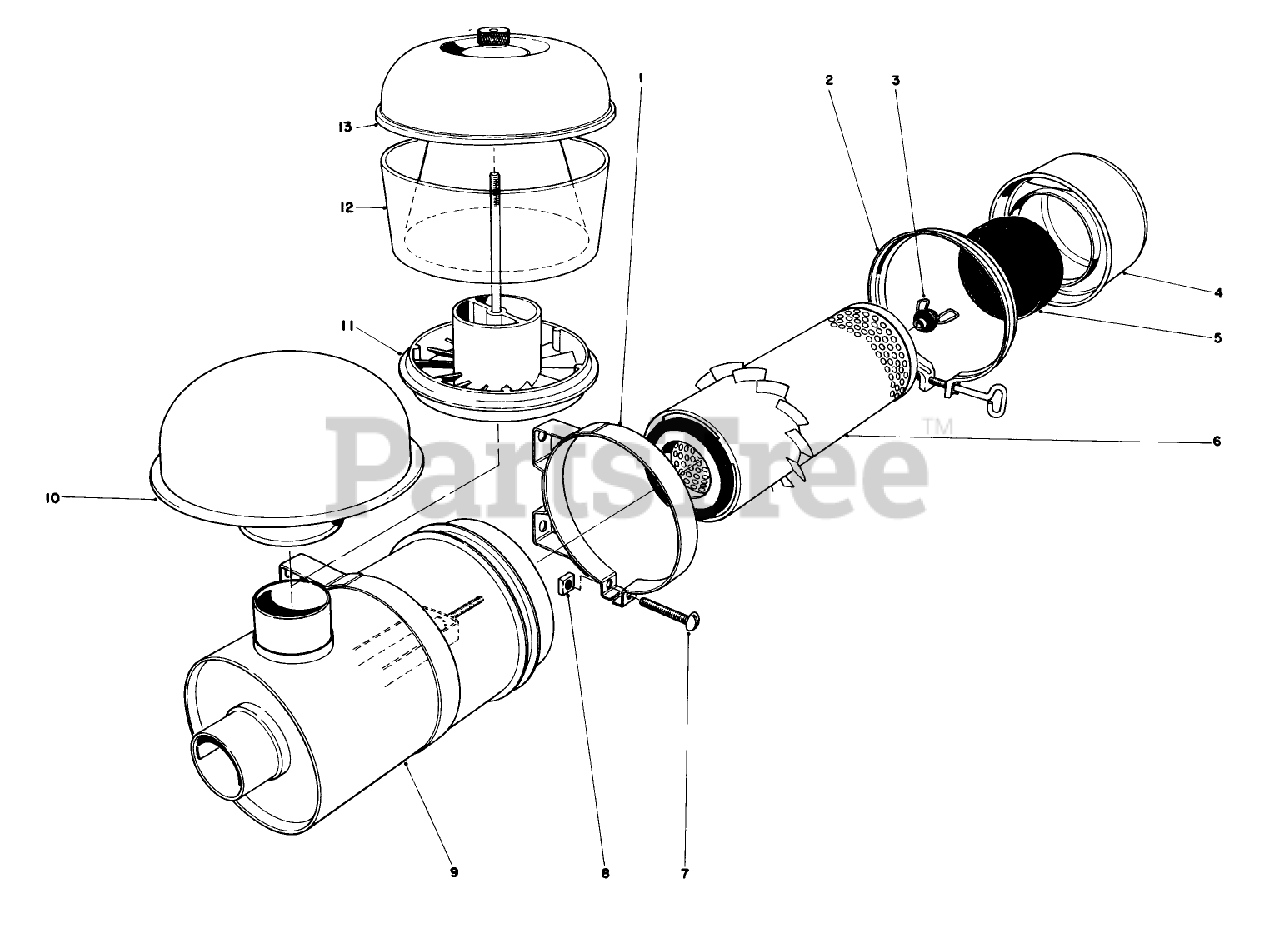

AIR CLEANER ASSEMBLY 11-4659 Parts Diagram

  • Title

1

Toro 33-1350

MTG BAND ASM

$

$

Not available

2

Toro 33-1340

CLAMP ASM

$

$

Not available

3

Toro 33-1330

NUT ASM

$

$

Not available

4

Toro 33-1320

CUP ASM

$

$

Not available

5

Toro 33-1310

BAFFLE

$

$

Not available

6

Toro 33-1300

ELEMENT ASM
(Superseded to 108-3808)

$29.99

$

Usually ships in 3-6 days

0

7

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32107-11

NUT-SQUARE

$

$

Not available

9

Body Assembly

$

$

Not available

10

Toro 46-7510

HOOD-INLET, AIR

$109.99

$

Usually ships in 3-6 days

0

11

Toro 33-1280

SLEEVE ASM

Note: Optional Equipment.

$

$

Currently unavailable

12

Toro 33-1270

BOWL-CLEAR

Note: Optional Equipment.

$15.99

$

Usually ships in 3-6 days

0

13

Toro 33-1260

COVER ASM

Note: Optional Equipment.

$45.99

$

Usually ships in 3-6 days

0
