30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) POWER TAKE OFF LEVER ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

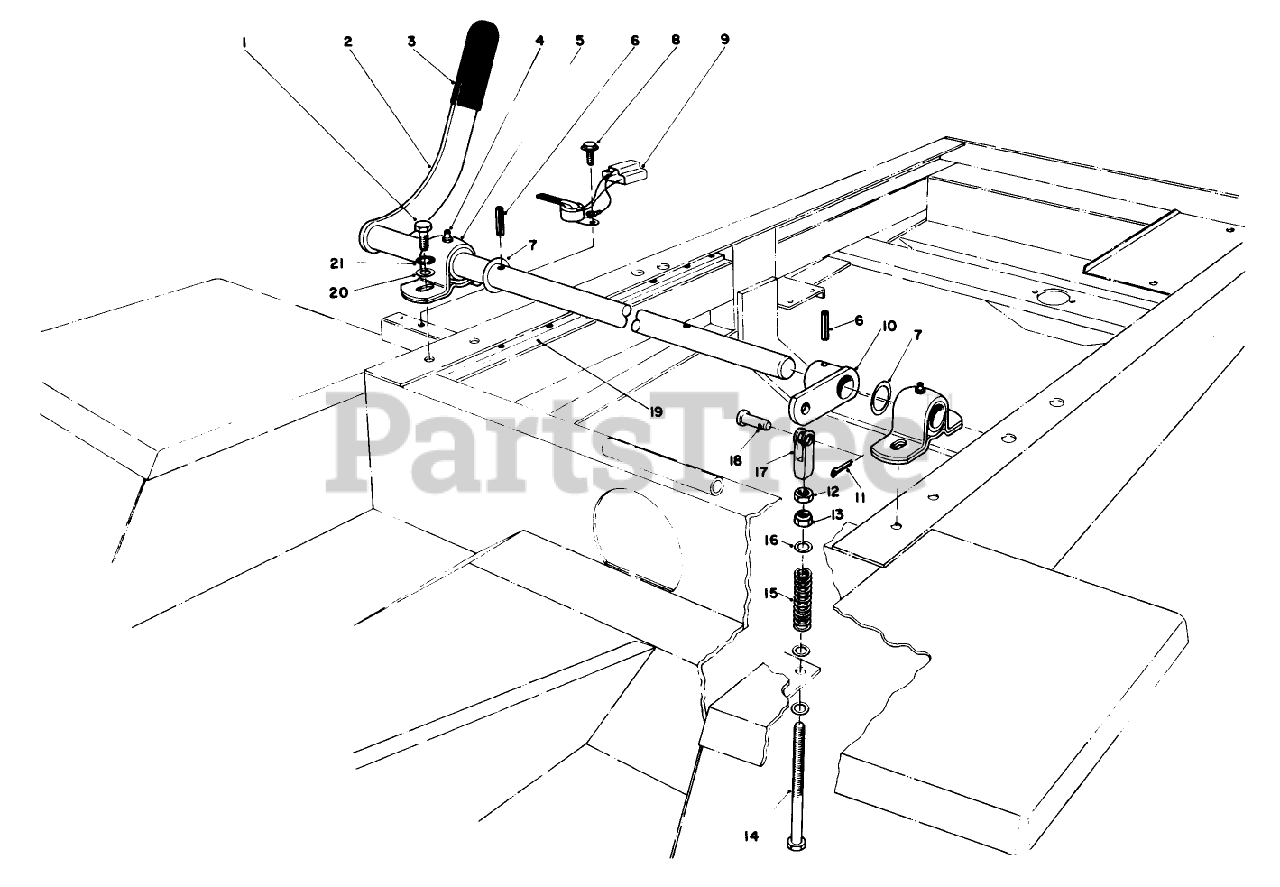

POWER TAKE OFF LEVER ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 27-4910

P.T.0. Lever
(Superseded to 27-4910-01)

$

$

Not available

3

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 251-269

BEARING

$

$

Not available

6

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

8

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 33-0300

PTO SWITCH

$

$

Not available

10

Toro 27-4940

ENGAGE ARM WA

$250.99

$

Usually ships in 3-6 days

0

11

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

12

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

14

Toro 27-7900

SCREW-ADJUSTING

$26.99

$

Usually ships in 3-6 days

0

15

Toro 21-0400

SPRING-COMPRESSION
(Superseded to 21-0400-01)

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

17

Toro 282-1

Yoke
(Superseded to 282-1-01)

$

$

Not available

18

Toro 283-42

PIN-CLEVIS

$48.99

$

Usually ships in 3-6 days

0

19

Toro 37-7060

Bar Frame Rail
(Superseded to 37-7060-01)

$

$

Not available

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
