30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) HYDRAULIC CYLINDER 43-5260 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

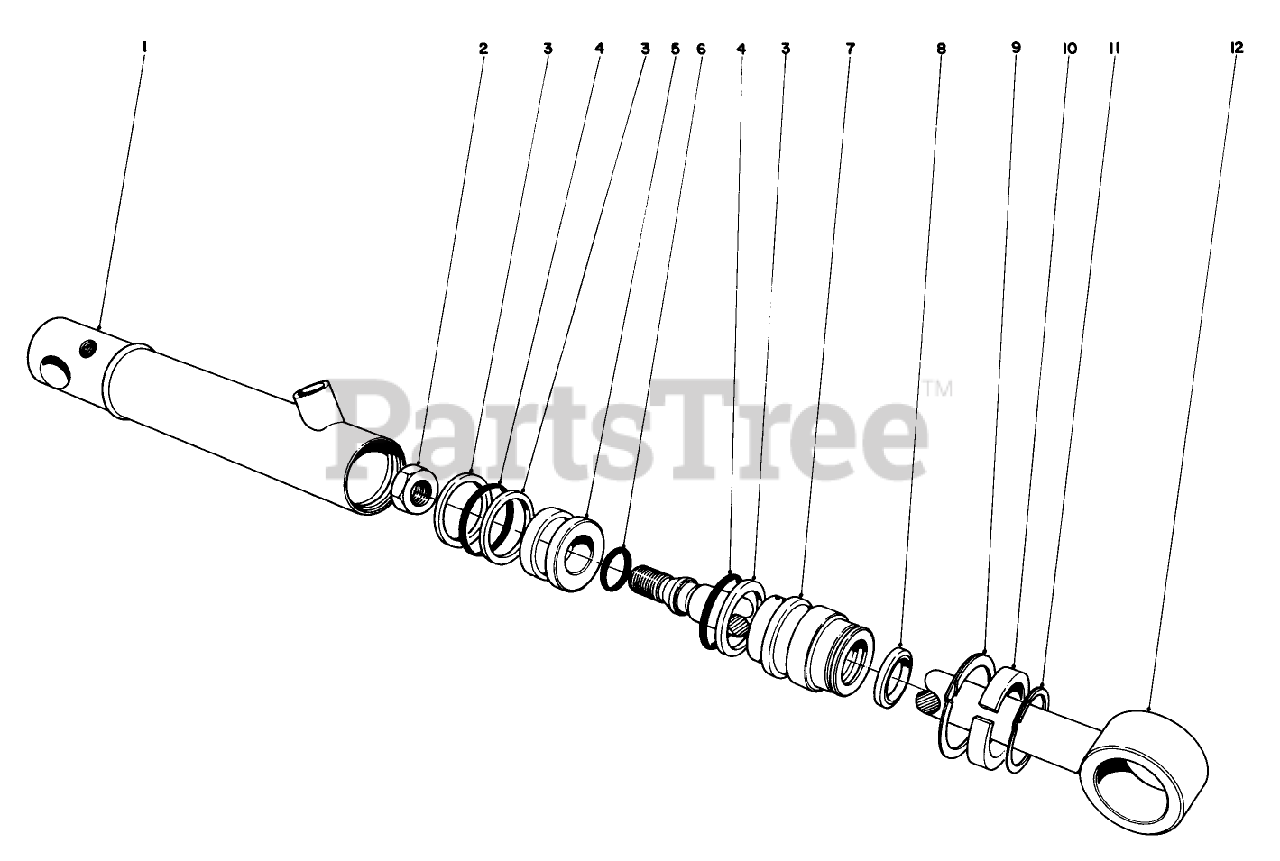

HYDRAULIC CYLINDER 43-5260 Parts Diagram

  • Title
1

Barrel with Clevis & Ports

Note: Note: Order complete hydraulic cylinder No. 43-5260.

$

$

Not available

2

Toro 43-5130

Nut
(Superseded to 32152-10)

$1.49

$

Usually ships in 3-6 days

0

3

Back Up Washer

$

$

Not available

5

Toro 43-5150

PISTON

$284.99

$

Usually ships in 3-6 days

0

7

$155.99

$

Usually ships in 3-6 days

0

9

Leather

$

$

Not available

10

Seal Dust

$

$

Not available

11

Toro 43-5220

RING-RETAINING

$85.99

$

Usually ships in 3-6 days

0

12

Toro 43-5230

SHAFT W/CLEVIS

$

$

Not available

Toro 43-5250

Repair Kit (Incl. Ref. #3, 4, 6 & 8-10)

Note: Not illustrated

$

$

Not available
