30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) ELECTRICAL SCHEMATIC Parts Diagram

Groundsmaster Rear-Engine Riding Mower

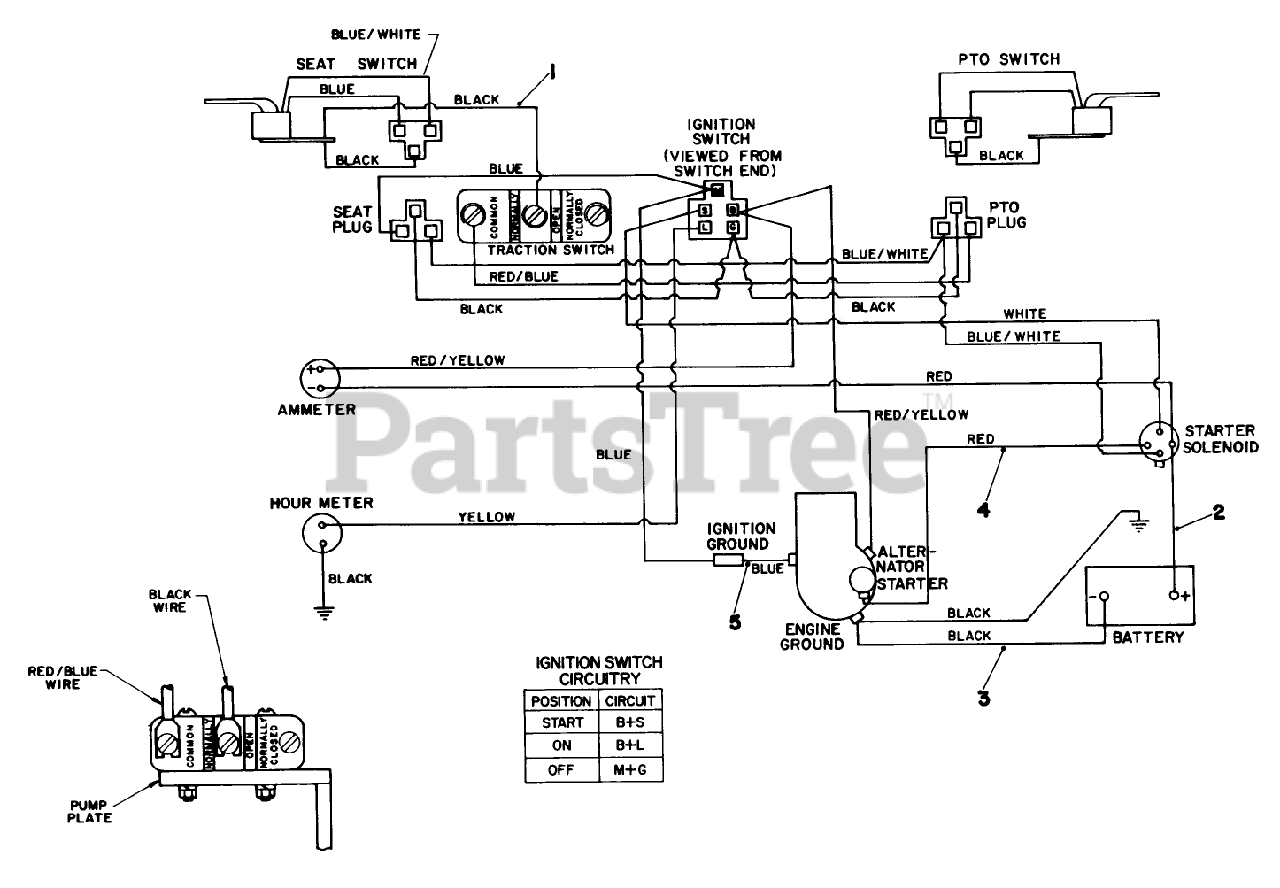

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 41-8890

WIRE HARNESS

$

$

Not available

2

Toro 39-8860

BATT/SOLENOID WIRE

$

$

Not available

3

Toro 27-5090

BATTERY GROUND WIRE

$52.99

$

Usually ships in 3-6 days

0

4

Toro 27-5110

SOLENOID TO START WIR

$

$

Not available

5

Toro 27-9590

ENGINE GROUND WIRE

$

$

Not available
