30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) CUTTING UNIT MODEL NO. 30560 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

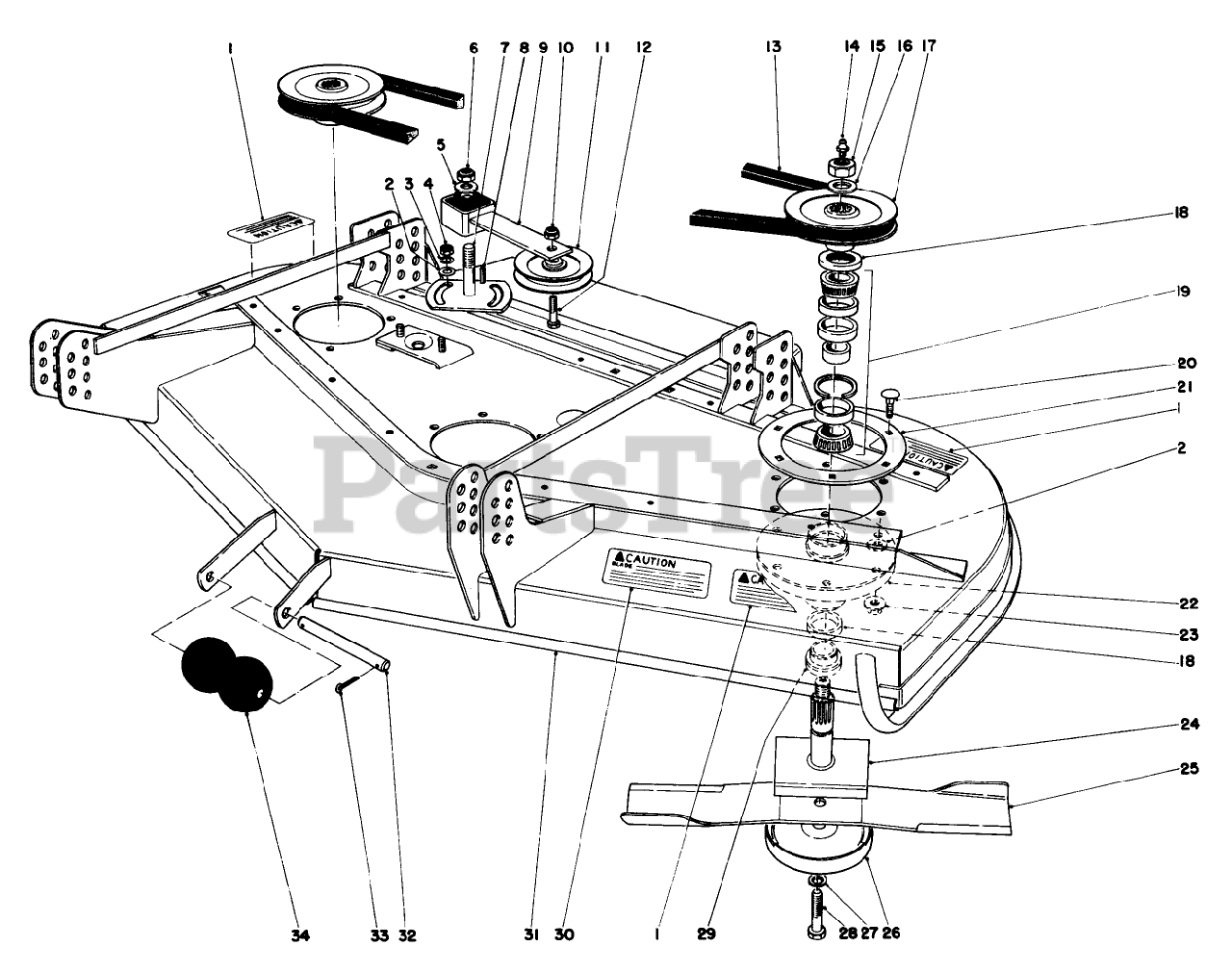

CUTTING UNIT MODEL NO. 30560 Parts Diagram

  • Title
1

Toro 26-7970

DECAL-CAUTION, BLADE

$16.99

$

Usually ships in 3-6 days

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

5

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

6

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

7

Toro 28-9060

PLATE-IDLER

$170.99

$

Usually ships in 3-6 days

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 3 left!

0

9

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$134.99

$

In Stock, only 1 left!

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 27-1080

Idler Pulley

$

$

Not available

12

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 27-1160

V-BELT

$55.99

$

In Stock, only 1 left!

0

14

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

15

Toro 32146-20

NUT-HEX

$3.49

$

In Stock, Qty 6

0

16

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 7

0

17

Toro 27-0970

PULLEY AND HUB ASM
(Superseded to 27-0970-03)

$54.99

$

Usually ships in 3-6 days

0

18

Toro 253-139

SEAL-OIL

$12.99

$

In Stock, Qty 5

0

19

Toro 46-8530

BEARING ASM

$94.99

$

In Stock, only 4 left!

0

20

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

21

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$85.99

$

Usually ships in 3-6 days

0

22

Toro 27-0880

Housing-Spindle
(Superseded to 61-4160)

$131.99

$

In Stock, only 1 left!

0

23

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

24

Toro 27-0920

SHAFT

$159.99

$

In Stock, only 1 left!

0

25

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$20.99

$

In Stock, only 3 left!

0

26

Toro 27-1000

Cup-Scalp
(Superseded to 72-9361)

$40.99

$

Usually ships in 3-6 days

0

27

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

28

Toro 44-2200

SCREW-BLADE

$4.49

$

In Stock, Qty 8

0

29

Toro 27-0950

SPACER

$31.99

$

Usually ships in 3-6 days

0

30

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

31

Toro 42-4650

CUTTER DECK WA RO

$

$

Not available

32

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

33

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

34

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0
