30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) PEDALS AND STEERING WHEEL ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

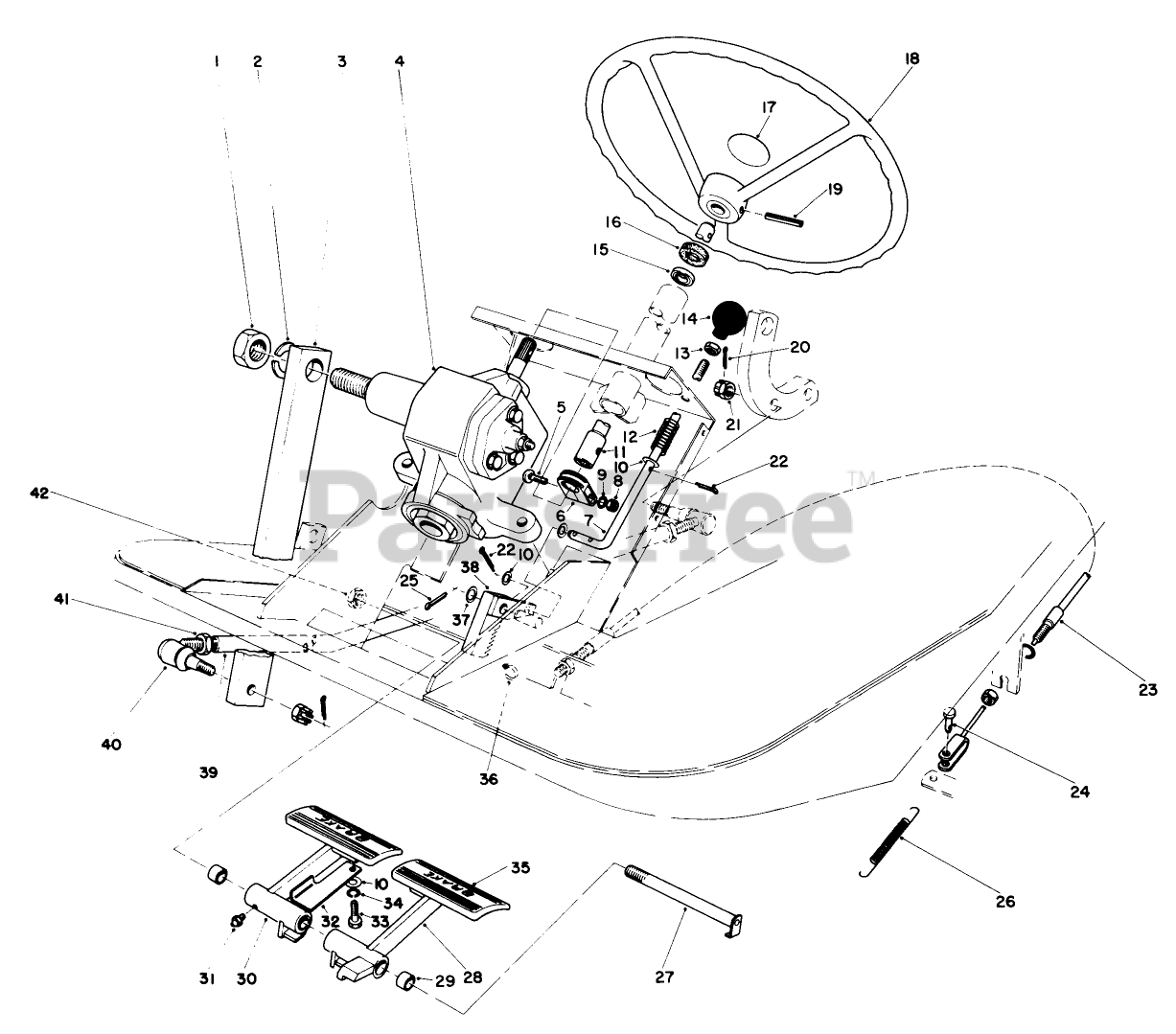

PEDALS AND STEERING WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3220-8

NUT-JAM

$9.49

$

Usually ships in 3-6 days

0

2

Toro 3253-28

WASHER-LOCK/SP

$9.49

$

Usually ships in 3-6 days

0

3

Toro 41-8880

Pitman Arm
(Superseded to 41-8880-03)

$

$

Not available

4

Toro 41-8820

Steering Gear
(Superseded to 41-8820-03)

$1561.99

$

Usually ships in 3-6 days

0

5

Toro 3232-16

7/16-14 X 1-3/4 BOLT

$

$

Not available

6

Toro 41-8830

STRG COUPLING CLAMP

$

$

Not available

7

Toro 27-3550

Rod Brake Latch
(Superseded to 27-3550-03)

$

$

Not available

8

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 41-8840

Shaft-Steering
(Superseded to 41-8840-01)

$

$

Not available

12

Toro 3-3251

Spring
(Superseded to 95-1821)

$8.49

$

Usually ships in 3-6 days

0

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 233-17

KNOB

$12.99

$

Usually ships in 3-6 days

0

15

Toro 251-275

BALL BRG

$

$

Not available

16

Toro 21-9260

COVER-DUST

$8.99

$

Usually ships in 3-6 days

0

17

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

18

Toro 25-6260

STEERING WHEEL
(Superseded to 9547)

$6.49

$

Usually ships in 3-6 days

0

19

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

20

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

21

Toro 32136-4

NUT-SLOTTED

$2.49

$

In Stock, Qty 10

0

22

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

23

Toro 21-3370

RH BRAKE CABLE ASM
(Superseded to 108-1379)

$172.99

$

In Stock, only 4 left!

0

24

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Toro 3-7243

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

27

Toro 42-2540

Pin
(Superseded to 42-2540-01)

$37.99

$

Usually ships in 3-6 days

0

28

Toro 41-8810

Brake Pedal L.H. (Incl. Ref. #29 & 31)
(Superseded to 41-8810-01)

$

$

Not available

29

Toro 256-42

BUSHING

$8.99

$

Usually ships in 3-6 days

0

30

Toro 41-8800

Brake Pedal R.H. (Incl. Ref. #29 & 31)
(Superseded to 41-8800-01)

$

$

Not available

31

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

32

Toro 27-3560

Latch Parking Brake
(Superseded to 27-3560-03)

$

$

Not available

33

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

37

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 42-3220

Rack
(Superseded to 42-3220-03)

$

$

Not available

39

Toro 27-3390

FRONT STEERING TUBE B

$

$

Not available

40

Toro 21-0140

Socket Assembly R.H. (Incl. Ref. #21)
(Superseded to 99-5686)

$

$

Not available

41

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

42

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0
