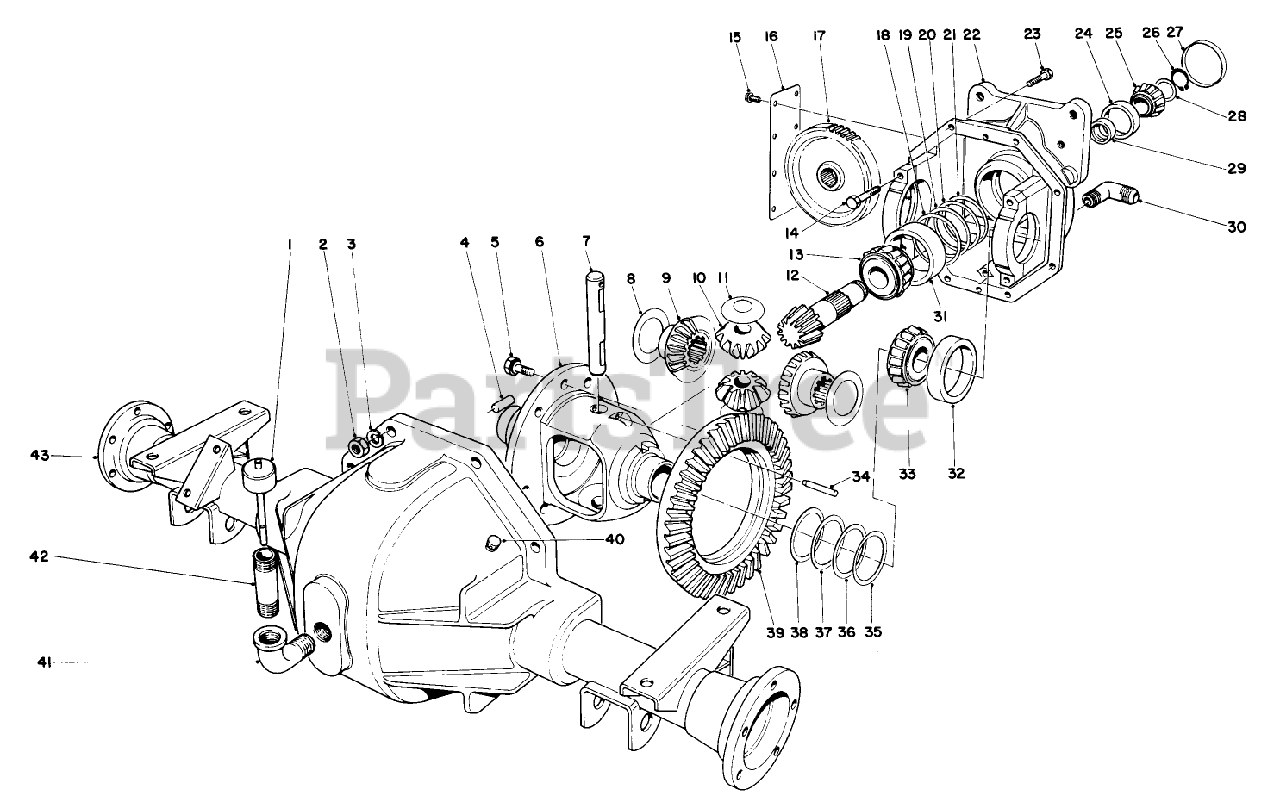

30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) DIFFERENTIAL ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 27-3710

DIPSTICK

$

$

Not available

2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

4

Toro 21-8270

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

5

Toro 21-7770

SCREW-GEAR, DRIVE

$2.99

$

Usually ships in 3-6 days

0

6

Toro 21-7670

CASE-DIFFERENTIAL

$822.99

$

Usually ships in 3-6 days

0

7

Toro 21-7700

SHAFT-MATE, PINION

$64.99

$

Usually ships in 3-6 days

0

8

Toro 21-7720

WASHER-THRUST

$4.49

$

Usually ships in 3-6 days

0

9

Toro 24-8790

GEAR-DIFFERENTIAL
(Superseded to 110-4143)

$952.99

$

Usually ships in 3-6 days

0

10

Toro 21-7690

PINION-DIFFERENTIAL
(Superseded to 110-4143)

$952.99

$

Usually ships in 3-6 days

0

11

Toro 21-7730

WASHER-THRUST, PINION

$3.99

$

Usually ships in 3-6 days

0

12

Drive Pinion (Incl. Ref. #39)

$

$

Not available

13

Toro 43-6760

BEARING-ROLLER, CONE TAPER

$153.99

$

Usually ships in 3-6 days

0

14

Toro 324-23

SCREW-HH
(Superseded to 92-1773)

$4.49

$

Usually ships in 3-6 days

0

15

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

16

Toro 21-7830

COVER-GEAR

$32.99

$

Usually ships in 3-6 days

0

17

Toro 21-8150

Gear-Spur
(Superseded to 86-7230)

$827.99

$

Usually ships in 3-6 days

0

18

Toro 43-6710

SHIM-PINION (.003)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 43-6711

SHIM-PINION (.005)

$5.49

$

Usually ships in 3-6 days

0

20

Toro 43-6712

SHIM-PINION (.010)

$4.49

$

Usually ships in 3-6 days

0

21

Toro 43-6713

SHIM-PINION (.030)

$9.49

$

Usually ships in 3-6 days

0

22

Toro 43-6860

Upper Housing Assembly (Incl. Ref. #14)
(Superseded to 99-5675)

$

$

Not available

23

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro 254-90

BEARING-CUP

$12.99

$

Usually ships in 3-6 days

0

25

Toro 254-91

CONE-BEARING

$20.99

$

Usually ships in 3-6 days

0

26

Toro 43-6550

RING-SNAP

$1.49

$

Usually ships in 3-6 days

0

27

Toro 21-7850

PLUG-CUP

$27.99

$

Usually ships in 3-6 days

0

28

Toro 46-2210

SHIM-BEARING, FRONT

$

$

Not available

Toro 46-2211

SHIM-FRONT BEARING, .033

Note: Not illustrated

$

$

Not available

Toro 46-2212

SHIM-FRONT BEARING, .035

Note: Not illustrated

$

$

Not available

Toro 46-2213

SHIM-FRONT BEARING, .037

Note: Not illustrated

$

$

Not available

Toro 46-2214

SHIM-FRONT BEARING, .039

Note: Not illustrated

$

$

Not available

Toro 46-2215

SHIM-FRONT BEARING, .041

Note: Not illustrated

$

$

Not available

Toro 46-2216

SHIM-FRONT BEARING, .043

Note: Not illustrated

$

$

Not available

Toro 46-2220

SHIM-FRONT BEARING, .045

Note: Not illustrated

$

$

Not available

Toro 46-2221

SHIM-FRONT BEARING, .047

Note: Not illustrated

$

$

Not available

Toro 46-2222

SHIM-FRONT BEARING, .049

Note: Not illustrated

$

$

Not available

Toro 46-2223

SHIM-FRONT BEARING, .051

Note: Not illustrated

$

$

Not available

Toro 46-2224

SHIM-FRONT BEARING, .053

Note: Not illustrated

$

$

Not available

Toro 46-2225

SHIM-FRONT BEARING, .055

Note: Not illustrated

$

$

Not available

Toro 46-2226

SHIM-FRONT BEARING, .057

Note: Not illustrated

$

$

Not available

29

Toro 21-8020

SPACER-BEARING

$38.99

$

Usually ships in 3-6 days

0

30

Toro 353-533

90 DEG FITTING

$

$

Currently unavailable

31

Toro 43-6750

BEARING-TAPER, CUP

$83.99

$

Usually ships in 3-6 days

0

32

Toro 254-66

CUP-BEARING, ROLLER

$17.99

$

Usually ships in 3-6 days

0

33

Toro 254-65

BEARING-ROLLER, CONE

$74.99

$

Usually ships in 3-6 days

0

34

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

35

Toro 21-8090

SHIM-BEARING, DIFFERENTIAL (.003)

$1.49

$

Usually ships in 3-6 days

0

36

Toro 21-8100

SHIM-BEARING, DIFFERENTIAL (.005)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 21-8110

SHIM-BEARING, DIFFERENTIAL (.010)

$4.99

$

Usually ships in 3-6 days

0

38

Toro 21-8120

SHIM-BEARING, DIFFERENTIAL (.030)

$7.49

$

Usually ships in 3-6 days

0

39

Ring Gear

$

$

Not available

40

Toro 46-3330

VENT TUBE ASM

$

$

Not available

41

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

42

Toro 289-38

PIPE NIPPLE

$

$

Not available

43

Toro 43-6850

HSG TUBE & PAD LWR B

$1975.99

$

Usually ships in 3-6 days

0

Toro 43-6510

Gear & Pinion Assembly (Incl. Ref. #12 & 39)
(Superseded to 92-4848)

Note: Not illustrated

$1844.99

$

Usually ships in 3-6 days

0
