30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) CUTTING UNIT MODEL NO. 30560 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

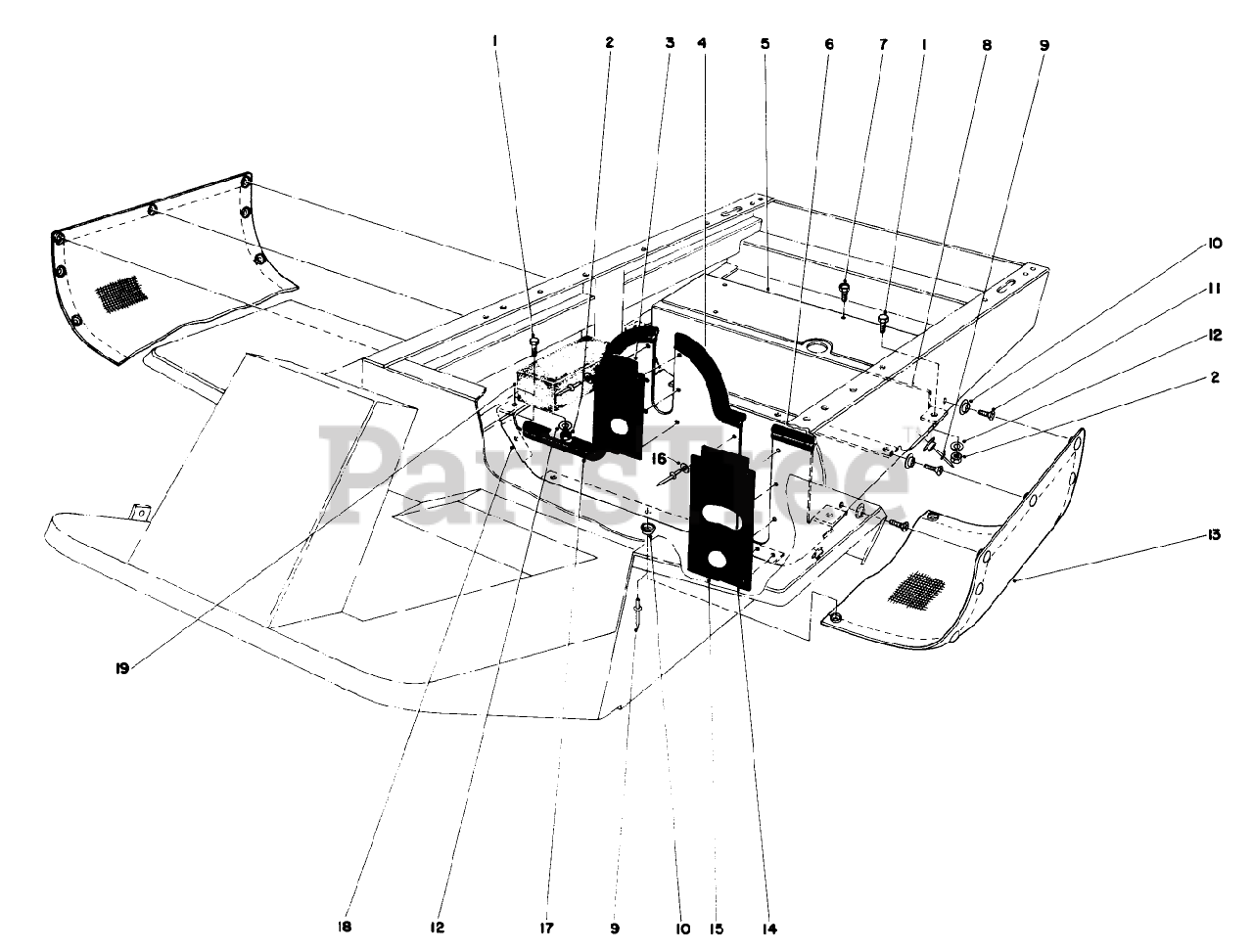

CUTTING UNIT MODEL NO. 30560 Parts Diagram

  • Title

1

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-8170

FLAP

$

$

Not available

4

Toro 46-8200

TRIM SEAL

$

$

Not available

5

Toro 41-8980

Grass Shield-Engine

$

$

Not available

6

Toro 46-8190

TRIM SEAL

$

$

Not available

7

Toro 32140-40

SCREW-HH

$

$

Currently unavailable

8

Toro 41-9050

Shield Assembly Rear (Incl. Ref. #9 & 10)

$

$

Not available

9

Toro 3290-55

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

10

Toro 41-9060

SNAP STUD

$

$

Not available

11

Toro 32104-91

Self Tapping Screw

$

$

Not available

12

Toro 3253-29

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 41-8920

GRASS SCREEN BAG

$

$

Not available

14

Toro 46-8150

LH FLAP

$

$

Not available

15

Toro 46-8160

RH FLAP

$

$

Not available

16

Toro 5-1254

WASHER

$

$

Not available

17

Toro 46-8210

TRIM SEAL

$

$

Not available

18

Toro 46-8180

Shield Assembly Front (Incl. Ref. #34, 6, 9-10 & 14-18)

$

$

Not available

19

Toro 46-8130

SIDE FOAM

$

$

Not available
