30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

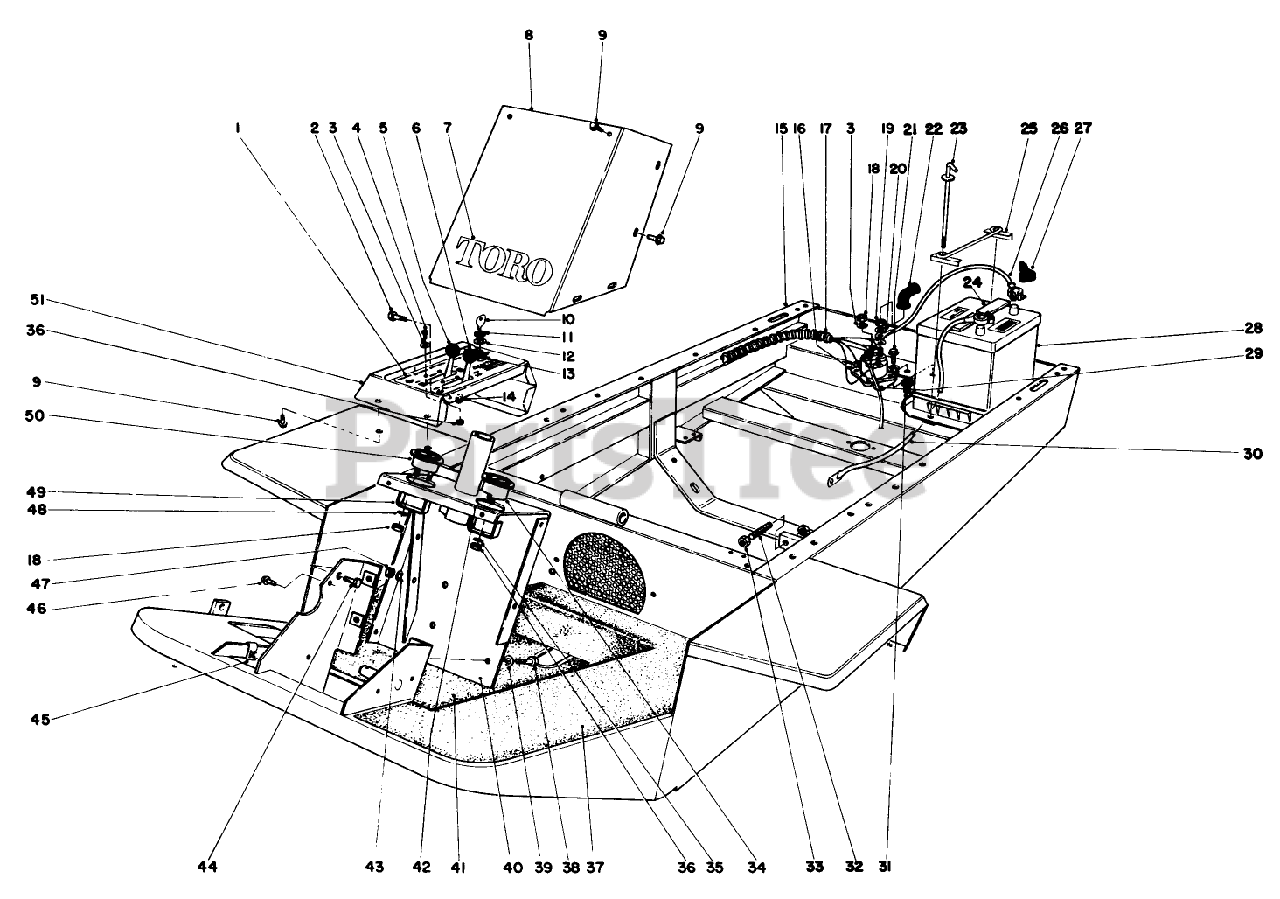

INSTRUMENT PANEL AND STEERING POST ASSEMBLY Parts Diagram

  • Title

1

Toro 44-9370

Decal-Instrument Panel
(Superseded to 68-7350)

$

$

Not available

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

4

Toro 3251-3

10-24 X 5/8 PAN HD MS

$0.99

$

In Stock, only 2 left!

0

5

Toro 27-4430

CHOKE CONTROL

$

$

Not available

6

Toro 44-2490

THROTTLE CONTROL

$

$

Not available

7

Toro 27-4600

DECAL

$

$

Not available

8

Toro 41-8900

Tower Cover
(Superseded to 41-8900-01)

$213.99

$

Usually ships in 3-6 days

0

9

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

11

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

12

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

13

Toro 23-0660

SWITCH-STARTER

$22.99

$

In Stock, only 1 left!

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 41-8780

Frame

$

$

Not available

16

Toro 28-5650

SOLENOID

$175.99

$

Usually ships in 3-6 days

0

17

Toro 41-8890

WIRE HARNESS

$

$

Not available

18

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

19

Toro 3218-13

NUT-JAM, BRASS

$1.49

$

Usually ships in 3-6 days

0

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 218-331

BATTERY BOOT

$

$

Currently unavailable

23

Toro 27-8100

BATTERY BOLT WA B

$

$

Not available

24

Toro 239-19

PUSH-ON BATTERY CAP

$

$

Currently unavailable

25

Toro 27-5380

BATTERY HOLD DOWN WA

$85.99

$

Usually ships in 3-6 days

0

26

Toro 39-8860

BATT/SOLENOID WIRE

$

$

Not available

27

Toro 28-1280

BOOT-CABLE, BATTERY

$

$

Not available

28

Toro 27-5180

Battery
(Superseded to 55-7420)

$

$

Not available

29

Toro 27-5110

SOLENOID TO START WIR

$

$

Not available

30

Toro 27-5090

BATTERY GROUND WIRE

$49.99

$

Usually ships in 3-6 days

0

31

Toro 32117-1

NUT-INSERT

$

$

Not available

32

Toro 27-6940

STOP PIN PP

$

$

Not available

33

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

34

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

35

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

37

Toro 27-3250

NON SKID (TUNNEL)

$

$

Not available

38

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

39

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

40

Toro 42-2580

Steering Post
(Superseded to 42-2580-01)

$459.99

$

Usually ships in 3-6 days

0

41

Toro 27-3260

NON-SKID-FLOOR

$

$

Not available

42

Toro 41-8910

INSTRUCTION DECAL

$

$

Not available

43

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

44

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

45

Toro 3290-192

SPEED NUT

$

$

Not available

46

Toro 32104-60

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

47

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

48

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

49

Toro 39-9600

MTG CLAMP F/W GUAGE

$

$

Not available

50

Toro 33-0990

AMMETER GAUGE ASSY

$

$

Not available

51

Toro 27-4400

Instrument Panel
(Superseded to 46-3350-01)

$143.99

$

Usually ships in 3-6 days

0
