30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) CUTTING UNIT MODEL NO. 30560 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

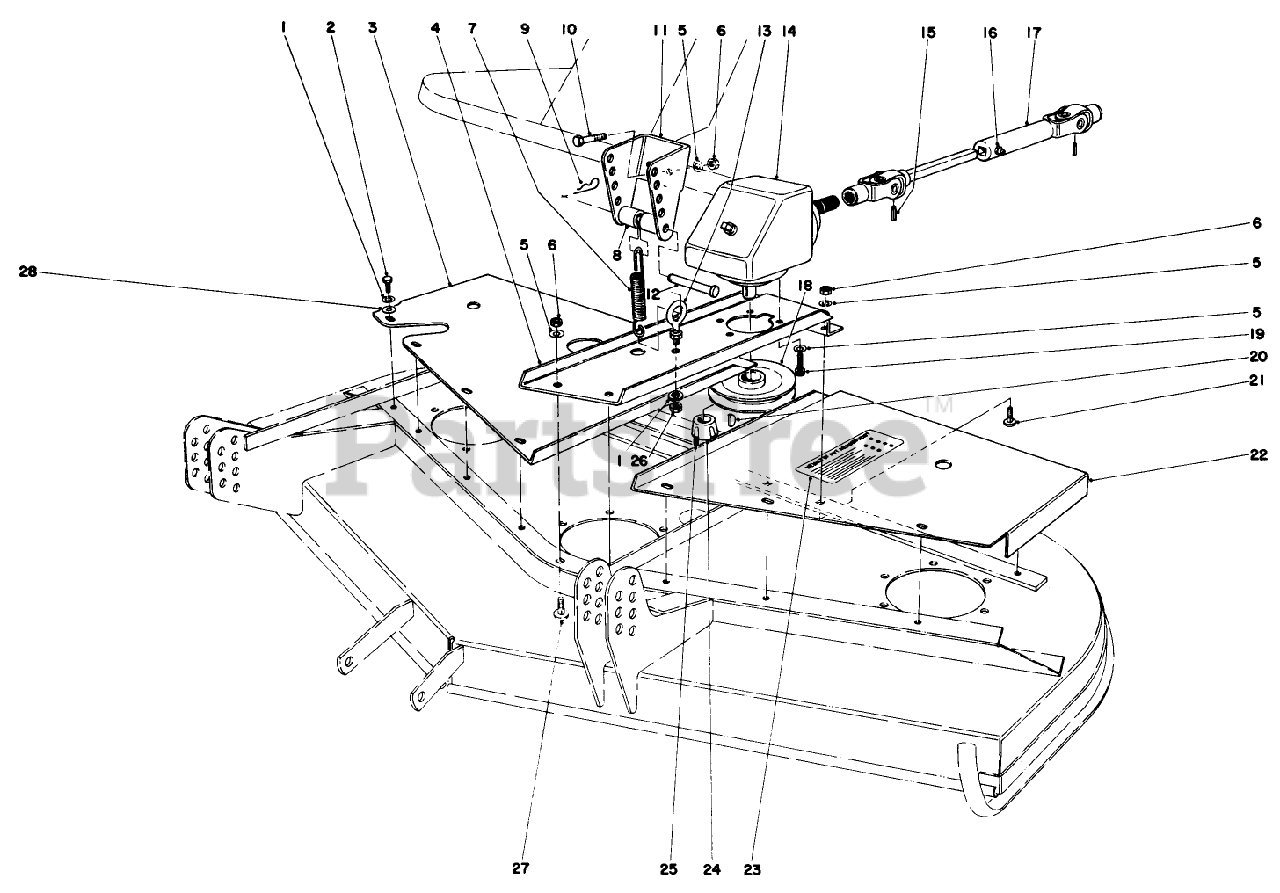

CUTTING UNIT MODEL NO. 30560 Parts Diagram

  • Title

1

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

2

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

3

Toro 40-0410

RH COVER WA R

$

$

Not available

4

Toro 40-0360

Base-Bear Box

$

$

Not available

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

7

Toro 40-0460

Extension Spring

$

$

Not available

8

Toro 40-0300

SPACER

$

$

Not available

9

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

10

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 40-0450

Bracket-Spring
(Superseded to 46-2620)

$106.99

$

Usually ships in 3-6 days

0

12

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

13

Toro 3290-407

Eye Bolt

$

$

Not available

14

Toro 8-0909

GEAR BOX ASM

$

$

Not available

15

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

17

Toro 274520

Pivot Nut

$

$

Currently unavailable

18

Toro 27-6110

PULLEY WA BO

$

$

Not available

19

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

20

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

21

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

22

Toro 42-4660

LH COVER WA R

$202.99

$

Usually ships in 3-6 days

0

23

Toro 42-6860

DECAL

$

$

Not available

24

Toro 27-6140

BUSHING-LOCK, TAPER

$103.99

$

Usually ships in 3-6 days

0

25

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

26

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

27

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
