30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) SEAT MOUNT ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

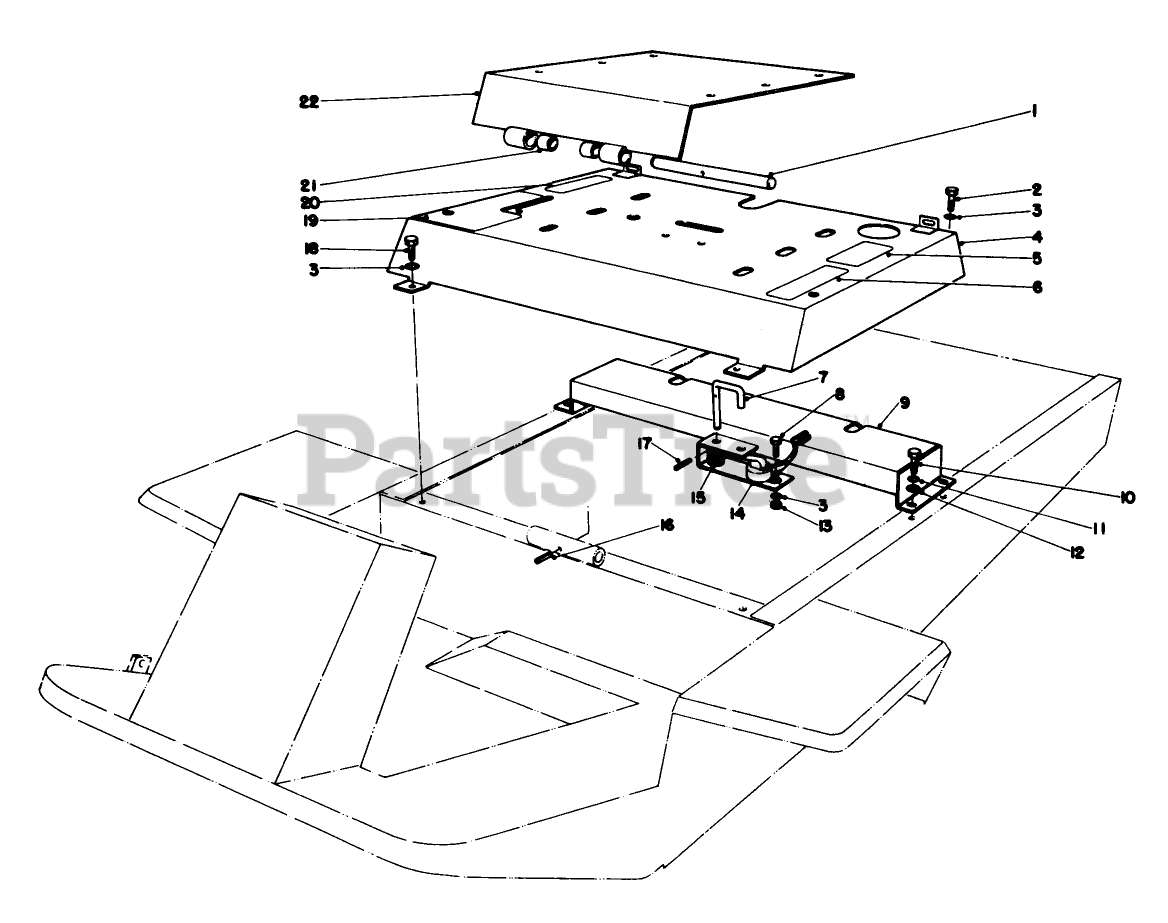

SEAT MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 38-2470

Cover-Seat Support (Incl.Ref.#5,6,19 & 20)

$

$

Not available

5

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

6

Toro 274620

Decal-Caution

$

$

Currently unavailable

7

Toro 38-3170

SEAT SWITCH PIN

$

$

Not available

8

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Toro 37-9770

Seat Support
(Superseded to 37-9770-01)

$

$

Not available

10

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

14

Toro 33-0290

SEAT SWITCH

$

$

Not available

15

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

16

Toro 321214

Pin-Roll

$

$

Currently unavailable

17

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

18

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

19

Toro 27-4390

Decal Hydraulic Lift
(Superseded to 68-7320)

$

$

Not available

20

Toro 28-3290

Decal Caution
(Superseded to 67-1710)

$8.99

$

Usually ships in 3-6 days

0

21

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

22

Toro 384020

Seat Mount (Incl.Ref.#21)

$

$

Currently unavailable
