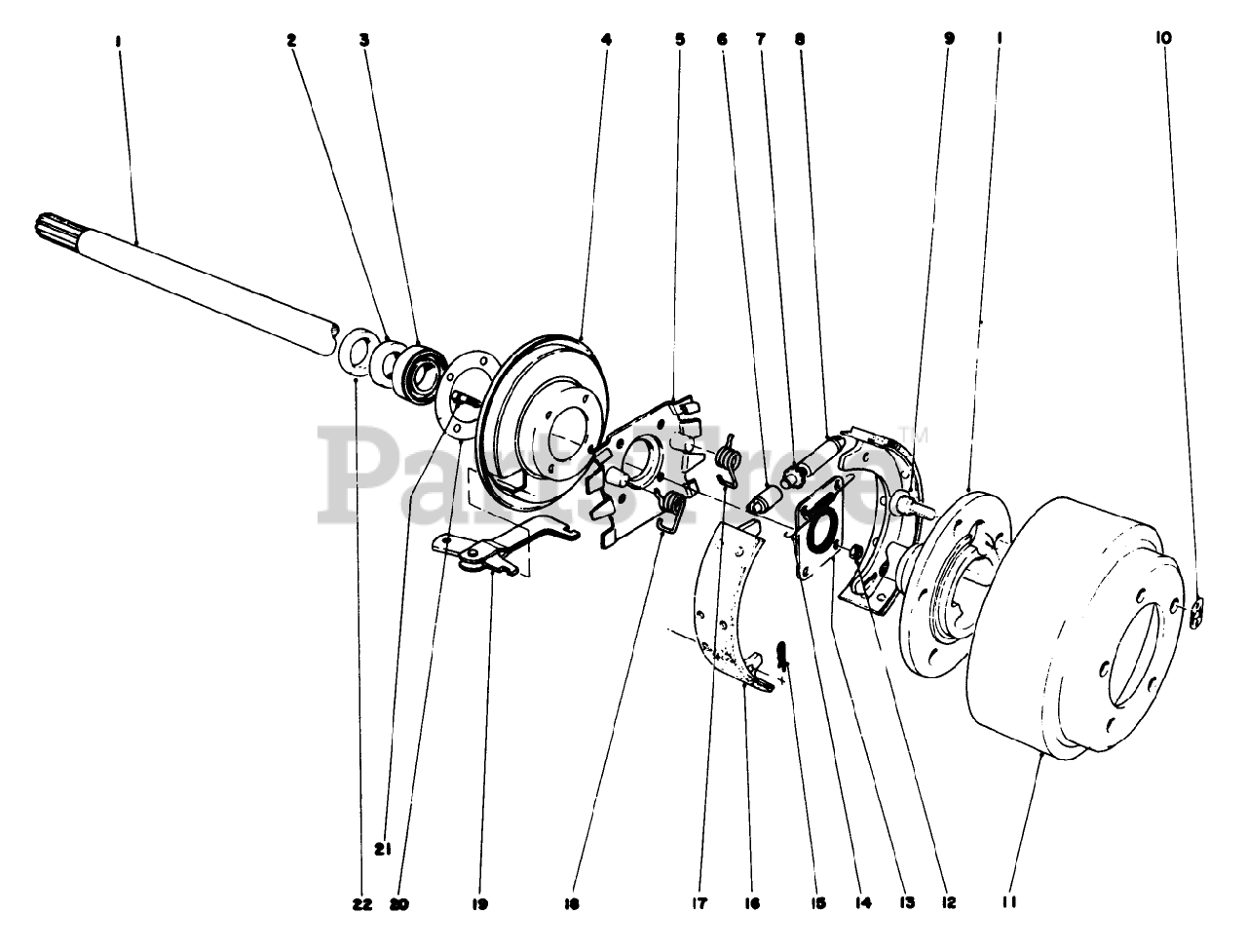

30775 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) BRAKE ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 27-6860

AXLE SHAFT L.H.

$

$

Not available

Toro 27-6850

RH AXLE SHAFT

Note: Not illustrated

$1105.99

$

Usually ships in 3-6 days

0

2

Toro 21-8330

Oil Seal
(Superseded to 99-6969)

$17.99

$

In Stock, only 2 left!

0

3

Toro 21-8180

BEARING ASM

$79.99

$

Usually ships in 3-6 days

0

4

Toro 21-9450

SHIELD-DUST

$54.99

$

Usually ships in 3-6 days

0

5

Toro 40-2190

Torque Spider
(Superseded to 43-6810)

$165.99

$

Usually ships in 3-6 days

0

6

Toro 21-9390

SOCKET-SCREW, ADJUSTING

$6.99

$

Usually ships in 3-6 days

0

7

Toro 21-9370

SCREW-ADJUSTING

$24.99

$

Usually ships in 3-6 days

0

8

Toro 21-9380

NUT-PIVOT

$32.99

$

Usually ships in 3-6 days

0

9

Toro 242-34

STUD-DRIVE

$14.99

$

In Stock, Qty 6

0

10

Toro 21-8360

CLIP-RETAINING

$1.99

$

Usually ships in 3-6 days

0

11

Toro 28-0680

DRUM-BRAKE
(Superseded to 28-0680-03)

$433.99

$

Usually ships in 3-6 days

0

12

Toro 32152-5

NUT-HEX

$3.49

$

In Stock, only 2 left!

0

13

Toro 28-0670

SEAL-GREASE

$20.99

$

Usually ships in 3-6 days

0

14

Toro 21-9440

SPRING-SCREW, ADJUSTING

$14.99

$

Usually ships in 3-6 days

0

15

Toro 21-9460

RETAINER-LEVER, BRAKE

$2.49

$

Usually ships in 3-6 days

0

16

Toro 21-9470

Package-Lined Shoes

$

$

Not available

17

Toro 21-9420

SPRING-RETURN, LH

$21.99

$

Usually ships in 3-6 days

0

18

Toro 21-9430

SPRING-RETURN, RH

$21.99

$

In Stock, only 1 left!

0

19

Toro 27-6880

BRAKE LEVER ASSY

$

$

Not available

20

Toro 21-8320

Gasket Wheel Baaring

$

$

Not available

21

Toro 28-0660

Screw
(Superseded to 99-5691)

$7.99

$

Usually ships in 3-6 days

0

22

Toro 24-8840

RING-RETAINING, WHEEL BEARING

$45.99

$

Usually ships in 3-6 days

0
