30773 - Toro 52" Recycler Mower Deck for Groundsmaster 120 (SN: 079000001 - 079999999) (1997) DECK AND SPINDLE ASM Parts Diagram

52" Recycler Mower Deck for Groundsmaster 120

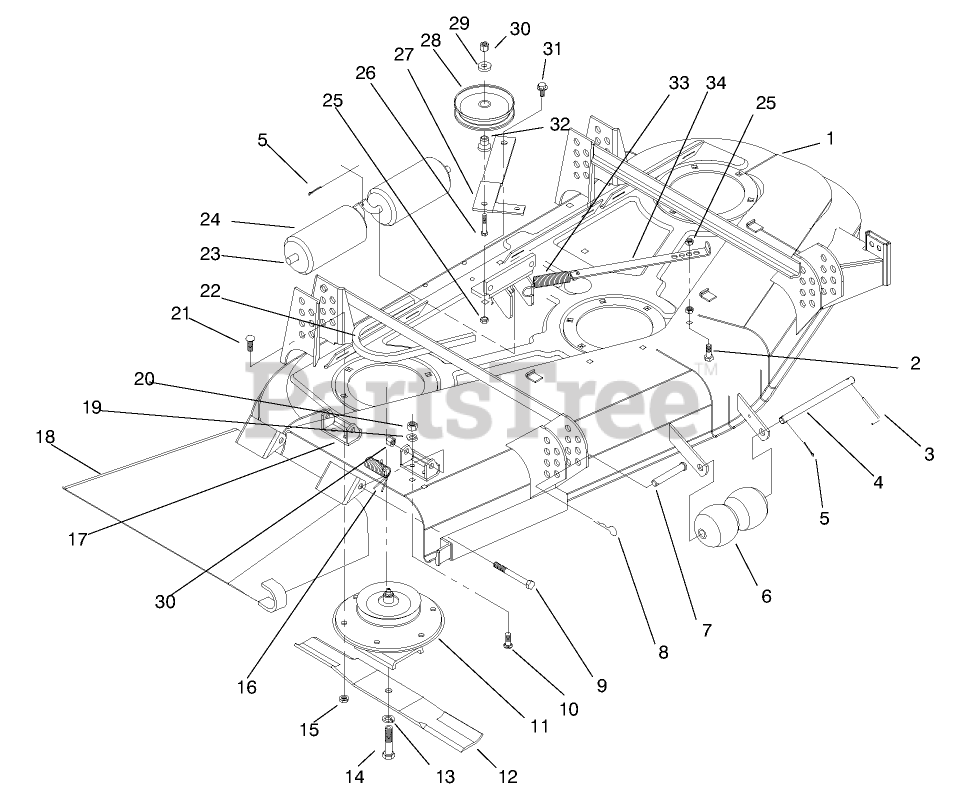

DECK AND SPINDLE ASM Parts Diagram

  • Title

1

Toro 95-2836

52" Rec Deck ASM
(Superseded to 94-6025)

$

$

Not available

2

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

3

Toro 57-0690

PIN-SPECIAL

$4.99

$

In Stock, only 4 left!

0

4

Toro 40-6400

SHAFT-ROLLER

$39.99

$

In Stock, Qty 5

0

5

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

6

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

7

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

8

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

9

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

11

Toro 27-0871

SPINDLE HSG ASM

$

$

Not available

12

Toro 92-7961

BLADE
(Superseded to 92-7961-03)

$45.99

$

In Stock, Qty 6

0

13

Toro 3253-27

WASHER-LOCK

$2.99

$

In Stock, Qty 6

0

14

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

15

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

17

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

18

Toro 40-6200-01

Deflector

$

$

Currently unavailable

20

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

21

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

22

Toro 56-5560

V-BELT, DECK

$131.99

$

Usually ships in 3-6 days

0

23

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

24

Toro 36-1740

ROLLER-DECK

$45.99

$

In Stock, only 3 left!

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

26

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 9

0

27

Toro 56-5520

Lever-Deck
(Superseded to 56-5520-01)

$

$

Not available

28

Toro 65-5940

PULLEY-IDLER

$43.99

$

In Stock, Qty 7

0

29

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

30

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

31

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

32

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 16

0

33

Toro 54-1160

SPRING-EXTENSION, DECK

$55.99

$

In Stock, only 2 left!

0

34

Toro 56-5540

Anchor-Spring
(Superseded to 56-5540-01)

$

$

Not available
