30768 - Toro 52" Rear-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) CLUTCH ASSEMBLY NO. 54-0220 Parts Diagram

52" Rear-Discharge Mower Deck

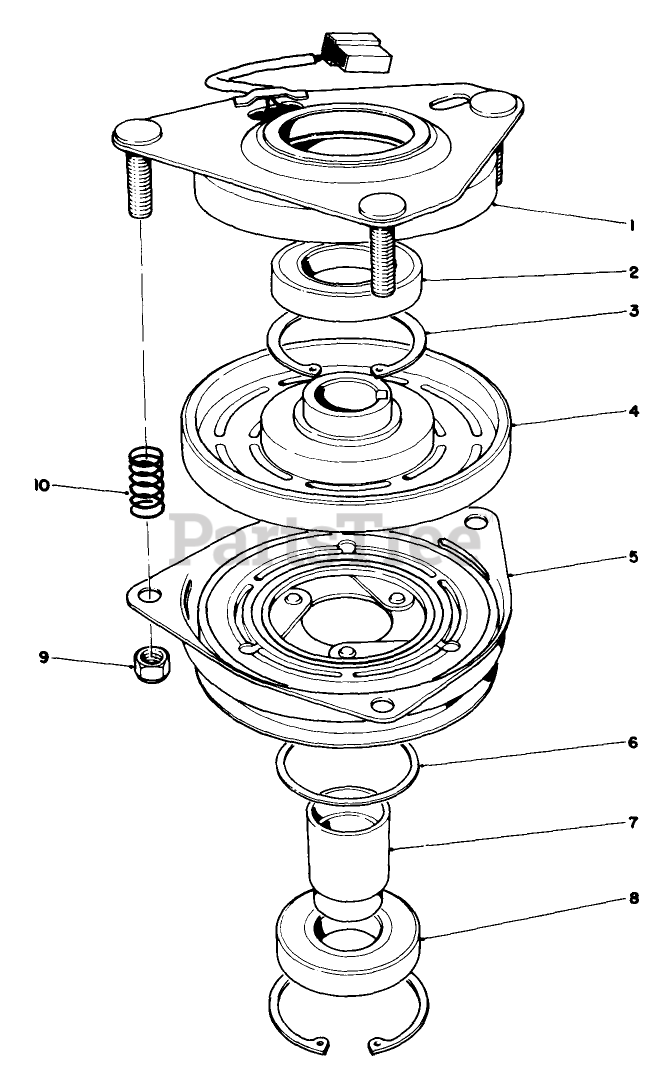

CLUTCH ASSEMBLY NO. 54-0220 Parts Diagram

  • Title

1

Toro 54-0230

Field Assy. (Incl. Ref. #2 & 3)

$415.99

$

Usually ships in 3-6 days

0

2

Toro 251-292

BEARING-FIELD

$134.99

$

Usually ships in 3-6 days

0

3

Toro 44-8310

RING-RETAINING

$

$

Not available

4

Toro 44-8360

Field Coil-Rotor & Bearing Assembly (Incl. Ref. #1)

$669.99

$

Usually ships in 3-6 days

0

5

Toro 44-8370

Armature & Pulley Assembly (Incl.Ref.#3, 6, 7 & 8)

$

$

Not available

6

Toro 44-8330

SPACER-BEARING, PULLEY

$

$

Not available

7

Toro 44-8340

COLLAR-BEARING

$

$

Not available

8

Toro 251-291

BEARING-PULLEY
(Superseded to 251-312)

$24.99

$

Usually ships in 3-6 days

0

9

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 44-8320

SPRING

$9.49

$

Usually ships in 3-6 days

0

1

Toro 74-0870

Wire Harness

$

$

Not available

2

Toro 28-3892

BATTERY/GROUND WIRE

$31.99

$

Usually ships in 3-6 days

0

3

Toro 54-2030

WIRE ASM

$

$

Not available

4

Toro 54-2031

WIRE ASM

$

$

Not available
