30768 - Toro 52" Rear-Discharge Mower Deck (SN: 006000001 - 006999999) (1986) Carrier Frame Assembly Parts Diagram

52" Rear-Discharge Mower Deck

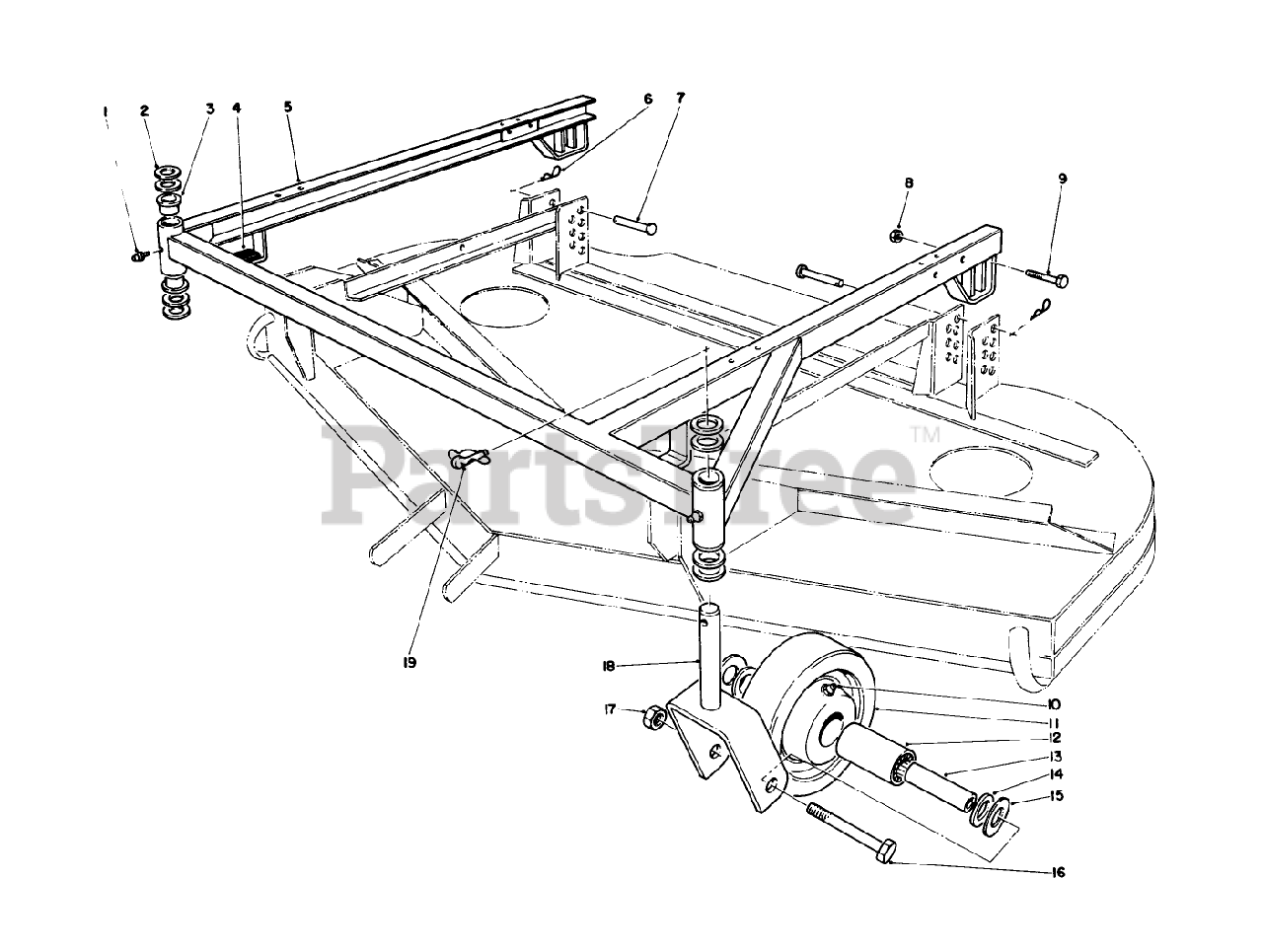

Carrier Frame Assembly Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

3

Toro 28-9290

See Supercession: 94-1291
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

4

Toro 54-2700

See Supercession: 74-0340
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

5

Toro 56-5710

DISCONTINUED

$

$

Not available

6

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

7

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

8

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

11

Toro 27-1190

WHEEL

$91.99

$

Usually ships in 3-6 days

0

12

Toro 27-1210

ROLLER BEARING

$

$

Not available

13

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 2 left!

0

14

Toro 27-1180

BEARING RETAINER

$

$

Not available

15

Toro 27-1170

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

16

Toro 3216-15

SCREW-HH

$

$

Not available

17

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

18

Toro 40-0370

See Supercession: 40-0370-01
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

19

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

Toro 27-1050

CASTOR WHEEL

Note: Not illustrated

$139.99

$

Usually ships in 3-6 days

0
