30768 - Toro 52" Rear-Discharge Mower Deck (SN: 000000001 - 000999999) (1990) FRAME & STEERING ASSEMBLY Parts Diagram

52" Rear-Discharge Mower Deck

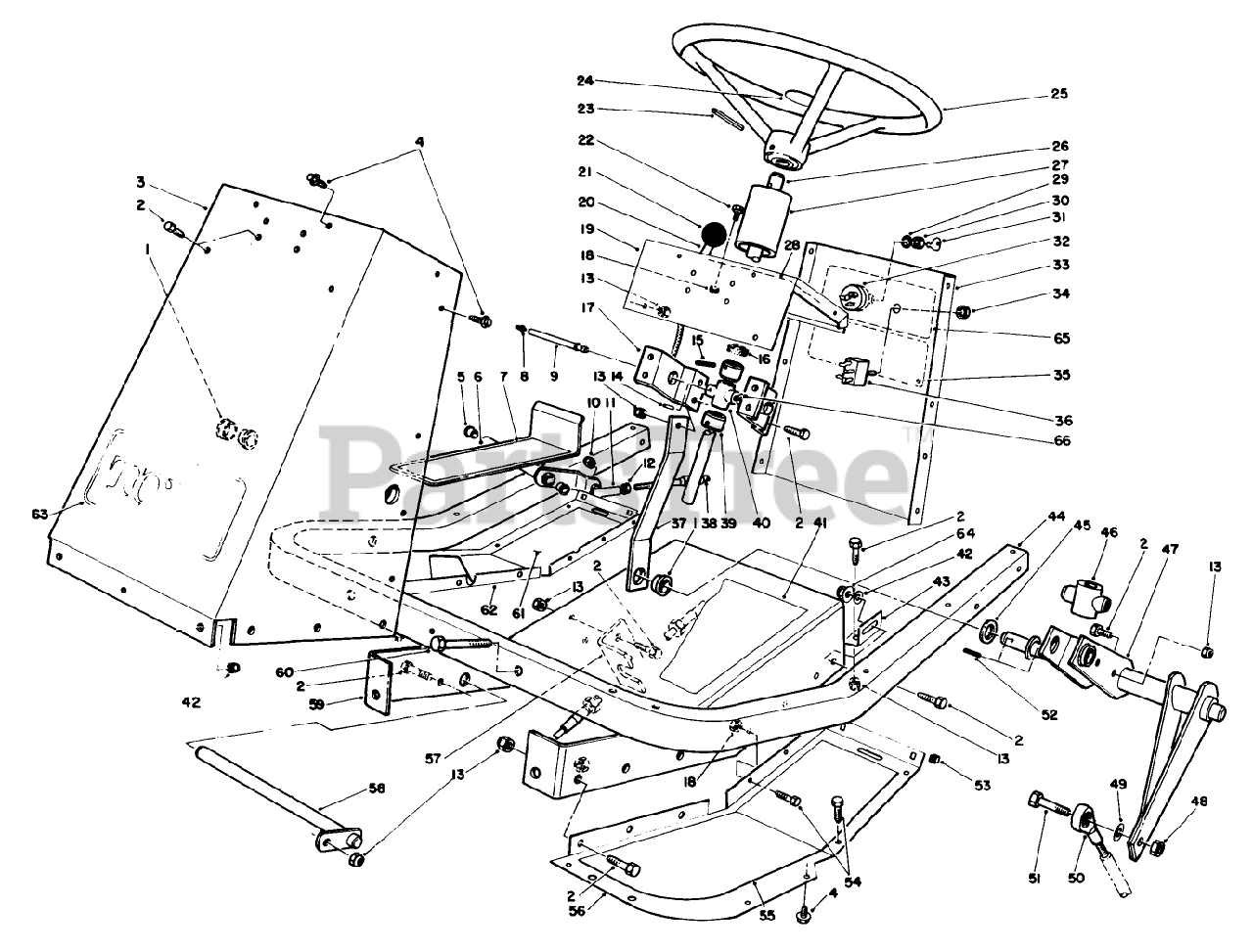

FRAME & STEERING ASSEMBLY Parts Diagram

  • Title
1

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 54-1900

Tower-Front
(Superseded to 54-1900-01)

$

$

Not available

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

5

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

6

Toro 59-1580

Traction Pedal (Incl. Ref. #5)

$

$

Not available

7

$

$

Not available

8

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

9

Toro 59-1610

TUBE ZERK

$

$

Not available

10

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

11

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

12

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 32121-20

3/32 X 9/16 ROLL PIN

$0.99

$

Usually ships in 3-6 days

0

15

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 21-9260

COVER-DUST

$8.99

$

Usually ships in 3-6 days

0

17

Toro 54-1950

BRG SUPT BRKT

$

$

Not available

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

19

Toro 54-1000

Tower-Top
(Superseded to 54-1000-01)

$

$

Not available

20

Toro 54-1450

CONTROL-CHOKE,THROTTLE

$

$

Not available

21

$9.99

$

Usually ships in 3-6 days

0

22

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

23

Toro 32121-10

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

24

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

25

Toro 76-1420

WHEEL-STEERING

$217.99

$

Usually ships in 3-6 days

0

26

Toro 62-6780

STEERING SHAFT

$453.99

$

Usually ships in 3-6 days

0

27

Toro 47-1980

STRG. SHAFT COVER

$49.99

$

Usually ships in 3-6 days

0

28

Toro 54-0860

THROTTLE DECAL

$

$

Not available

29

Washer-Lock

$

$

Not available

30

Nut-Hex

$

$

Not available

31

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

32

Toro 27-2360

Switch-Ignition (Incl. Ref. #29-31)

$49.99

$

In Stock, only 1 left!

0

33

Toro 54-1960

REAR TOWER PANEL R

$

$

Not available

34

Toro 218-500

NUT
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

35

Toro 54-0870

SWITCH DECAL

$

$

Not available

36

Toro 37-2610

Switch
(Superseded to 92-6328)

$

$

Not available

37

Toro 54-1340

Link-Steering
(Superseded to 54-1340-03)

$62.99

$

Usually ships in 3-6 days

0

38

Toro 54-2640

TRACT CONT.CABLE

$

$

Not available

39

Toro 28-3940

STRG SHAFT COLLAR

$

$

Not available

40

Toro 60-9050

BRG STEERING SHAFT

$

$

Not available

41

Toro 54-0880

TUNNEL DECAL

$

$

Not available

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 54-1440

TUNNEL BRKT

$18.99

$

Usually ships in 3-6 days

0

44

Toro 60-9140

Frame-Footrest
(Superseded to 60-9140-01)

$

$

Not available

45

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

46

Toro 54-2630

STEER.SHAFT FOLLOWER

$

$

Not available

47

Toro 54-2040

Follower Lever
(Superseded to 54-2040-03)

$

$

Not available

48

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

49

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

50

Toro 251-304

BALL JOINT LH

$89.99

$

Usually ships in 3-6 days

0

51

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

52

Toro 32121-77

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

53

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

54

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Toro 54-2260

FOOT REST PAD LH

$

$

Not available

56

Toro 54-1470

Footrest-L.H.
(Superseded to 54-1470-01)

$

$

Not available

57

Toro 54-1770

TRACT CABLE BRKT

$

$

Not available

58

Toro 59-1550

PEDAL.SHAFT WA

$

$

Not available

59

Toro 60-9150

Tunnel
(Superseded to 60-9150-01)

$

$

Not available

60

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

61

Toro 54-2270

FOOT REST PAD RH

$

$

Not available

62

Toro 60-9160

Footrest-R.H.
(Superseded to 80-4910-01)

$

$

Not available

63

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

64

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

65

Toro 54-0860

THROTTLE DECAL

$

$

Not available

66

Toro 3290-440

WASHER-BELLEVILLE

$9.99

$

Usually ships in 3-6 days

0
