30761 - Toro 44" Two Stage Snow Thrower for ProLine 118 (SN: 039000001 - 039999999) (1993) GEAR BOX ASSEMBLY Parts Diagram

44" Two Stage Snow Thrower for ProLine 118

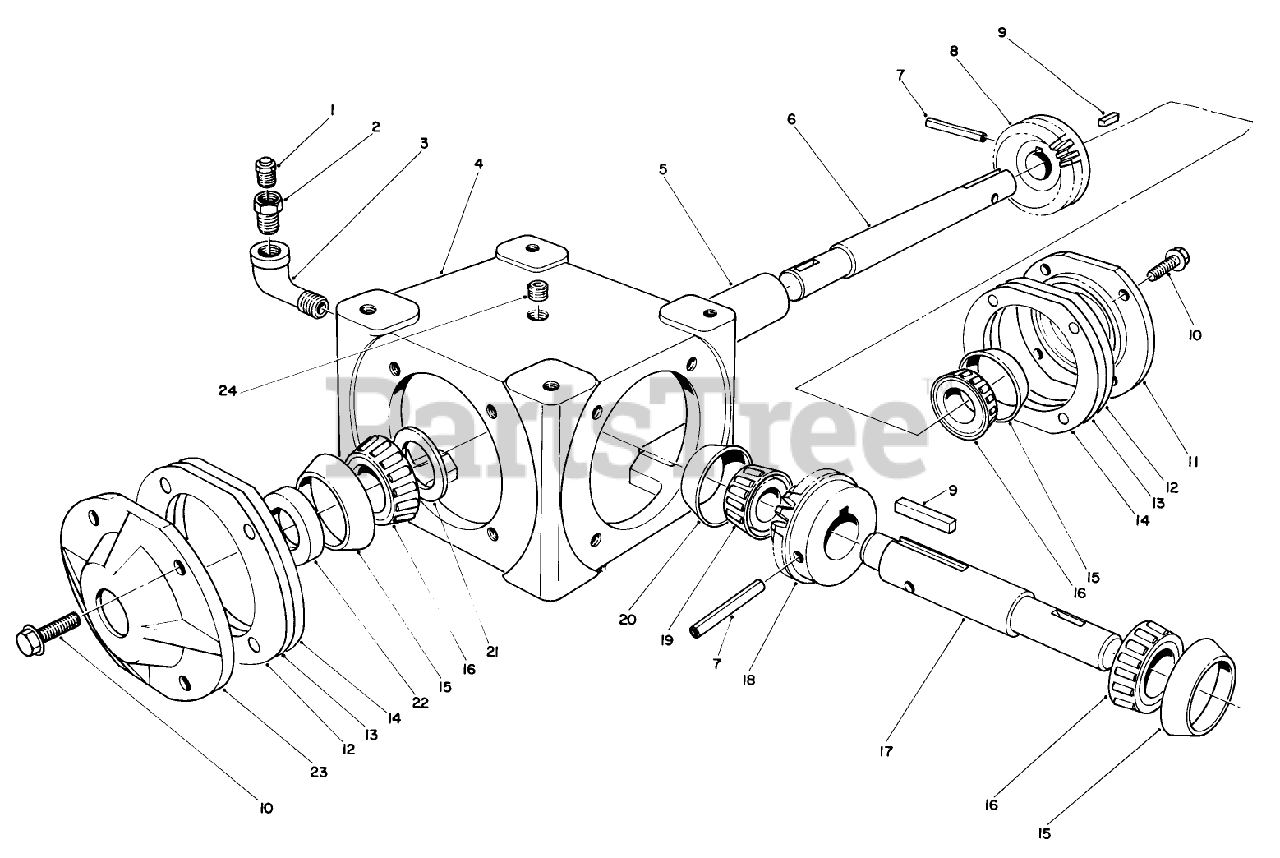

GEAR BOX ASSEMBLY Parts Diagram

  • Title
1

Toro 62-3520

Valve
(Superseded to 302-34)

$11.99

$

Usually ships in 3-6 days

0

2

Toro 62-3550

BUSHING

$

$

Not available

3

Toro 62-3540

Elbow-Street

$

$

Not available

4

Toro 62-3300

HOUSING
(Superseded to 98-1340)

$

$

Not available

5

Toro 62-3480

SPACER

$

$

Not available

6

Toro 62-3460

SHAFT

$

$

Not available

7

$

$

Not available

8

$

$

Not available

9

Toro 62-3380

Key
(Superseded to 10-7070)

$1.49

$

In Stock, Qty 8

0

10

Toro 62-3310

SCREW-HH (OBS, C/R TO 3234-5)
(Superseded to 323-45)

$4.49

$

In Stock, only 1 left!

0

11

$

$

Not available

12

Toro 62-3420

GASKET

$13.99

$

In Stock, only 2 left!

0

13

Toro 62-3430

GASKET

$7.49

$

Usually ships in 3-6 days

0

14

Toro 62-3440

GASKET

$

$

Not available

15

Toro 62-3340

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 11

0

16

Toro 62-3330

Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 18

0

17

Toro 62-3390

SHAFT

$

$

Not available

18

$

$

Not available

19

Toro 62-3370

Cone
(Superseded to 254-68)

$33.99

$

In Stock, only 2 left!

0

20

Toro 62-3360

Bearing Cup
(Superseded to 254-67)

$16.99

$

In Stock, only 2 left!

0

21

Toro 62-3470

WASHER

$

$

Not available

22

Toro 62-3400

Seal
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

23

$

$

Not available

24

Toro 62-3490

PLUG (OBS, C/R TO 281-10)
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0
