30761 - Toro 44" Two Stage Snow Thrower for ProLine 118/120 (SN: 069000001 - 069999999) (1996) AUGER ASSEMBLY Parts Diagram

44" Two Stage Snow Thrower for ProLine 118/120

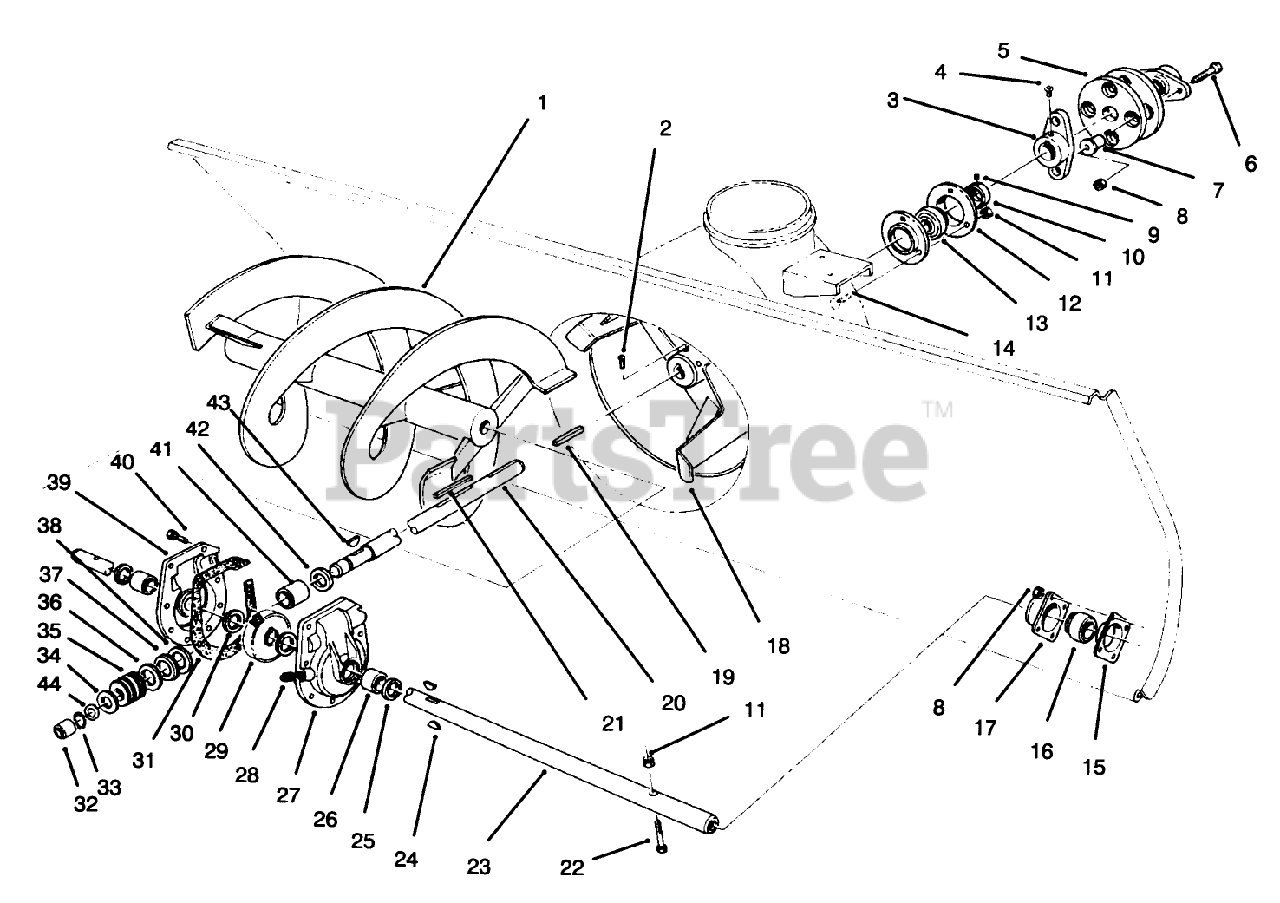

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 57-3300

Auger RH
(Superseded to 57-3300-03)

$846.99

$

Usually ships in 3-6 days

0

Toro 57-3370

Auger LH
(Superseded to 57-3370-03)

Note: Not illustrated

$

$

Not available

2

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

3

Toro 61-4000

HUB WA (KEY) R
(Superseded to 61-4000-01)

$

$

Not available

4

Toro 3241-5

SCREW-SET

$2.49

$

Usually ships in 3-6 days

0

5

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$53.99

$

In Stock, Qty 20+

0

6

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

7

Toro 27-6601

SPACER-COUPLING, RUBBER

$26.99

$

Usually ships in 3-6 days

0

8

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

9

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

10

Toro 251-231

EXT LOCKING COLLAR

$33.99

$

In Stock, only 1 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 251-229

BRG FLANGE

$40.99

$

In Stock, only 1 left!

0

13

Toro 251-224

BALL BRG W/COLLAR

$58.99

$

Usually ships in 3-6 days

0

14

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 2 left!

0

16

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 7

0

17

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 2 left!

0

18

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$670.99

$

Usually ships in 3-6 days

0

19

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

20

Toro 57-3490

IMPELLER SHAFT

$

$

Not available

21

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

22

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

23

Toro 57-3500

SHAFT-AUGER

$577.99

$

Usually ships in 3-6 days

0

24

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 2 left!

0

25

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 16

0

26

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

27

Toro 37-8860

Gear Case & Bushing Assy. (Incl. Ref. #25 & 26)
(Superseded to 14-2459)

$151.99

$

In Stock, only 2 left!

0

28

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

29

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 1 left!

0

30

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

31

Toro 92-9839

GASKET-GEAR BOX
(Superseded to 105-1404)

$31.99

$

In Stock, only 1 left!

0

32

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

33

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

34

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

35

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

36

Toro 252-77

THRUST-WASHER

$10.99

$

In Stock, only 2 left!

0

37

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

38

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

39

Toro 37-8850

Gear Case & Bushing Assy. (Incl. Ref. #25 & 26)
(Superseded to 14-2449)

$151.99

$

In Stock, only 2 left!

0

40

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

41

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

42

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 1 left!

0

43

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

44

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 16

0

Toro 57-3480

GEARBOX/SHAFT ASM

Note: Not illustrated

$

$

Not available
