30761 - Toro 44" Two Stage Snow Thrower for Groundsmaster 117 (SN: 020000001 - 029999999) (1992) CHUTE RING & DEFLECTOR ASSEMBLY Parts Diagram

44" Two Stage Snow Thrower for Groundsmaster 117

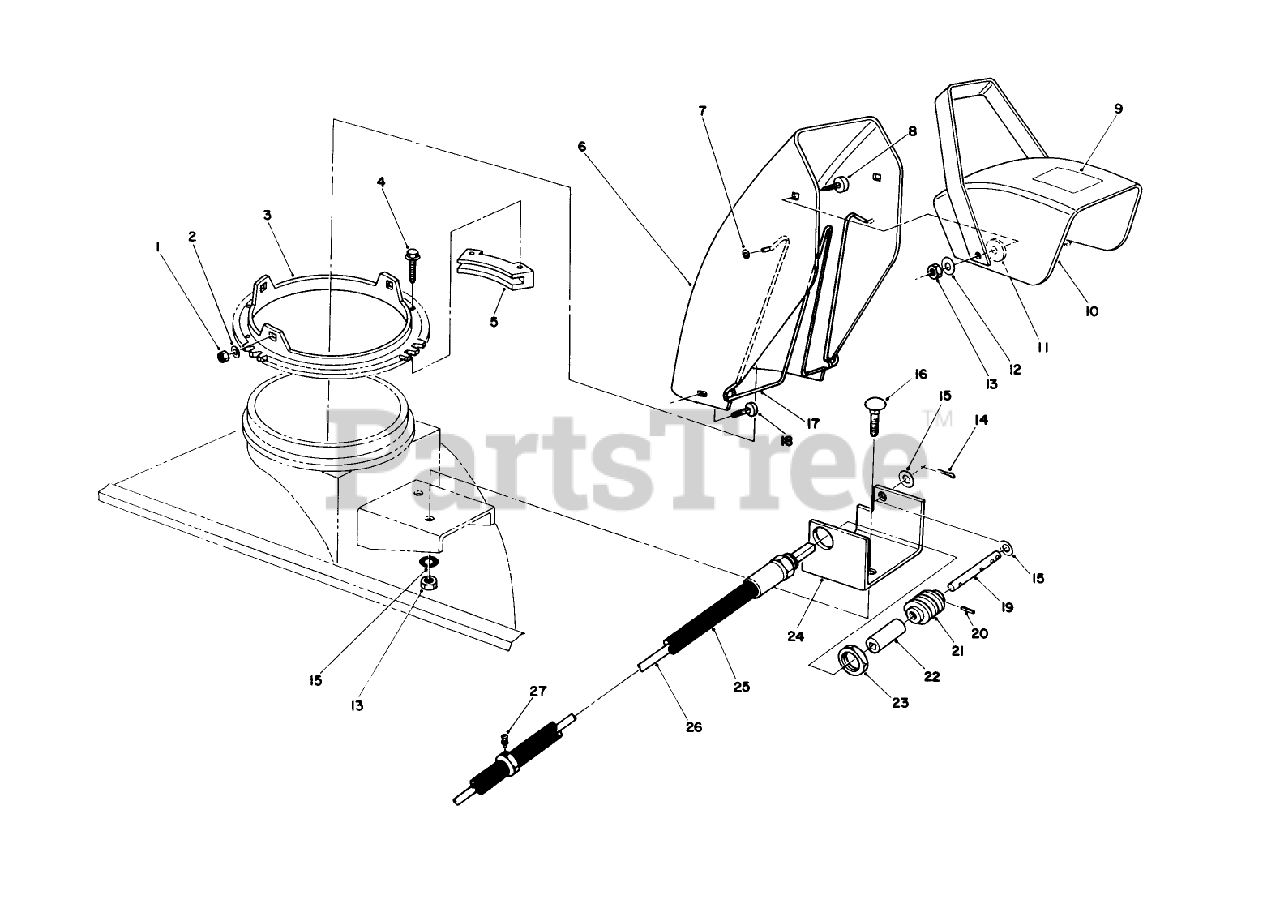

CHUTE RING & DEFLECTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 25-5290

Screw
(Superseded to 25-5290-01)

$70.99

$

Usually ships in 3-6 days

0

4

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

5

Toro 25-5450

RETAINER-CHUTE

$36.99

$

In Stock, only 2 left!

0

6

Toro 56-2600

Chute-Upper
(Superseded to 92-6335-01)

$189.99

$

Usually ships in 3-6 days

0

7

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

8

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

9

Toro 55-9650

Decal-Discharge
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

10

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

11

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

12

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

13

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 54-9770

CHUTE WIRE

$

$

Not available

18

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

19

Toro 61-4950

SHAFT-GEAR, WORM

$84.99

$

Usually ships in 3-6 days

0

20

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

21

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

22

Toro 61-4940

COUPLER

$85.99

$

Usually ships in 3-6 days

0

23

Toro 353-955

LOCKNUT

$22.99

$

Usually ships in 3-6 days

0

24

Toro 61-4930

WORM GEAR BRKT R

$

$

Not available

25

Toro 61-4870

HOSE ASM

$867.99

$

Usually ships in 3-6 days

0

26

Toro 61-8520

FLEX SHAFT

$

$

Not available

27

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0
