30760 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 90000001 - 99999999) (1979) Power Take Off Assembly Parts Diagram

Groundsmaster Rear-Engine Riding Mower

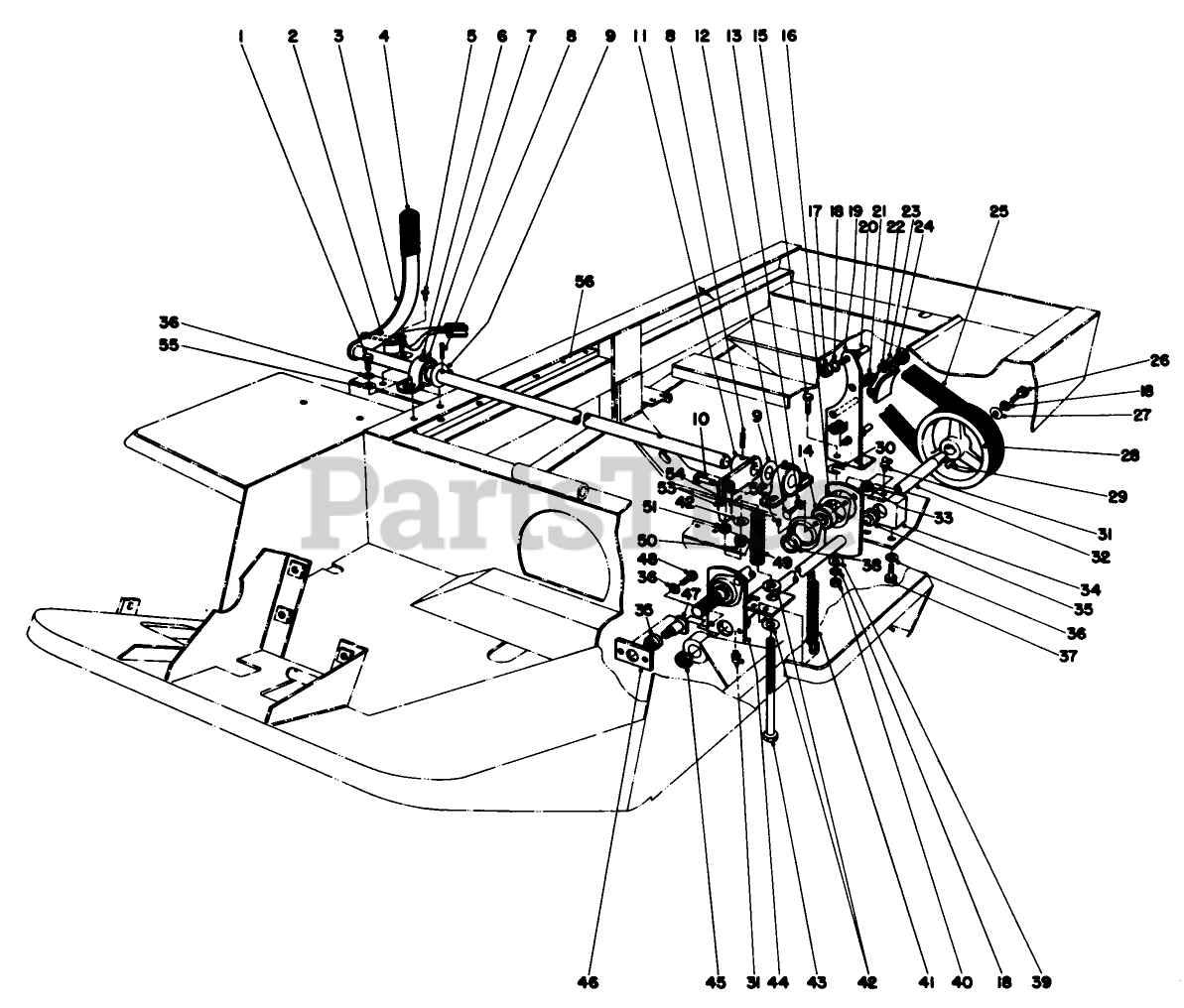

Power Take Off Assembly Parts Diagram

  • Title

1

Toro 3214

Bolt

$

$

Currently unavailable

2

Toro 33-0300

DISCONTINUED

$

$

Not available

3

Toro 274910

P.T.O. Lever

$

$

Currently unavailable

4

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 32104-11

Screw

$

$

Currently unavailable

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 251-269

BEARING

$

$

Not available

8

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

10

Toro 28342

Clevis Pin

$

$

Currently unavailable

11

Toro 27-4940

ENGAGE ARM WA

$250.99

$

Usually ships in 3-6 days

0

12

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

13

Toro 32534

Lockwasher

$

$

Currently unavailable

14

Toro 251-253

BEARING

$24.99

$

Usually ships in 3-6 days

0

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 251-255

FLANGE

$18.99

$

Usually ships in 3-6 days

0

17

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

18

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

19

Toro 27-8410

PTO BRAKE BRKT WA *BO

$245.99

$

Usually ships in 3-6 days

0

20

Toro 27-8450

DISCONTINUED

$

$

Not available

21

Toro 27-9220

COMP SPRING *O

$29.99

$

Usually ships in 3-6 days

0

22

Toro 33-0890

DISCONTINUED

$

$

Not available

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

25

Toro 27-4630

See Supercession: 41-9150
(Superseded to 41-9150)

$43.99

$

Usually ships in 3-6 days

0

26

Toro 323-18

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

27

Toro 29-4730

WASHER-FLAT

$17.99

$

Usually ships in 3-6 days

0

28

Toro 274530

P.T.O. Pulley

$

$

Currently unavailable

29

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

30

Toro 28-5640

SPECIAL WASHER

$

$

Not available

31

Toro 30240

Fitting-Grease

$

$

Currently unavailable

32

Toro 274980

Shaft P.T.O.

$

$

Currently unavailable

33

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

34

Toro 28-9050

DISCONTINUED

$

$

Not available

35

Toro 251-268

BEARING

$99.99

$

Usually ships in 3-6 days

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 251-77

COLLAR-LOCK, BEARING

$12.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

41

Toro 28-8950

DISCONTINUED

$

$

Not available

42

Toro 325641

Washer

$

$

Currently unavailable

43

Toro 27-7900

SCREW-ADJUSTING

$26.99

$

Usually ships in 3-6 days

0

44

Toro 37-0010

See Supercession: 44-9350
(Superseded to 44-9350)

$

$

Not available

45

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

46

Toro 27-6650

BRG RETAINER

$

$

Not available

47

Toro 27-6970

BEARING STUD

$

$

Not available

48

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

49

Toro 21-0400

See Supercession: 21-0400-01
(Superseded to 21-0400-01)

$22.99

$

Usually ships in 3-6 days

0

50

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

51

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

52

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

53

Toro 282-1

DISCONTINUED
(Superseded to 282-1-01)

$

$

Not available

54

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

55

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Toro 37-7060

See Supercession: 37-7060-01
(Superseded to 37-7060-01)

$

$

Not available
