30760 (52) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 00000001 - 09999999) (1980) TRANSMISSION INTERLOCK ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

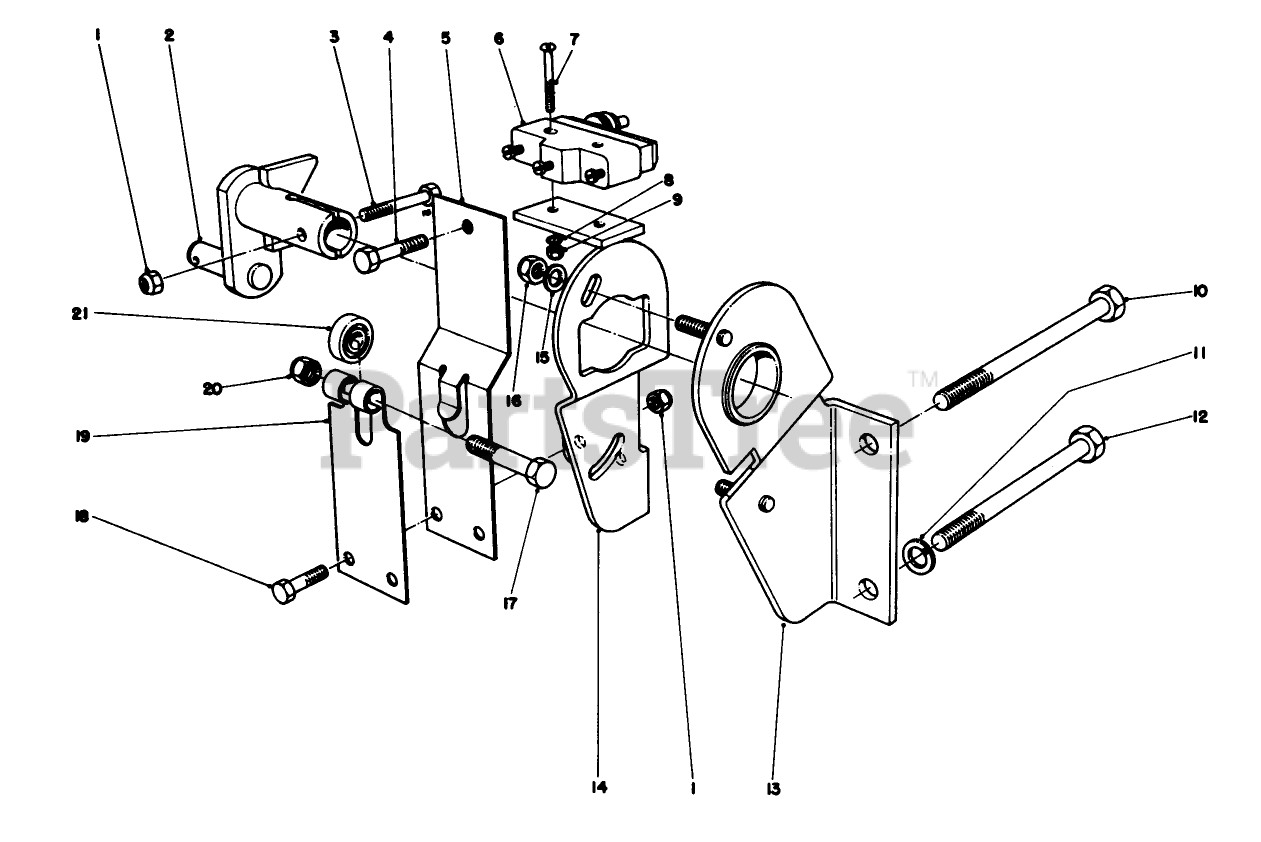

TRANSMISSION INTERLOCK ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

2

Toro 29-9790

Lever-Pump
(Superseded to 29-9790-03)

$

$

Not available

3

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

4

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro 29-6170

EXTENDED LEAF SPRING ASM

$51.99

$

Usually ships in 3-6 days

0

6

Toro 29-6160

Micro Switch
(Superseded to 29-6163)

$110.99

$

Usually ships in 3-6 days

0

7

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

8

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

10

Toro 27-9620

SCREW-HH

$22.99

$

Usually ships in 3-6 days

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

13

Toro 29-9800

MTG BRKT WA B

$240.99

$

Usually ships in 3-6 days

0

14

Toro 29-9760

PUMP PLATE WA B

$

$

Not available

15

Toro 29-9840

Washer-Thrust

$

$

Not available

16

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

17

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 29-6150

SPRING-LEAF
(Superseded to 110-9650)

$45.99

$

Usually ships in 3-6 days

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0
