30758 - Toro Brake Kit for Groundsmaster 117 (SN: 006000001 - 006999999) (1986) PEDAL ASSEMBLY Parts Diagram

Brake Kit for Groundsmaster 117

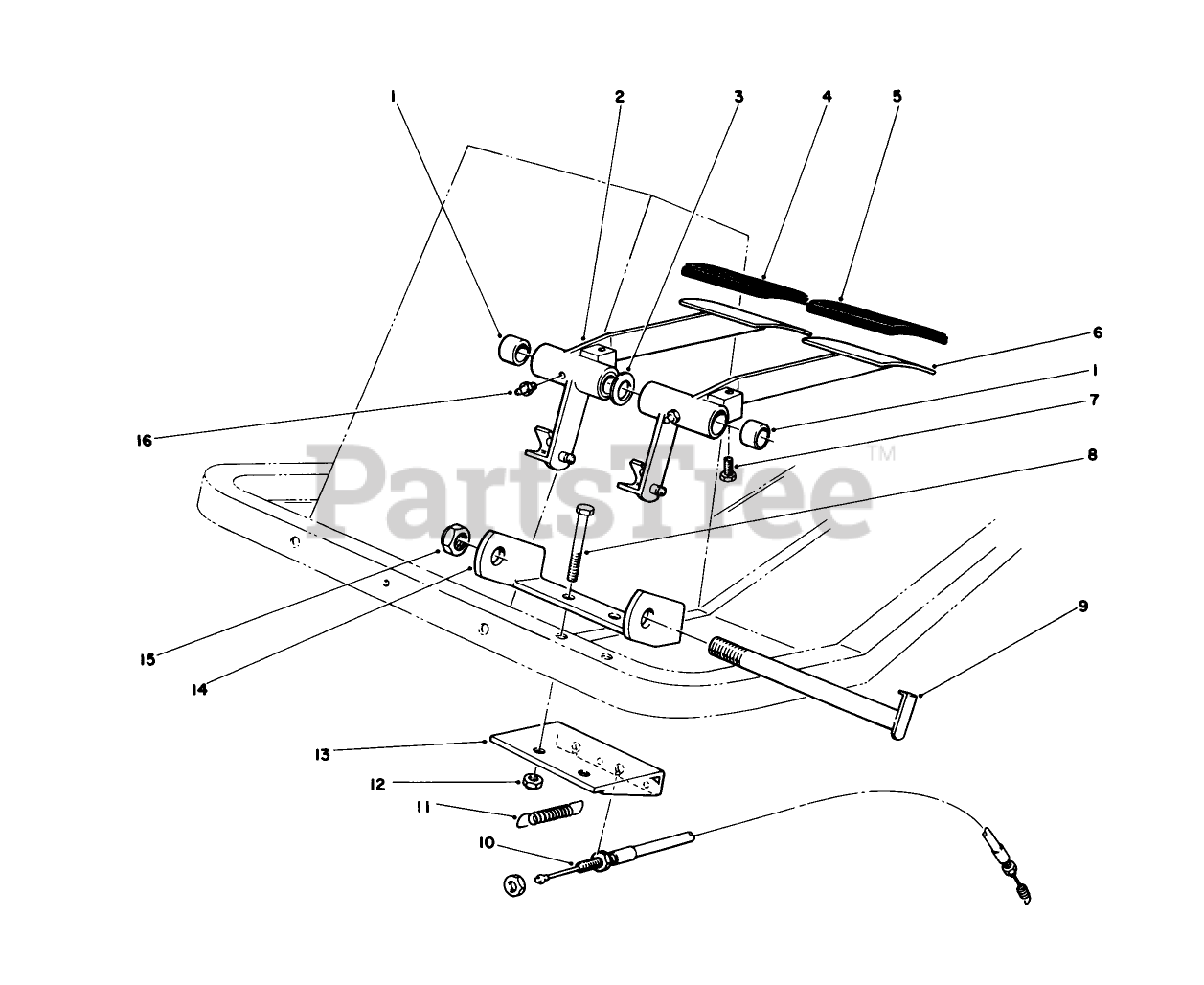

PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 256-42

BUSHING

$8.99

$

Usually ships in 3-6 days

0

2

Toro 56-3540

Brake Pedal Assembly-R.H. (Incl. Ref. #1 & 16)

$

$

Not available

3

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 27-7580

PAD-TURN, RIGHT
(Superseded to 93-8743)

$33.99

$

Usually ships in 3-6 days

0

5

Toro 27-7570

PAD-TURN, LEFT
(Superseded to 93-8743)

$33.99

$

Usually ships in 3-6 days

0

6

Toro 56-3530

Brake Pedal Assembly-L.H. (Incl. Ref. #1 & 16)

$

$

Not available

7

Toro 30-1070

BOLT 60183

$

$

Not available

8

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 56-3590

BRAKE PIN WA RO

$

$

Not available

10

Toro 56-3641

BRAKE CABLE ASM

$

$

Not available

Toro 56-3640

BRAKE CABLE ASM

Note: Not illustrated

$

$

Not available

11

Toro 56-3670

EXTENSION SPRING O

$42.99

$

Usually ships in 3-6 days

0

12

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

13

Toro 56-3610

CABLE BRKT WA R

$117.99

$

Usually ships in 3-6 days

0

14

Toro 56-3580

BRAKE PEDAL BRKT B

$

$

Not available

15

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

16

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0
