30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) STANDARD SEAT KIT MODEL NO. 30746 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

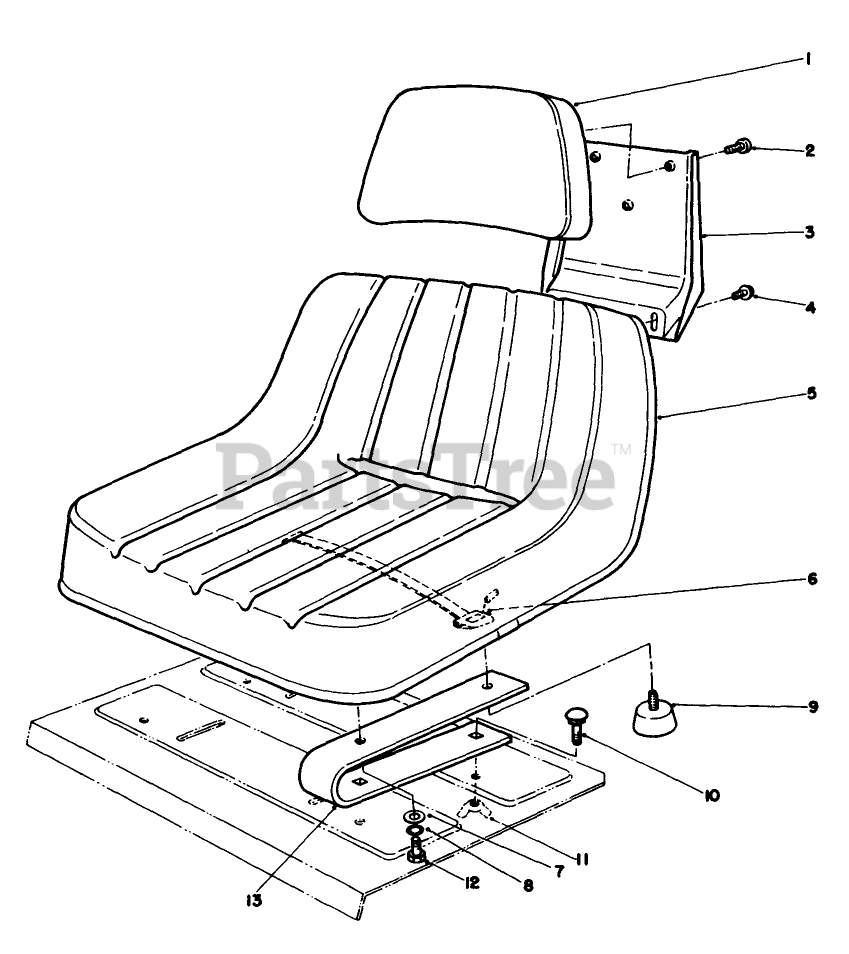

STANDARD SEAT KIT MODEL NO. 30746 (OPTIONAL) Parts Diagram

  • Title

1

Toro 66-7520

Back Rest

$

$

Not available

2

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

3

Toro 66-7530

PLATE

$

$

Not available

4

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

5

Toro 66-7510

Seat
(Superseded to 117-2453)

$

$

Not available

6

Toro 38-1420

SWITCH-SEAT

$

$

Not available

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 32534

Lockwasher

$

$

Currently unavailable

9

Toro 67-9800

RUBBER BUMPER
(Superseded to 68-3270)

$40.99

$

Usually ships in 3-6 days

0

10

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

11

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

12

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 66-7450

Spring Seat
(Superseded to 68-3280-01)

$

$

Not available

Toro 67-9490

Backrest Complete (Incl. Ref. #1-3)

$

$

Currently unavailable
