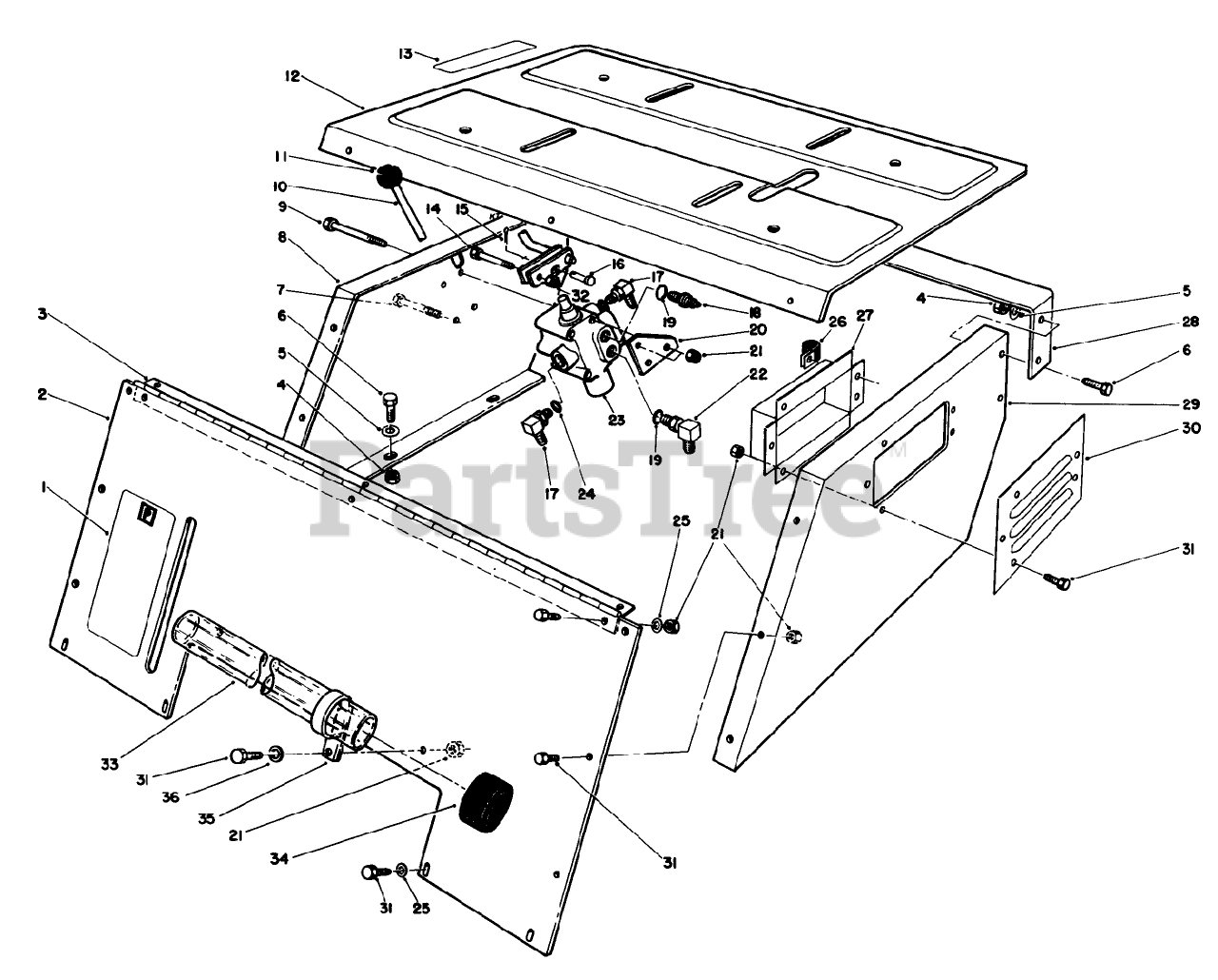

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) SEAT SUPPORT ASSEMBLY Parts Diagram

Groundsmaster Rear-Engine Riding Mower

SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 54-0920

PARK BRAKE DECAL

$

$

Not available

2

Toro 54-1430

Support-Seat, Front
(Superseded to 80-3760-01)

$

$

Not available

3

Toro 54-1310

Hinge-Seat
(Superseded to 54-1310-01)

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

8

Toro 54-1220

Support-Seat RH.
(Superseded to 54-1220-01)

$

$

Not available

9

Toro 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 54-2510

VALVE LEVER WA

$

$

Not available

11

$33.99

$

Usually ships in 3-6 days

0

12

Toro 54-1280

SEAT PLATE R

$

$

Not available

13

Toro 54-0900

LIFT CONTROL DECAL

$

$

Not available

14

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

17

Toro 353-511

FITTING-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

18

Toro 353-545

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

20

Toro 54-2540

VALVE LEVER BRKT

$

$

Not available

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 353-375

FITTING-ELBOW, 90

$57.99

$

Usually ships in 3-6 days

0

23

Toro 54-0090

VALVE ASM

$

$

Not available

24

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

25

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 2412-94

CLAMP

$3.49

$

Usually ships in 3-6 days

0

27

Toro 54-1700

AIR CHAMBER WA B

$

$

Not available

28

Toro 54-1550

Support-Hood
(Superseded to 54-1550-01)

$

$

Not available

29

Toro 54-1230

LH SEAT SUPPORT R

$

$

Not available

30

Toro 54-1790

AIR CHAMBER COVER R

$

$

Not available

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

33

$

$

Not available

34

Toro 65-5890

CAP-END

$

$

Not available

35

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

36

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
