30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) REMOTE AIR CLEANER KIT NO. 55-8460 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

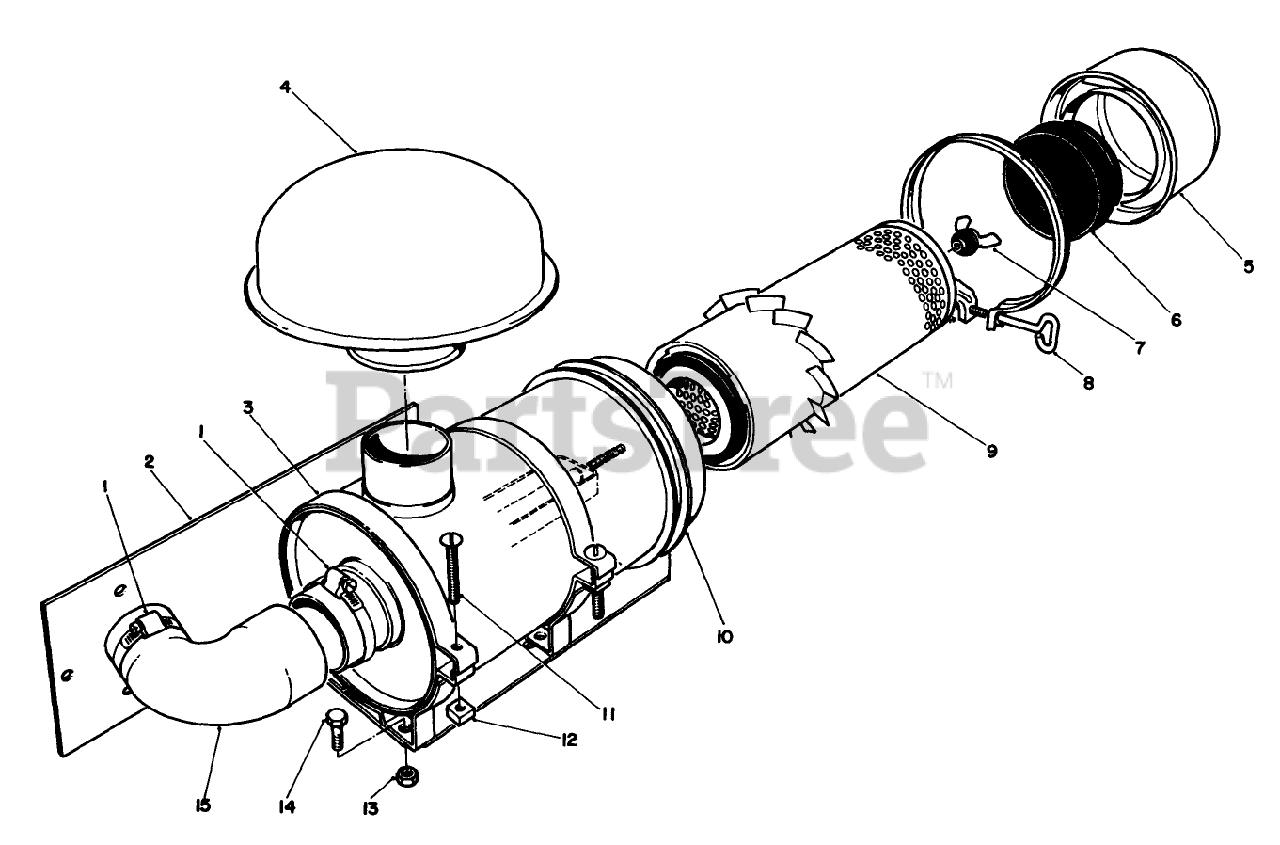

REMOTE AIR CLEANER KIT NO. 55-8460 (OPTIONAL) Parts Diagram

  • Title

1

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

2

Toro 55-4280

MTG BRACKET WA

$

$

Not available

3

Toro 33-1350

MTG BAND ASM

$

$

Not available

4

Toro 46-7510

HOOD-INLET, AIR

$109.99

$

Usually ships in 3-6 days

0

5

Toro 33-1320

CUP ASM

$

$

Not available

6

Toro 33-1310

BAFFLE

$

$

Not available

7

Toro 33-1330

NUT ASM

$

$

Not available

8

Toro 33-1340

CLAMP ASM

$

$

Not available

9

Toro 33-1300

ELEMENT ASM
(Superseded to 108-3808)

$29.99

$

Usually ships in 3-6 days

0

10

Body Assembly

$

$

Not available

11

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 32107-11

NUT-SQUARE

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

14

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

15

Toro 55-4240

REMOTE AIR CLEANER HOSE

$

$

Not available

Toro 11-4659

Air Cleaner Assembly (Incl. Ref. #3-12)
(Superseded to 46-6890)

$

$

Not available
