30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) CUTTING UNIT MODEL NO. 30768 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

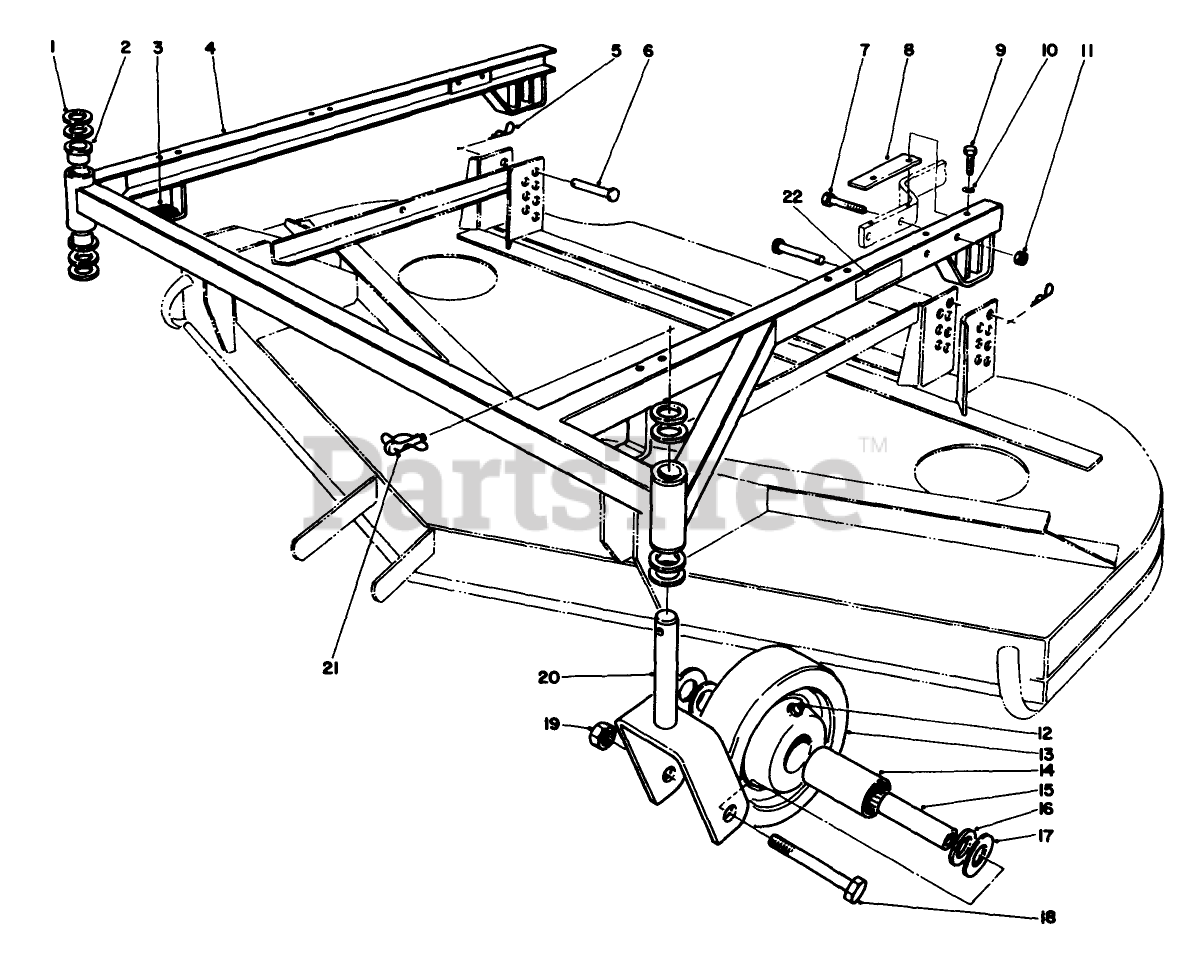

CUTTING UNIT MODEL NO. 30768 Parts Diagram

  • Title

1

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

2

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

3

Toro 54-2700

Pad-Rubber
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

4

Toro 56-5710

Suspension Frame (Incl. Ref. #2)

$

$

Not available

5

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

6

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 62-6980

SHIM-CARRIER

$

$

Not available

9

Toro 3235-21

SCREW W/PATCH

$

$

Not available

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

12

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

13

Toro 27-1190

WHEEL

$91.99

$

Usually ships in 3-6 days

0

14

Toro 27-1210

ROLLER BEARING

$

$

Not available

15

Toro 27-1200

SPANNER BUSHING

$15.99

$

In Stock, only 2 left!

0

16

Toro 27-1180

BEARING RETAINER

$

$

Not available

17

Toro 27-1170

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

18

Toro 3216-15

SCREW-HH

$

$

Not available

19

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

20

Toro 40-0370

FORK-Castor
(Superseded to 40-0370-01)

$117.99

$

In Stock, only 1 left!

0

21

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

22

Toro 68-8360

DECAL-HOC, LH

$28.99

$

Usually ships in 3-6 days

0

Toro 27-1050

Wheel Assembly (Incl. Ref. #12-17)

$139.99

$

Usually ships in 3-6 days

0

Toro 12-1519

WHEEL

$

$

Not available
