30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1989) 44" SNOWTHROWER MODEL NO. 30761 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

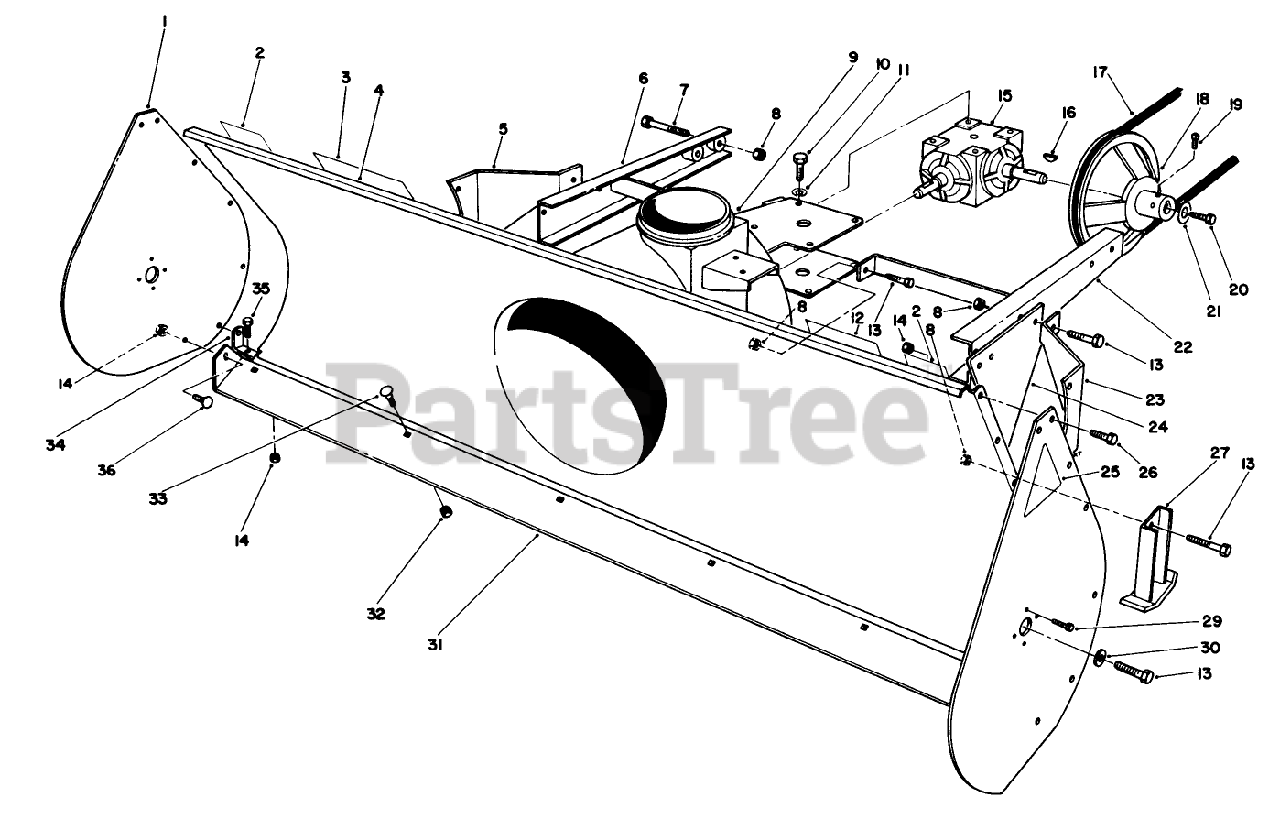

44" SNOWTHROWER MODEL NO. 30761 (OPTIONAL) Parts Diagram

  • Title
1

Toro 57-3510

Plate-Side
(Superseded to 57-3510-01)

$

$

Not available

2

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

3

Toro 61-8510

Decal-Warning
(Superseded to 92-8652)

$

$

Not available

4

Toro 57-3390

HOUSING WA R

$

$

Not available

5

Toro 57-3570

RH EXTENSION PLT R

$

$

Not available

6

Toro 57-3710

RH EXT BAR WA R

$

$

Not available

7

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

9

Toro 25-5170

CHUTE RING

$

$

Not available

10

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

11

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

12

Toro 61-8490

Decal-Rear Weight
(Superseded to 92-8019)

$

$

Not available

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

15

Toro 61-8650

GEARBOX

$3400.99

$

Usually ships in 3-6 days

0

16

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 7

0

17

Toro 57-3650

V-BELT

$67.99

$

Usually ships in 3-6 days

0

18

Toro 57-3640

DRIVE PULLEY

$

$

Not available

19

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

20

Toro 30-1070

BOLT 60183

$

$

Not available

21

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

22

Toro 57-3520

LH EXT BAR WA R

$

$

Not available

23

Toro 57-3560

LH EXTENSION PLT R

$

$

Not available

24

Toro 57-3550

SKID MTG PLT R

$

$

Not available

25

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

26

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 57-3580

SKID WA R
(Superseded to 57-3580-01)

$

$

Not available

29

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

31

Toro 57-3470

Blade-Scraper
(Superseded to 99-2303-01)

$182.99

$

Usually ships in 3-6 days

0

32

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

33

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

34

Toro 57-9890

BLADE SUPPORT BRKT R
(Superseded to 99-2304-03)

$33.99

$

Usually ships in 3-6 days

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
