30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) Fuel Pump Kohler Engine Model No. Kt17qs Type No. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

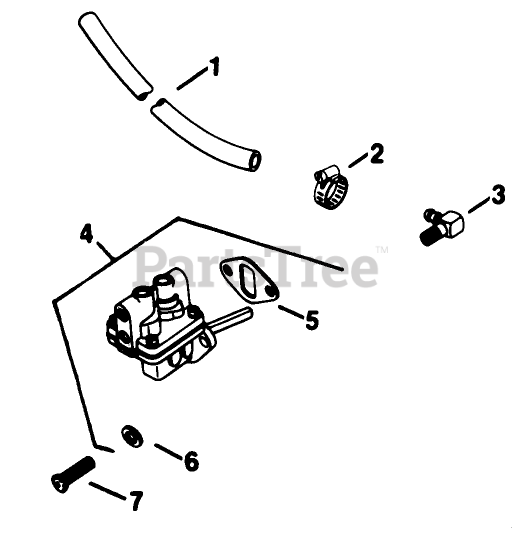

Fuel Pump Kohler Engine Model No. Kt17qs Type No. 24324 Parts Diagram

  • Title

$

$

Currently unavailable

2

Toro X-426-9

Clamp

$

$

Currently unavailable

3

Toro 25_155_02

Connector-90?

$

$

Currently unavailable

4

Toro 52_559_01

Pump-Fuel (Incl. Ref. #4 5)

$

$

Currently unavailable

5

Toro 52_041_17

Gasket-Fuel Pump

$

$

Currently unavailable

6

Toro X-25-63

Washer

$

$

Currently unavailable

7

Toro 47_086_08

Screw-T.H.

$

$

Currently unavailable
