30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) Front Wheel Assembly Parts Diagram

Groundsmaster Rear-Engine Riding Mower

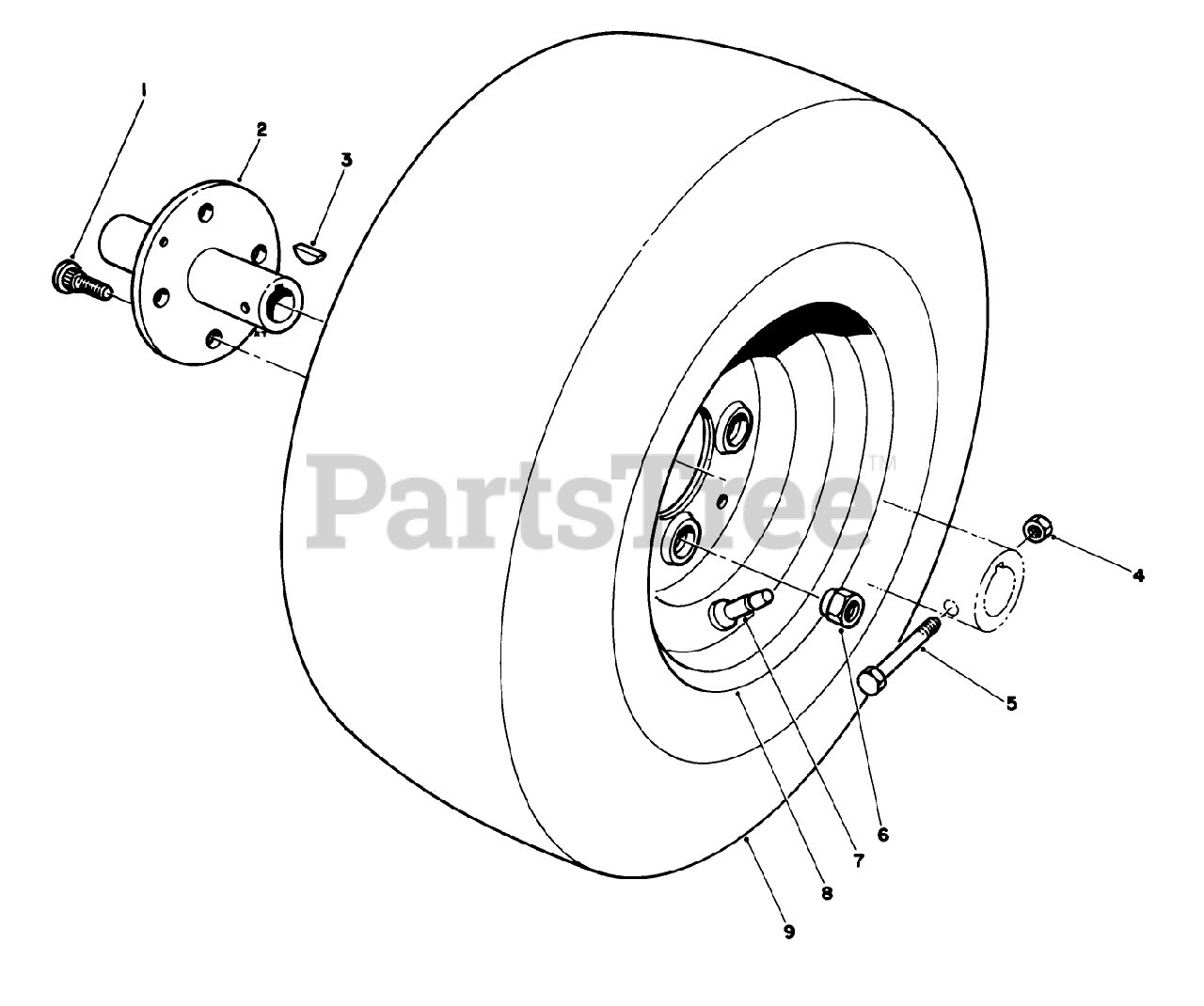

Front Wheel Assembly Parts Diagram

  • Title

1

Toro 242-71

1/2-20X1.25 BOLT

$21.99

$

Usually ships in 3-6 days

0

2

Toro 54-0140

WHEEL HUB

$495.99

$

Usually ships in 3-6 days

0

3

Toro 3257-10

KEY-WOODRUFF

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

6

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

8

Toro 242-76

RIM

$219.99

$

Usually ships in 3-6 days

0

9

Toro 231-122

TIRE-4-PLY

$129.99

$

Usually ships in 3-6 days

0
