30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) 44" Snow Thrower Model No. 30761 (optional) (continued) 4 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

44" Snow Thrower Model No. 30761 (optional) (continued) 4 Parts Diagram

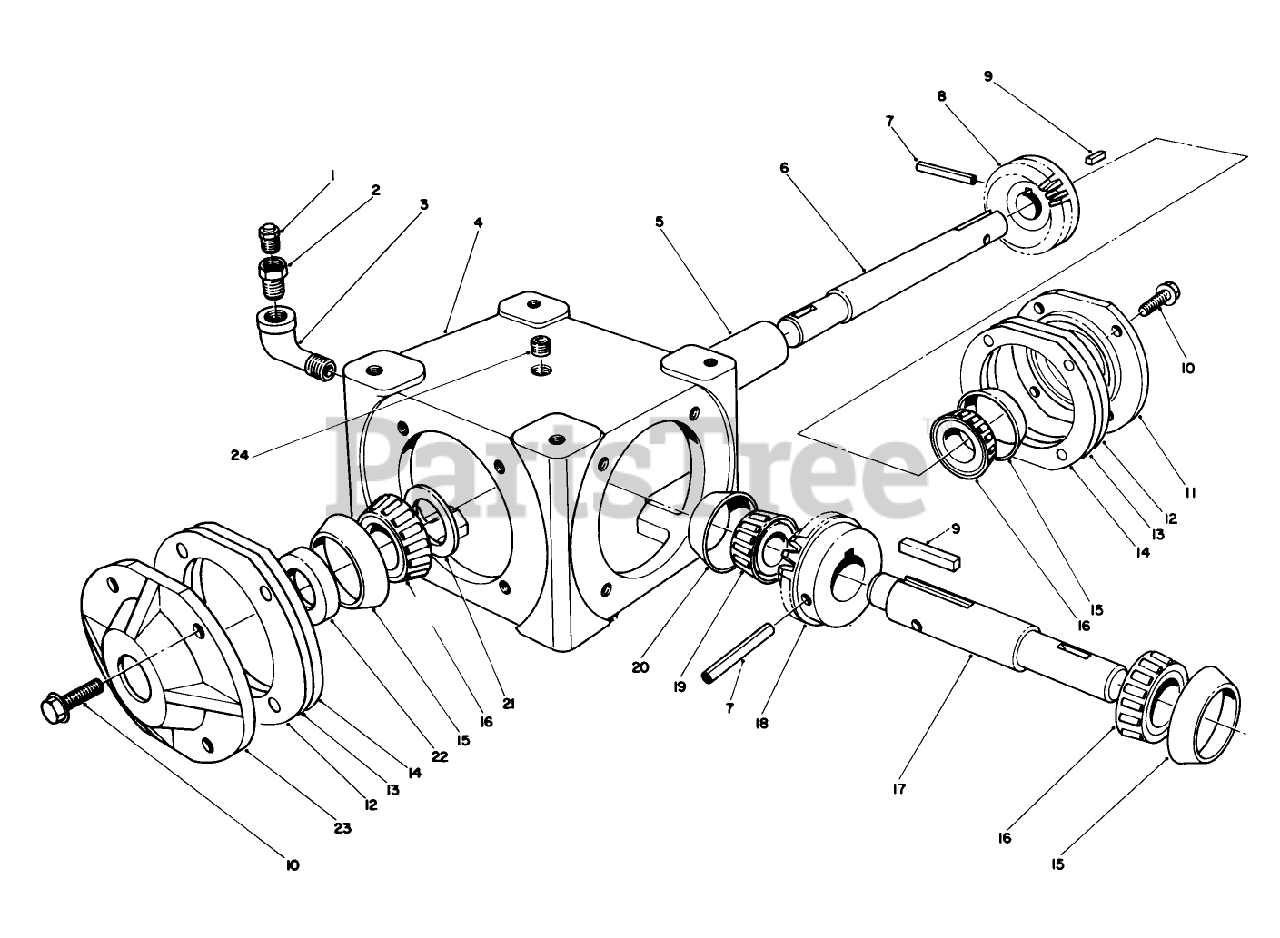

  • Title

1

Toro 62-3520

See Supercession: 302-34
(Superseded to 302-34)

$11.99

$

Usually ships in 3-6 days

0

2

Toro 62-3550

BUSHING

$

$

Not available

3

Toro 62-3540

DISCONTINUED

$

$

Not available

4

Toro 62-3300

See Supercession: 98-1340
(Superseded to 98-1340)

$

$

Not available

5

Toro 62-3480

SPACER

$

$

Not available

6

Toro 62-3460

SHAFT

$

$

Not available

7

Toro 62-3510

PIN

$

$

Not available

8

Toro 62-3500

GEAR

$

$

Not available

9

Toro 62-3380

See Supercession: 10-7070
(Superseded to 10-7070)

$1.49

$

In Stock, Qty 8

0

10

Toro 62-3310

See Supercession: 3234-5
(Superseded to 323-45)

$4.49

$

In Stock, only 1 left!

0

11

Toro 62-3320

DISCONTINUED-SEE SB GEN #14-01

$

$

Not available

12

Toro 62-3420

GASKET

$13.99

$

In Stock, only 2 left!

0

13

Toro 62-3430

GASKET

$7.49

$

Usually ships in 3-6 days

0

14

Toro 62-3440

DISCONTINUED

$

$

Not available

15

Toro 62-3340

See Supercession: 254-72
(Superseded to 254-72)

$10.99

$

In Stock, Qty 11

0

16

Toro 62-3330

See Supercession: 254-94
(Superseded to 254-94)

$9.49

$

In Stock, Qty 18

0

17

Toro 62-3390

SHAFT

$

$

Not available

18

Toro 62-3350

GEAR

$

$

Not available

19

Toro 62-3370

See Supercession: 254-68
(Superseded to 254-68)

$33.99

$

In Stock, only 2 left!

0

20

Toro 62-3360

See Supercession: 254-67
(Superseded to 254-67)

$16.99

$

In Stock, only 2 left!

0

21

Toro 62-3470

WASHER

$

$

Not available

22

Toro 62-3400

See Supercession: 253-118
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

23

Toro 62-3410

DISCONTINUED

$

$

Not available

24

Toro 62-3490

See Supercession: 281-10
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0
