30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) GRASS COLLECTION SYSTEM MODEL NO. 30751 (OPTIONAL) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

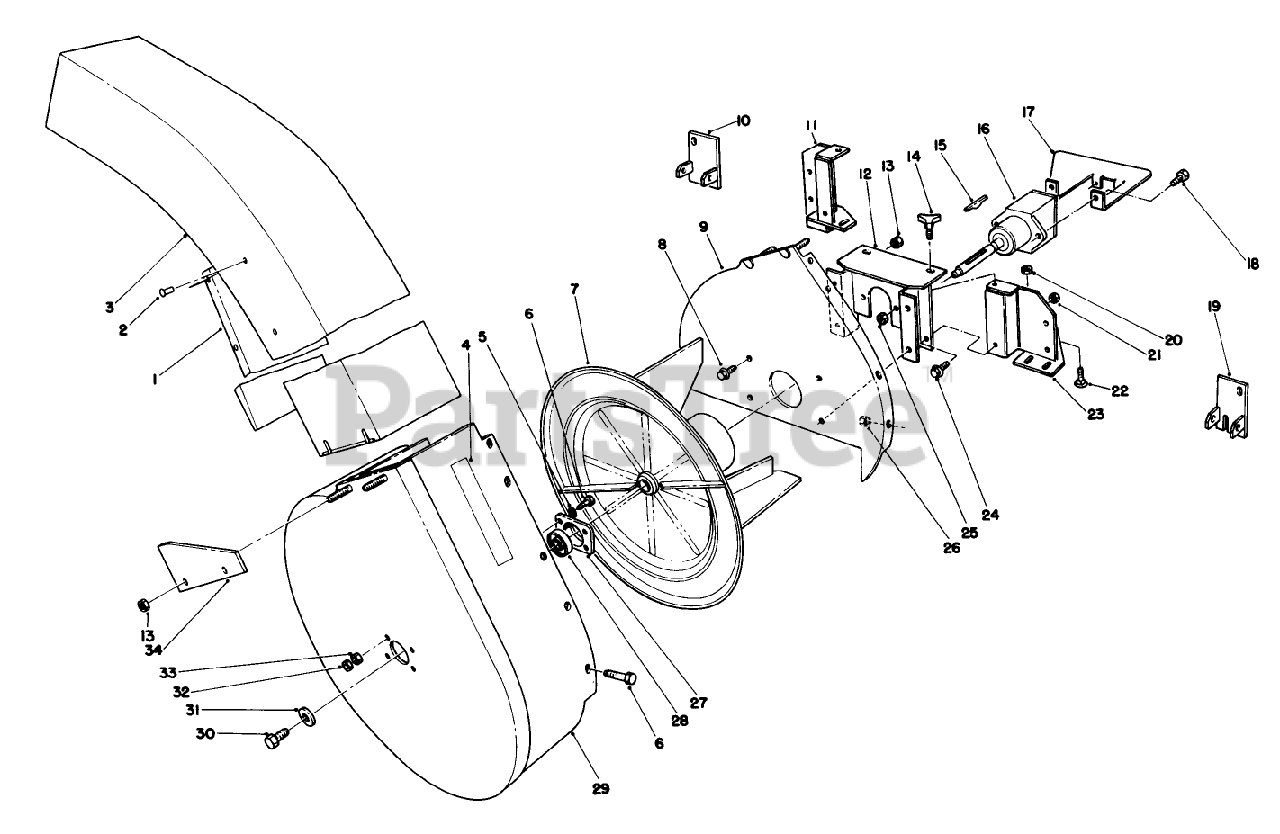

GRASS COLLECTION SYSTEM MODEL NO. 30751 (OPTIONAL) Parts Diagram

  • Title
1

Toro 56-4630

Deflector
(Superseded to 56-4630-03)

$

$

Not available

2

$0.99

$

Usually ships in 3-6 days

0

3

Toro 56-5220

Chute Assy. (Incl. Ref. #1 & 2)

$

$

Not available

4

Toro 43-1110

Decal-Waming
(Superseded to 82-5510)

$8.49

$

Usually ships in 3-6 days

0

5

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 56-4780

Impeller
(Superseded to 56-4780-03)

$1065.99

$

Usually ships in 3-6 days

0

8

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

9

Toro 56-4760

Mounting Plate
(Superseded to 56-4760-03)

$

$

Not available

10

Toro 59-4980

Bracket-Deflector L.H.
(Superseded to 74-0910-03)

$71.99

$

Usually ships in 3-6 days

0

11

Toro 62-4360

L/H BLOWER MT/NUT ASM

$

$

Not available

12

Toro 62-4430

Blower Mount
(Superseded to 62-4430-03)

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

14

$7.99

$

In Stock, only 1 left!

0

15

$9.49

$

In Stock, only 1 left!

0

16

Toro 53-4530

Asm-Gear Box
(Superseded to 53-4530-03)

$1908.99

$

Usually ships in 3-6 days

0

17

Toro 56-5260

Cover-Gear Box
(Superseded to 56-5260-03)

$

$

Not available

18

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 59-5000

Bracket-Deflector R.H.
(Superseded to 74-0910-03)

$71.99

$

Usually ships in 3-6 days

0

20

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 9

0

21

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

22

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

23

Toro 56-5040

RH BLWR MT BRKT WA

$

$

Not available

24

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

25

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 2 left!

0

28

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

29

Toro 12-1649

Blower Housing

$

$

Not available

30

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

31

Toro 43-0940

SPACER

$5.49

$

In Stock, Qty 20+

0

32

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

33

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

34

Toro 43-0960

Bracket
(Superseded to 43-0960-03)

$20.99

$

Usually ships in 3-6 days

0
