30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) FUEL PUMP-KOHLER ENGINE MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

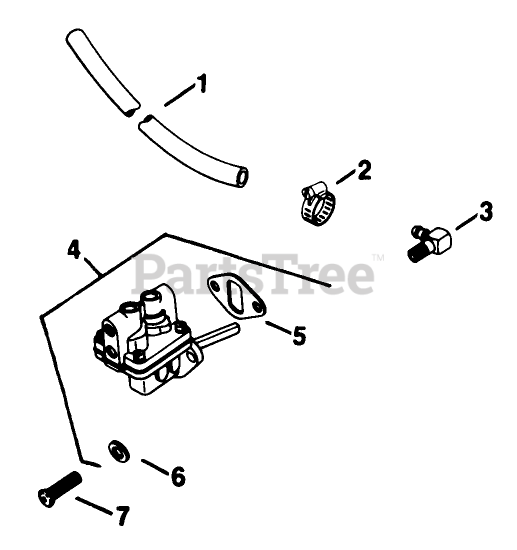

FUEL PUMP-KOHLER ENGINE MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title

$

$

Currently unavailable

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

3

Toro 25_155_02

Connector-90deg.

$

$

Currently unavailable

4

Toro 52_559_01

Pump-Fuel

$

$

Currently unavailable

5

Toro 52_041_17

Gasket-Fuel Pump

$

$

Currently unavailable

6

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

7

Toro 47_086_08

Screw-T.H.

$

$

Currently unavailable
