30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Remote Air Cleaner Kit No. 55-8460 (optional) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

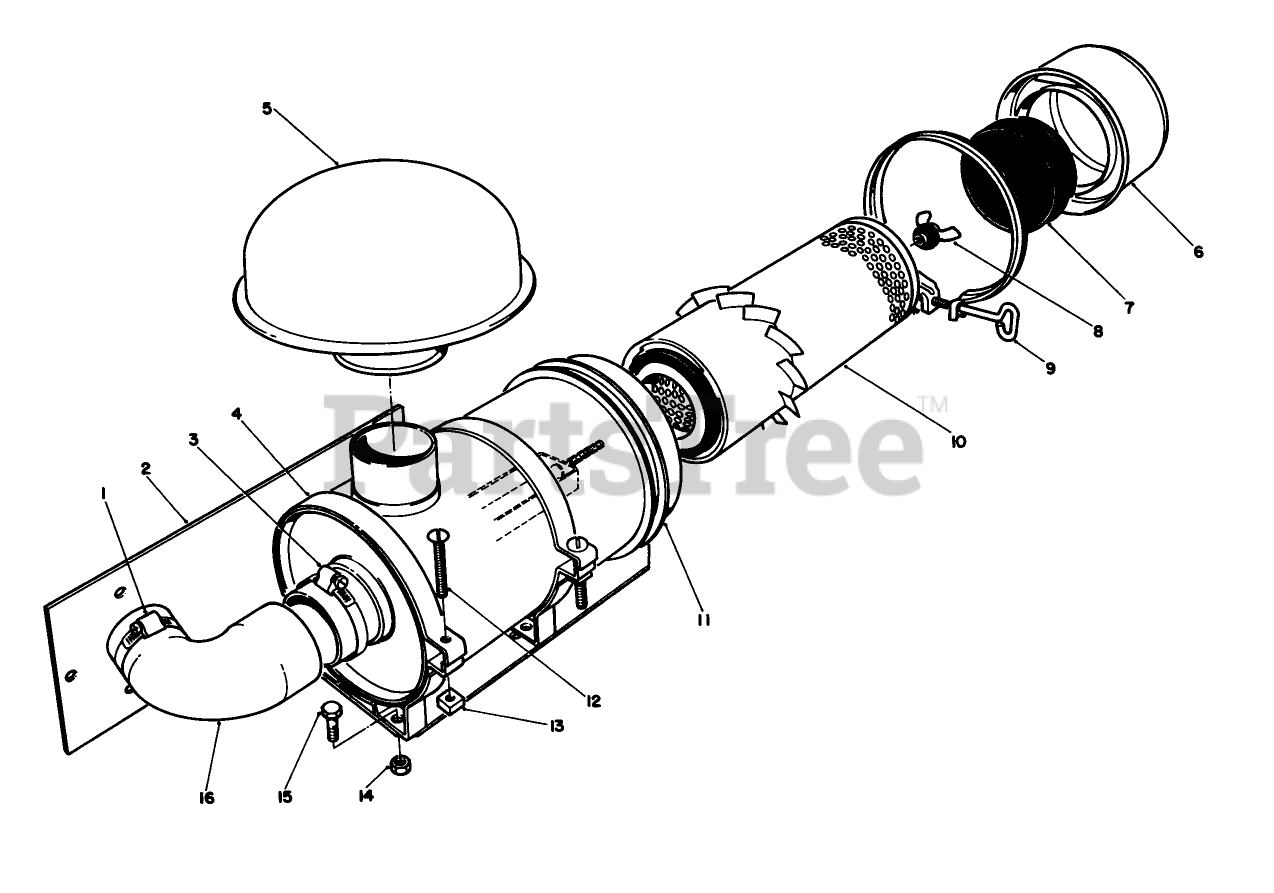

Remote Air Cleaner Kit No. 55-8460 (optional) Parts Diagram

  • Title
1

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

2

Toro 55-4280

BRACKET-MOUNTING

$

$

Not available

3

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

4

Toro 33-1350

MOUNTING BAND ASM

$

$

Not available

5

Toro 46-7510

HOOD-INLET, AIR

$109.99

$

Usually ships in 3-6 days

0

6

Toro 33-1320

DISCONTINUED

$

$

Not available

7

Toro 33-1310

DISCONTINUED

$

$

Not available

8

Toro 33-1330

DISCONTINUED

$

$

Not available

9

Toro 33-1340

DISCONTINUED

$

$

Not available

10

Toro 33-1300

See Supercession: 108-3808
(Superseded to 108-3808)

$29.99

$

Usually ships in 3-6 days

0

11

Body Assembly

$

$

Not available

12

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

13

Toro 32107-11

NUT-SQUARE

$

$

Not available

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

16

Toro 55-4240

HOSE-REMOTE, AIR CLEANER

$

$

Not available

Toro 11-4659

See Supercession: 46-6890
(Superseded to 46-6890)

$

$

Not available
