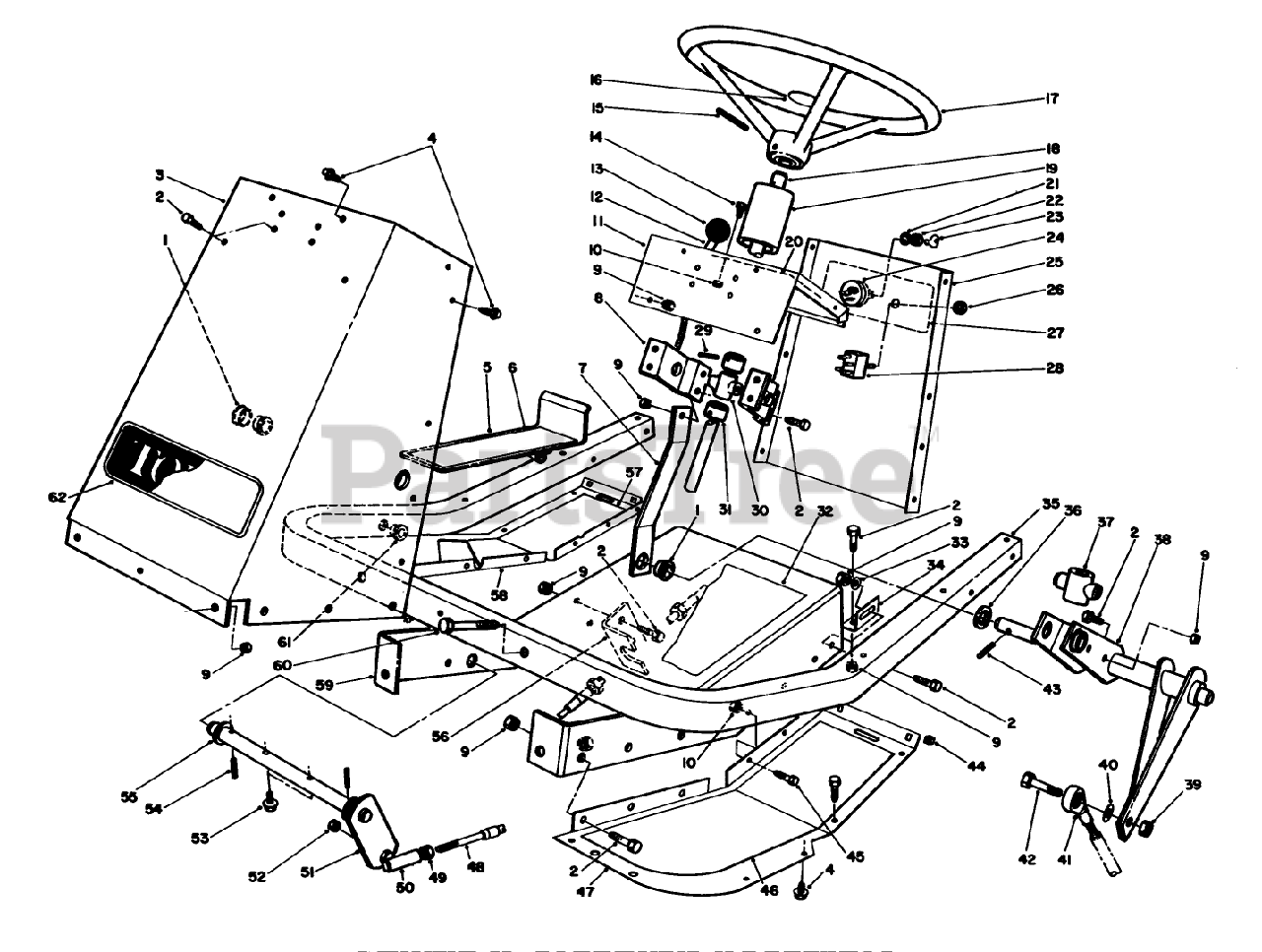

30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Frame Steering Assembly Parts Diagram

Groundsmaster Rear-Engine Riding Mower

Frame Steering Assembly Parts Diagram

  • Title
1

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 54-1900

See Supercession: 54-1900-01
(Superseded to 54-1900-01)

$

$

Not available

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 10

0

5

Toro 54-2190

DISCONTINUED

$

$

Not available

6

Toro 54-2280

DISCONTINUED

$

$

Not available

7

Toro 54-1340

See Supercession: 54-1340-03
(Superseded to 54-1340-03)

$54.99

$

Usually ships in 3-6 days

0

8

Toro 54-1950

BRG SUPT BRKT

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 54-1000

See Supercession: 54-1000-01
(Superseded to 54-1000-01)

$

$

Not available

12

Toro 54-1450

CONTROL-CHOKE,THROTTLE

$

$

Not available

13

$9.49

$

Usually ships in 3-6 days

0

14

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

15

Toro 32121-10

PIN-ROLL

$7.49

$

Usually ships in 3-6 days

0

16

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

17

Toro 25-6260

DISCONTINUED
(Superseded to 9547)

$6.49

$

Usually ships in 3-6 days

0

18

Toro 54-1420

See Supercession: 62-6780
(Superseded to 62-6780)

$395.99

$

Usually ships in 3-6 days

0

19

Toro 47-1980

STRG. SHAFT COVER

$42.99

$

Usually ships in 3-6 days

0

20

Toro 54-0860

THROTTLE DECAL

$

$

Not available

21

Toro 218-447

WASHER-LOCK

$5.49

$

Usually ships in 3-6 days

0

22

Toro 218-446

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

23

Toro 218-412

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

24

Toro 27-2360

SWITCH

$47.99

$

In Stock, only 1 left!

0

25

Toro 54-1960

DISCONTINUED

$

$

Not available

26

Toro 218-500

See Supercession: 3218-19
(Superseded to 3218-19)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 54-0870

DISCONTINUED

$

$

Not available

28

Toro 37-2610

DISCONTINUED
(Superseded to 92-6328)

$

$

Not available

29

Toro 32121-31

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

30

Toro 37-1100

DISCONTINUED

$

$

Not available

31

Toro 28-3940

STRG SHAFT COLLAR

$60.99

$

Usually ships in 3-6 days

0

32

Toro 54-0880

DISCONTINUED

$

$

Not available

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 54-1440

TUNNEL BRKT

$16.99

$

Usually ships in 3-6 days

0

35

Toro 54-1460

DISCONTINUED

$

$

Not available

36

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

37

Toro 54-2630

STEER.SHAFT FOLLOWER

$

$

Not available

38

Toro 54-2040

DISCONTINUED
(Superseded to 54-2040-03)

$

$

Not available

39

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

40

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

41

Toro 251-304

BALL JOINT LH

$87.99

$

Usually ships in 3-6 days

0

42

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

43

Toro 32121-77

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

44

Toro 32115-5

NUT-RETAINED

$6.49

$

Usually ships in 3-6 days

0

45

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 54-2260

DISCONTINUED

$

$

Not available

47

Toro 54-1470

See Supercession: 54-1470-01
(Superseded to 54-1470-01)

$

$

Not available

48

Toro 54-2640

DISCONTINUED

$

$

Not available

49

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

50

Toro 2411-34

JOINT-BALL

$30.99

$

Usually ships in 3-6 days

0

51

Toro 54-2460

DISCONTINUED

$

$

Not available

52

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

53

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

54

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

55

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

56

Toro 54-1770

DISCONTINUED

$

$

Not available

57

Toro 54-2270

FOOT REST PAD RH

$

$

Not available

58

Toro 54-1480

DISCONTINUED

$

$

Not available

59

Toro 54-1510

DISCONTINUED

$

$

Not available

60

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

61

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

62

Toro 43-5120

See Supercession: 62-7400
(Superseded to 62-7400)

$26.99

$

Usually ships in 3-6 days

0
